DAILY MCA2014 4x4 ‒ BODYBUILDER INSTRUCTIONS
ELECTRONIC SUB-SYSTEMS
5.4 ELECTRICAL SYSTEM: CURRENT INTERVENTIONS AND DRAWS
47
– Printed 603.95.994 – 1 Ed. - Base 05/2015
230824

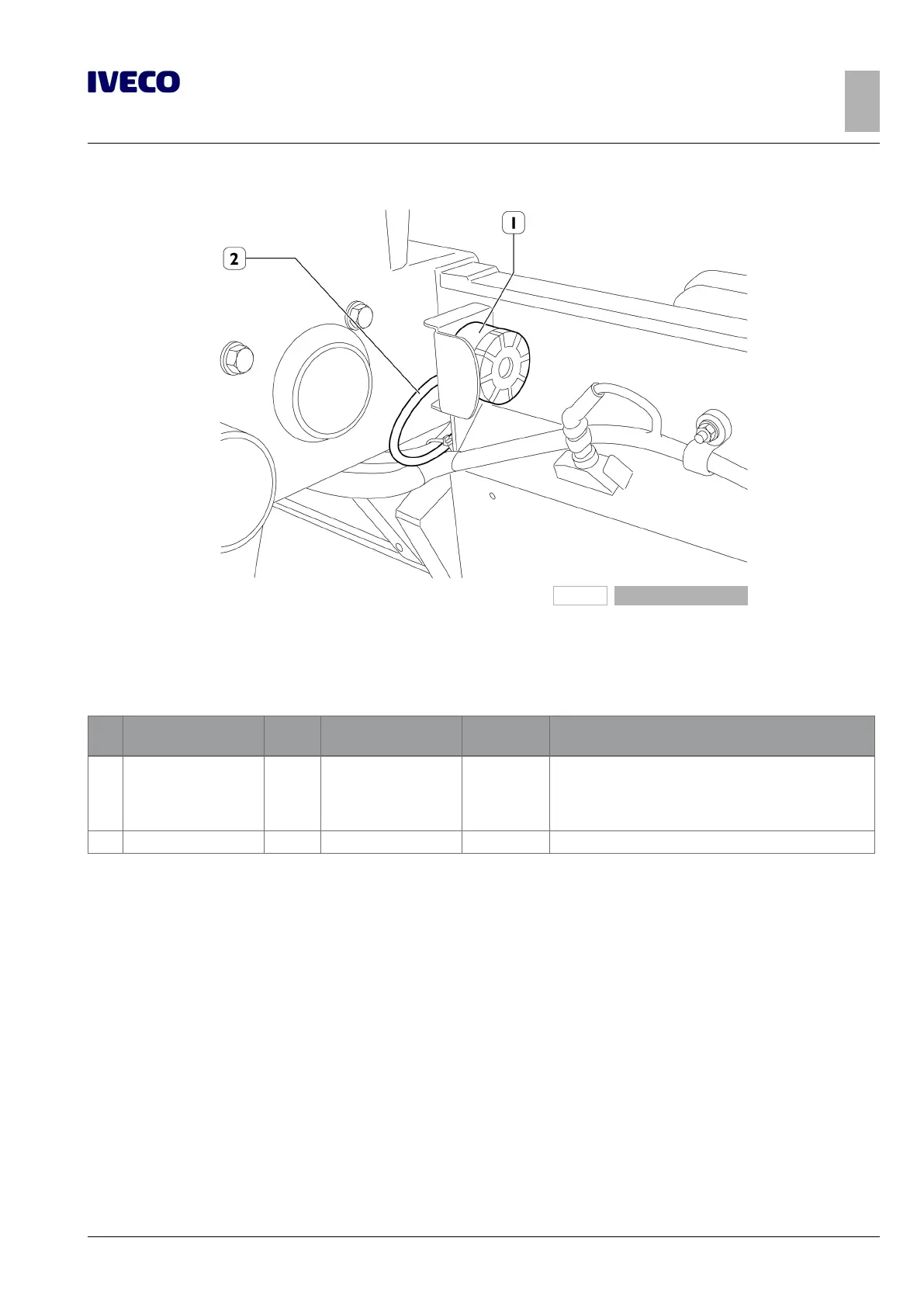

Figure 46
1. Reverse buzzer 2. Reverse gear signal cable
This device is operated by a two terminal connector with safety cap.
Table 5.14 - Connector for reverse gear signal
Pin Description
Cable
code
Max. current [mA]
Connected
to
Remarks
1 Reverse 2226 100
(1)
BCM/F01
Signal logic: in parallel with the reversing lights
+12 V = reverse gear engaged
no signal = reverse gear not engaged
Add a protection diode
2 Ground 0000 100 Ground for reverse gear
(1)
With reverse gear warning sound indicator IVECO (opt. 7638) the maximum current is limited to 70 mA.
Antitheft system
In combination with the central locking, the vehicle can be equipped with an alarm system controlled by the Body Computer and a
peripheral system.
This system consists of:
● a key with remote control, buttons for distance locking/unlocking;
● actuators for closing the cab doors and sliding side doors in the case of a van;
● open door sensors and engine bonnet opening perimeter sensor (Figure 48 left);
● alarm siren (12 V) (Figure 48 right).
The antitheft current absorption is 30-40 mA.
The body builder must provide a "closed door" signal so that the antitheft system can also detect engine bonnet break-ins.
