DAILY MCA2014 4x4 ‒ BODYBUILDER INSTRUCTIONS
ELECTRONIC SUB-SYSTEMS
5.4 ELECTRICAL SYSTEM: CURRENT INTERVENTIONS AND DRAWS
– Printed 603.95.994 – 1 Ed. - Base 05/2015
208227

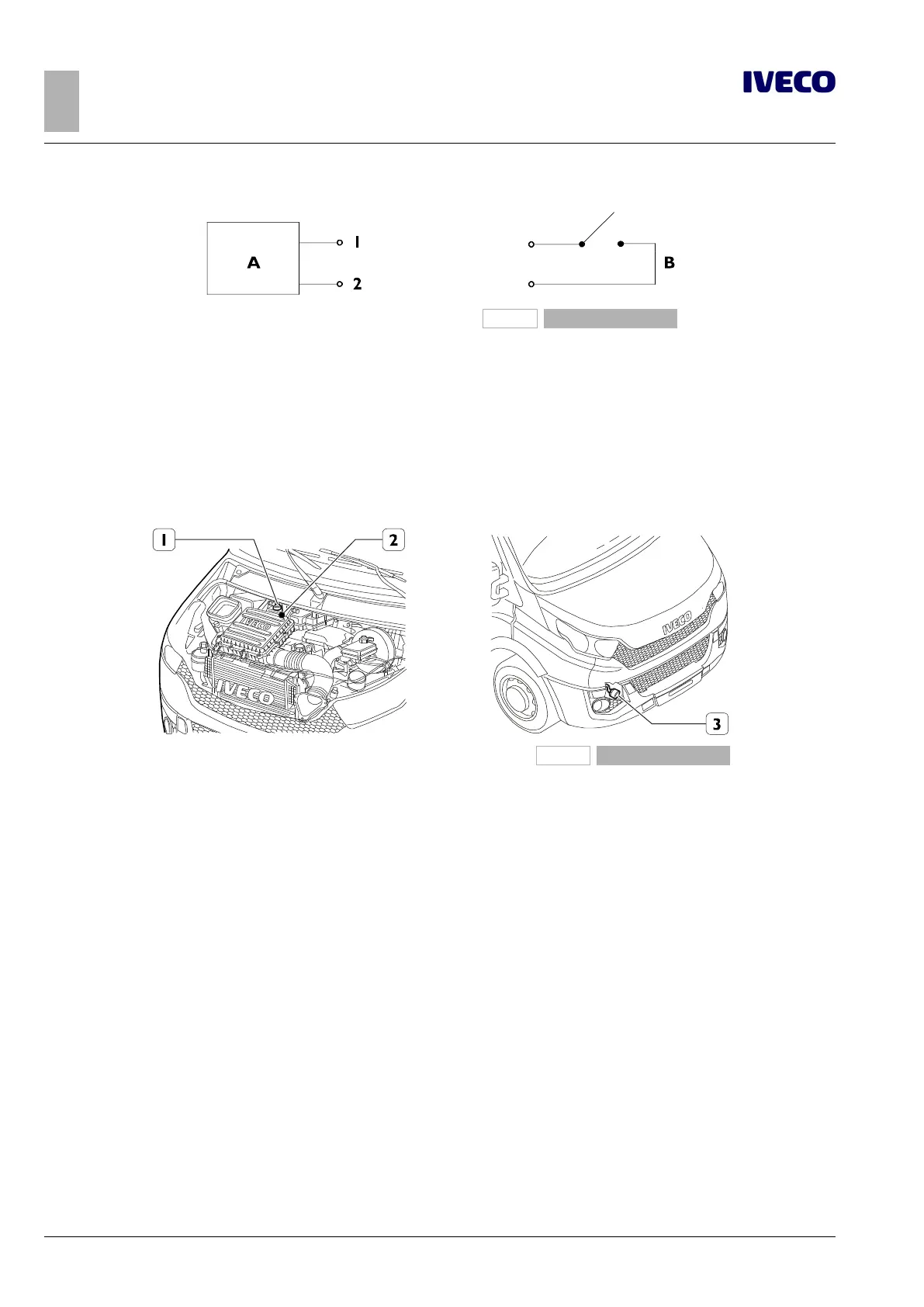

Figure 47
Engine bonnet button connection diagram
(2)
A. Engine bonnet socket
B. Body builder button switch
1. Pin 1: door closed signal
2. Pin 2: door closed signal
(2)
Only for versions with reduced cowl, cowl, reduced cowl for camper with opt 5865
Open circuit → when the door is closed
Closed circuit → when the door is open
208229
Figure 48
1. Bonnet open sensor
2. Engine bonnet socket
3. Alarm siren
For the operation mode refer to the Use and Maintenance Manual.
