DAILY MCA2014 4x4 ‒ BODYBUILDER INSTRUCTIONS
ELECTRONIC SUB-SYSTEMS
5.2 BODYBUILDER CONNECTORS
– Printed 603.95.994 – 1 Ed. - Base 05/2015

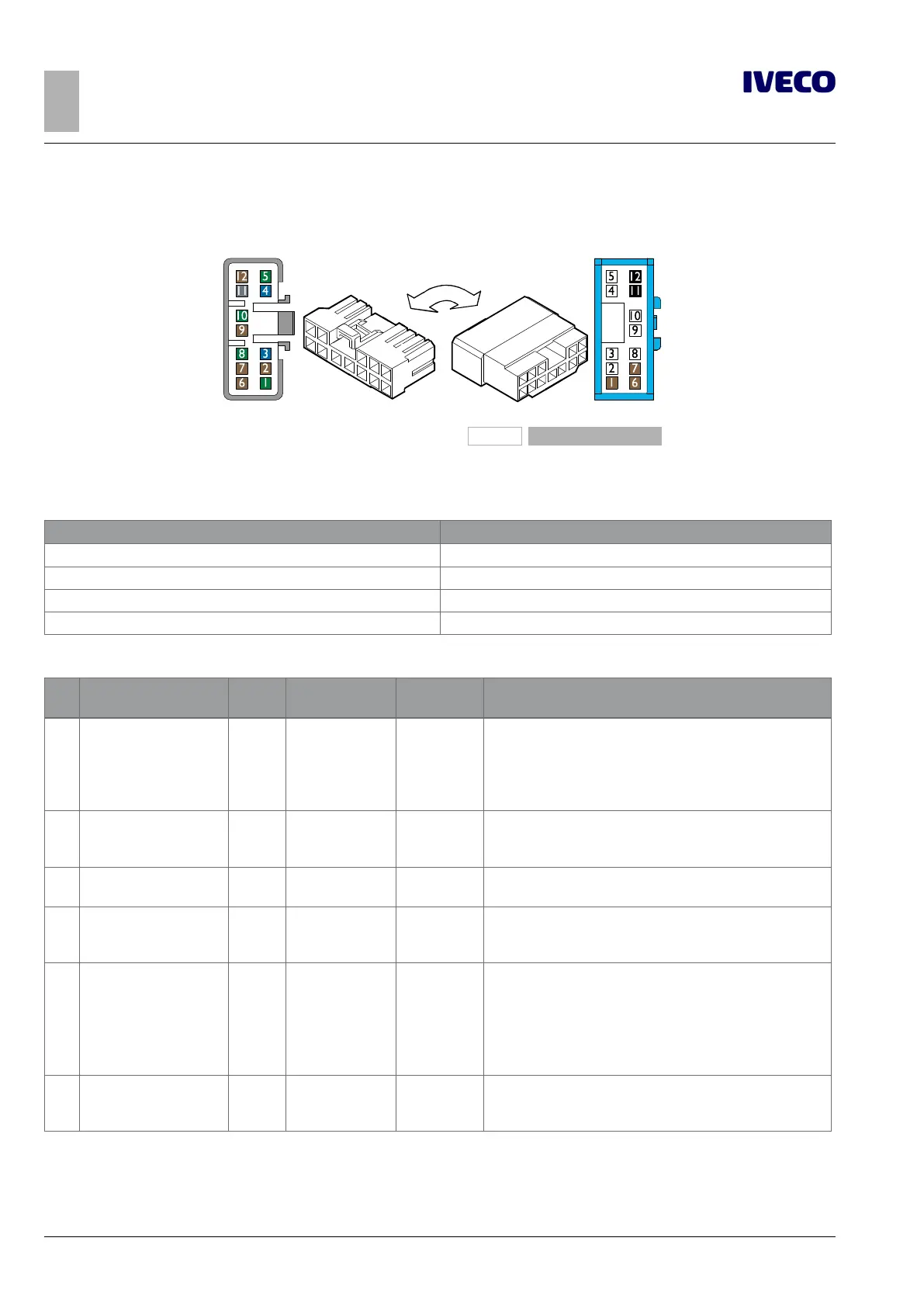

Connector 72075A, black, 12-pin
101554
Figure 9
Existing part on vehicle (male) Counterpart to be coupled (female)
Table 5.3
Code Description
500314814 EZ 12 way male connector
500314820 EZ Male contact for 0.35 to 0.5 mm² cable
500314825 EZ Male contact for 0.75 to 1.5 mm² cable
1/05907/44 EZ Male contact for 2.5 mm² cable
Table 5.4 - Basic functions of the 12-pin connector 72075A
Pin Description
Cable
code
Signal
Connected
to
Remarks
1 2nd Speed limiter 0000
Input
Max 10 mA
BCM H/41
Activation of 2nd speed limiter (30 km/h by default)
(1)
Minimum value 10 km/h, which may be set by the Assistance Ser-
vice
Ground = 2nd speed limiter activated
Open wire = no action
2
Programmable speed
limiter;
9968
Input
Max 10 mA
EDC K/22
Activation of programmable speed limiter
Ground = programmable speed limiter activated
Open wire = no action
3
Ground for Multiple State
Switch
0000 (...) BCM H/38
Ground for EDC
(2)
Multiple State Switch pin 8
4 Speed signal (B7) 5517 BCM D/56
Obligatory insertion of a 5k pull-up resistor
(3)
Use signal K15 of 61071A/pin 11
Pulse signal, see B7 tachograph signal description
5 K15 Remote 8879
Input
Max 500 mA
BCM G/02
By providing a positive, the first turn of the key is simulated (key
set to ON). Only the main loads are powered but it is not possible
to start the vehicle from outside since the vehicle key recognition is
missing.
(4)
+12 V = activation of K15 Remote
Open wire = no action
6
Signal of PTO 1 in
operation
6993 EM X3/08
PTO 1 feedback
Ground = PTO 1 engaged
Open circuit = PTO 1 not engaged
