Iveco DAILY 4x4 Body Builder Instructions

DAILY MCA2014 4x4 ‒ BODYBUILDER INSTRUCTIONS
ELECTRONIC SUB-SYSTEMS
5.2 BODYBUILDER CONNECTORS
11
– Printed 603.95.994 – 1 Ed. - Base 05/2015
208225

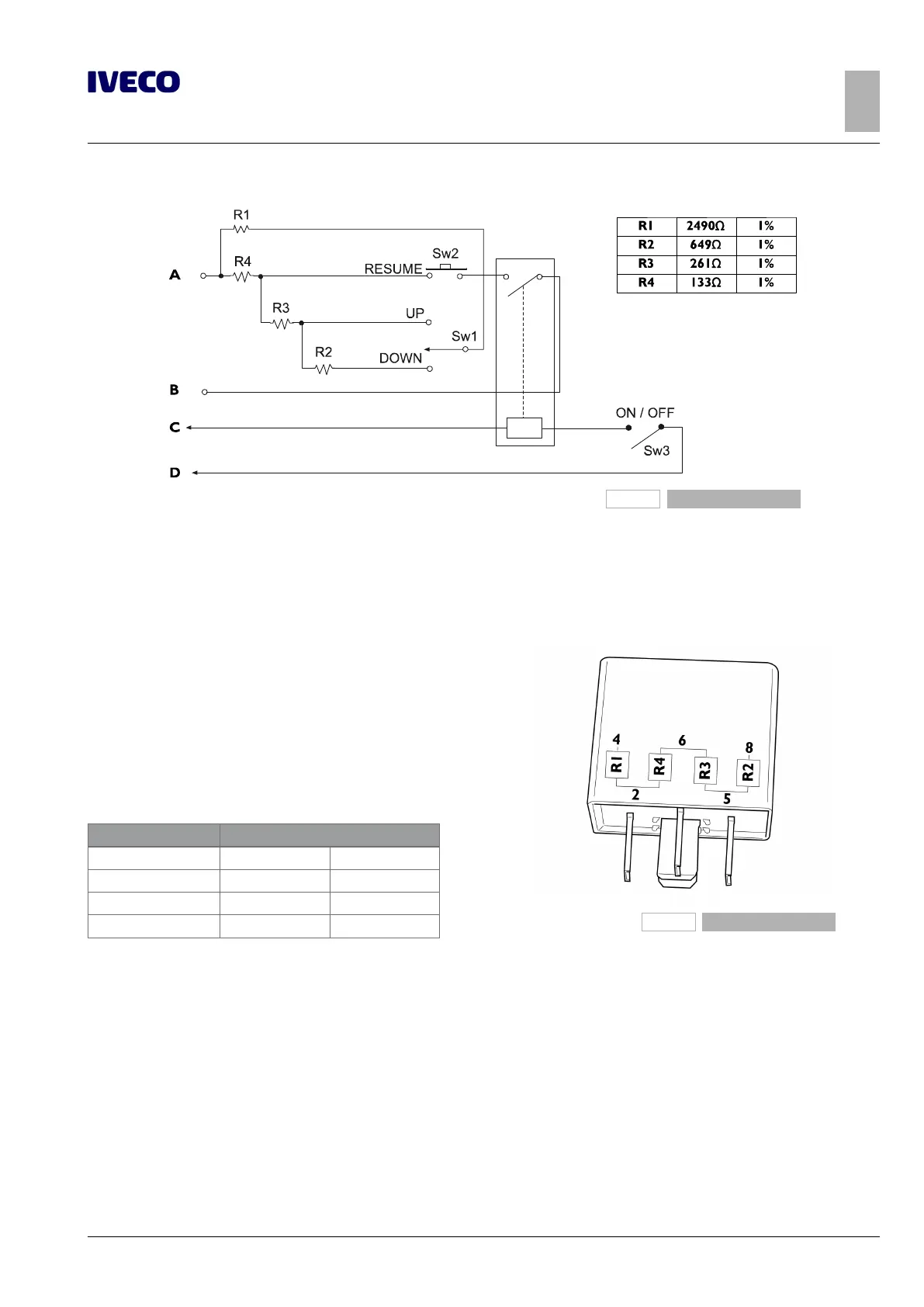

Figure 7
A. Pin 12 20-pin body builders connector
B. Pin 13 20-pin body builders connector (ground)
C. Pin 4 20-pin body builders connector (ground if V=0)
D. Pin 11 20-pin body builders connector(+15)
230050
Figure 8
For this purpose IVECO recommends use of a relay which enables utiliza-
tion of the same functions available on the steering wheel lever.
The Cruise Control option must be configured on both the ECM and BCM
systems.
Please note that the driver must position the Cruise Control switch on
the steering wheel lever to OFF, otherwise the external controls will be
ignored.
Function Short-cut necessary
CC Resume Pin 2 Pin 6
CC Set- Pin 2 Pin 8
CC Set+ Pin 2 Pin 5
CC ON Pin 2 Pin 4
