DAILY MCA2014 4x4 ‒ BODYBUILDER INSTRUCTIONS
ELECTRONIC SUB-SYSTEMS
5.4 ELECTRICAL SYSTEM: CURRENT INTERVENTIONS AND DRAWS
39
– Printed 603.95.994 – 1 Ed. - Base 05/2015
If necessary they can be replaced with ones of a higher load respecting the indication of a maximum total withdrawal (sum of the
two fuses) equal to 130 A.
Precautions
In general it is advisable to:
● adopt, where necessary, adequate protection fuses applied in the vicinity of the sample;
● protect cables inserted into the proper sheathing or corrugated cables, installing according to the recommendations in
Chapter 5.4 ( ➠ Page 20) - Paragraph: "Precautions for operations on the system".
And in CBA2 installation it is necessary to:
● avoid removing the fuses from their position;
● put the terminals on the studs and secure them with the nuts (M5 flanged nut, self-locking, etc.), tightening to torque (4 to 6
Nm);
▶ It is absolutely forbidden to draw current from unauthorised points. FIRE HAZARD.

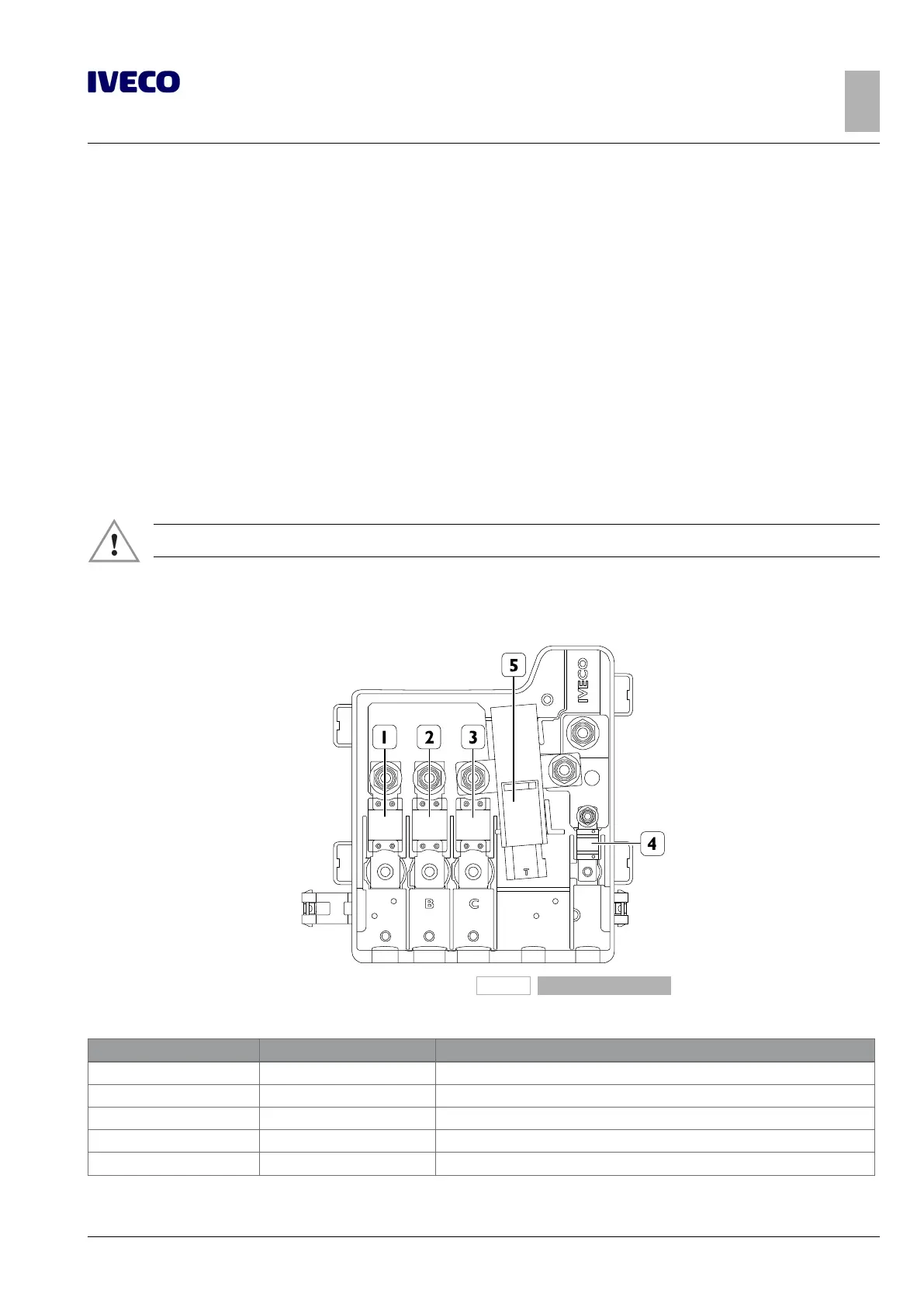

Fuses on CBA1 control unit on battery
208221
Figure 38
Table 5.9 - List of fuses on CBA1
Location Amperage [A] Description
1 150 Power supply CBA2
2 200 Power supply SCM and Body builders
3 500 Starter and Retarder
4 80 Body Computer power supply
5 TGC (opt)
