DAILY MCA2014 4x4 ‒ BODYBUILDER INSTRUCTIONS
ELECTRONIC SUB-SYSTEMS
5.4 ELECTRICAL SYSTEM: CURRENT INTERVENTIONS AND DRAWS
– Printed 603.95.994 – 1 Ed. - Base 05/2015

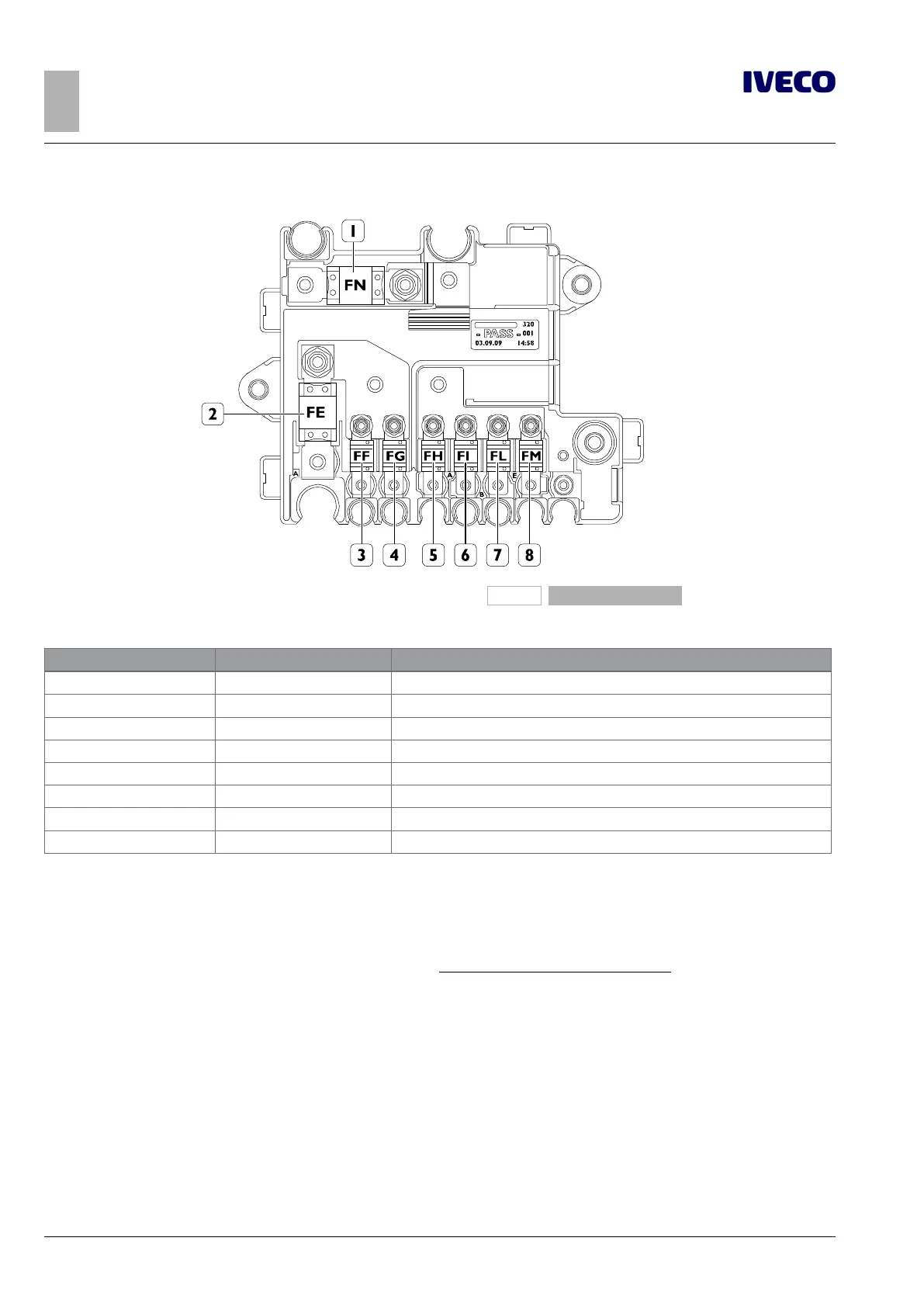

Fuses on CBA2 control unit in the engine compartment
209812
Figure 39
Table 5.10 - List of fuses on CBA2
Location Amperage [A] Description
1 150 Retarder
2 150 SCM Power supply
3 30 Body builders pre-installation
4 30 Body builders pre-installation
5 60 Pre- / post- heating unit
6 30 Urea module
7 100 PTC power supply
8 40 ABS
Passage of cables from cab interior to cab exterior
In the engine compartment, close to the servo brake, through the five premade 10 mm holes in the bulkhead, it is possible the to
pass the electric cables from the cab to the engine compartment. Adequately seal the cable passage area to avoid passing fumes
from the engine compartment to the cab.
