DAILY MCA2014 4x4 ‒ BODYBUILDER INSTRUCTIONS
ELECTRONIC SUB-SYSTEMS
5.4 ELECTRICAL SYSTEM: CURRENT INTERVENTIONS AND DRAWS
– Printed 603.95.994 – 1 Ed. - Base 05/2015
120383

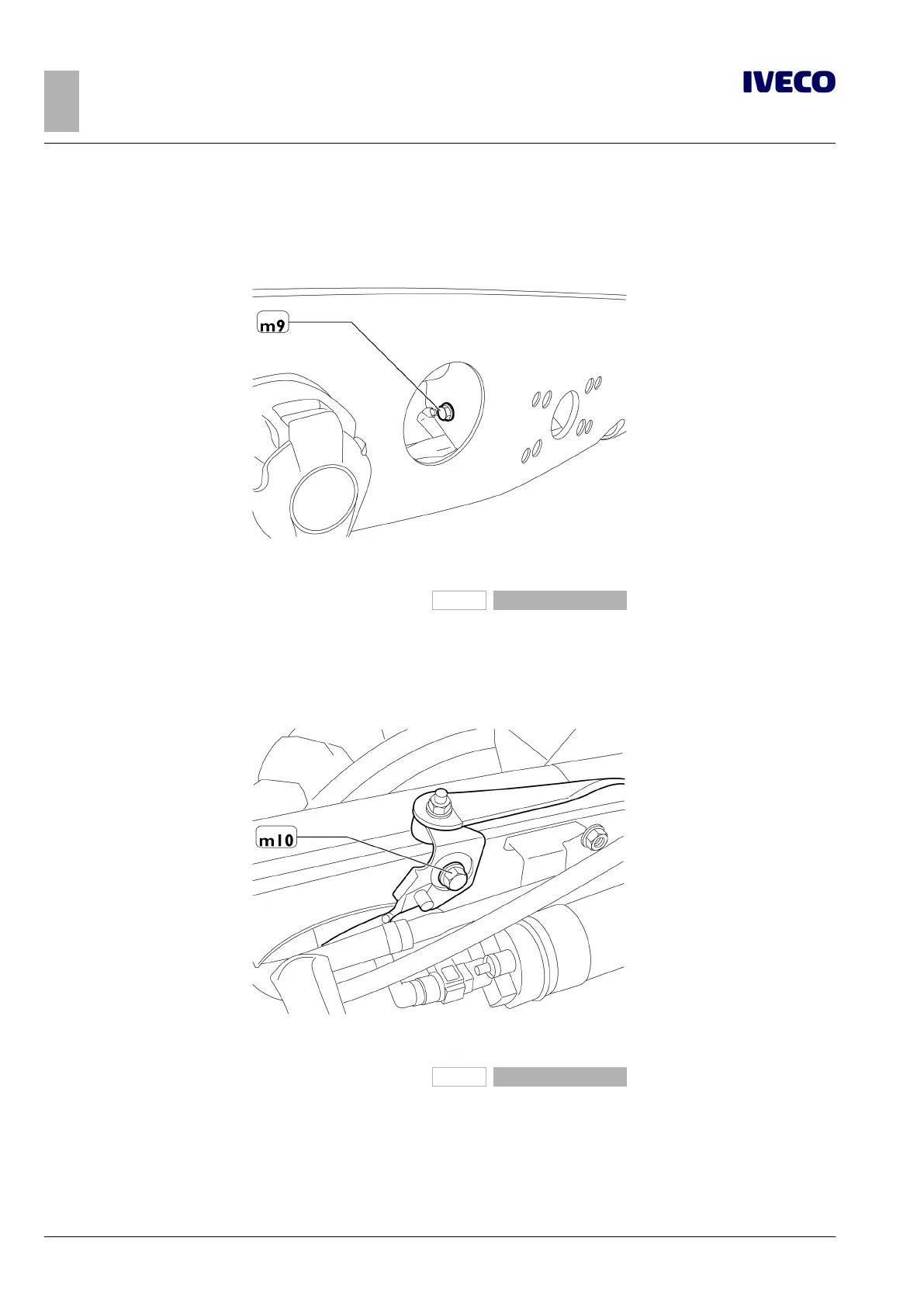

Figure 23
m9. Ground on left side rear cross member
230829
Figure 24
m10.
Ground on chassis
The negative leads connected to a ground point in the system must be as short as possible and must be connected to each other in
a "star" formation, while tightening must be done in an orderly and adequate manner.
As far as electronic components are concerned, the following instructions should be followed:
