1.15 DIMENSIONS AND GROUND
13
– Printed 603.95.994 – 1 Ed. - Base 05/2015
227315

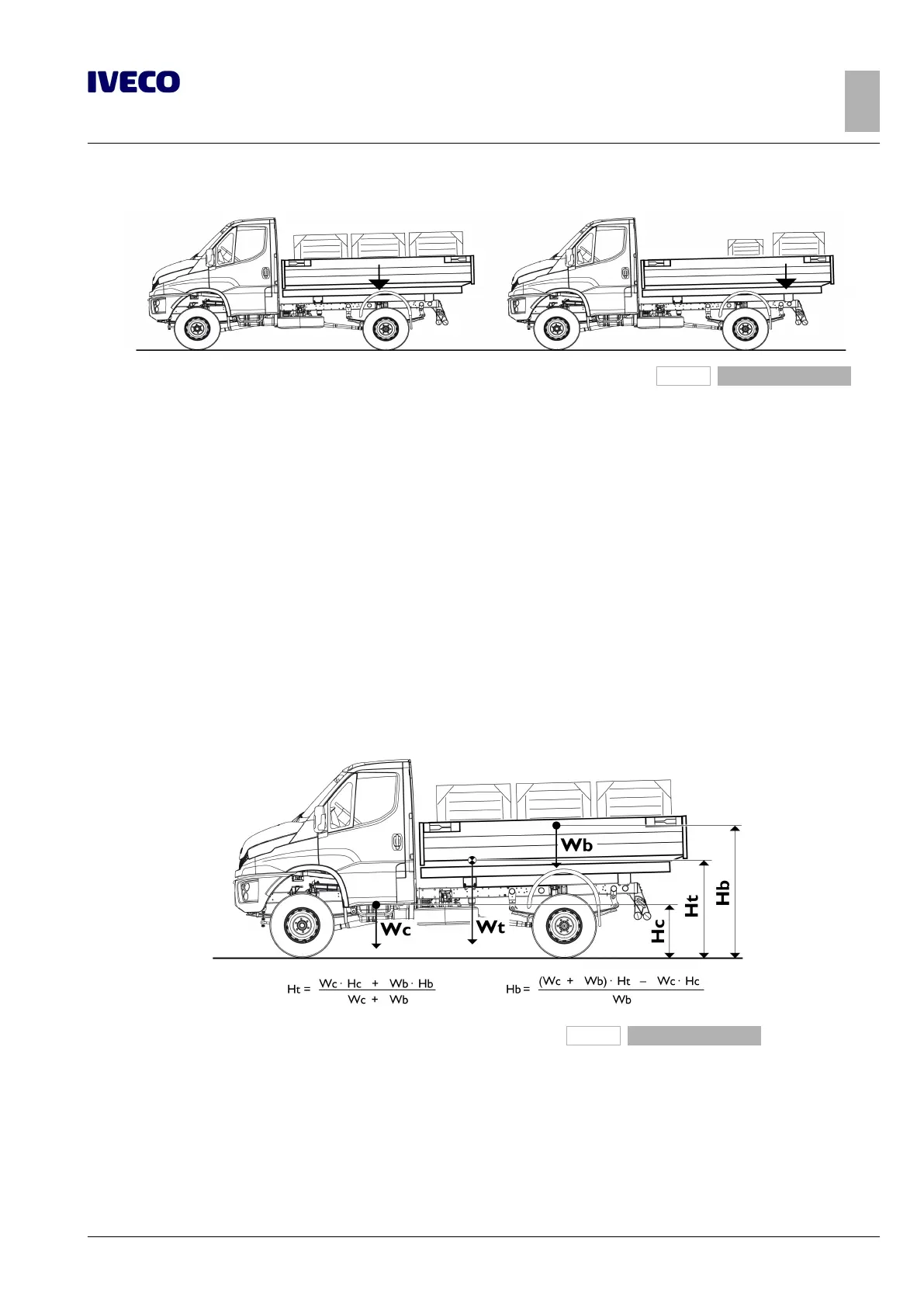

Figure 5
Even distribution of load Uneven distribution of load (attention to loads on axles
and minimum ratio)
Height of centre of gravity
For the cab version and no-load vehicle, the value of the height of the centre of gravity is shown on the specific technical docu-
mentation for each model (cab version diagram).
For the vehicle complete with super structure and full load, this height must comply with the maximum values allowed by national
or international standards, in particular, Directives ECE 13 on longitudinal stability and ECE 111 on lateral stability while driving.
The following cases should be distinguished:
● fixed loads,
● mobile loads;
● loads that result in increased aerodynamic actions.
a) Fixed loads
227316
Figure 6
Control at full load
Hc = Vehicle centre of gravity height (loaded)
Hb = Height of payload centre of gravity from the ground
Ht = Complete full-load vehicle centre of gravity height
Wc = Vehicle tare weight
Wb = Payload
Wt = Complete vehicle ground at full load
