DAILY MCA2014 4x4 ‒ BODYBUILDER INSTRUCTIONS
CHASSIS INTERVENTIONS
2.6 INSTALLING THE TOW HOOK
– Printed 603.95.994 – 1 Ed. - Base 05/2015
196787

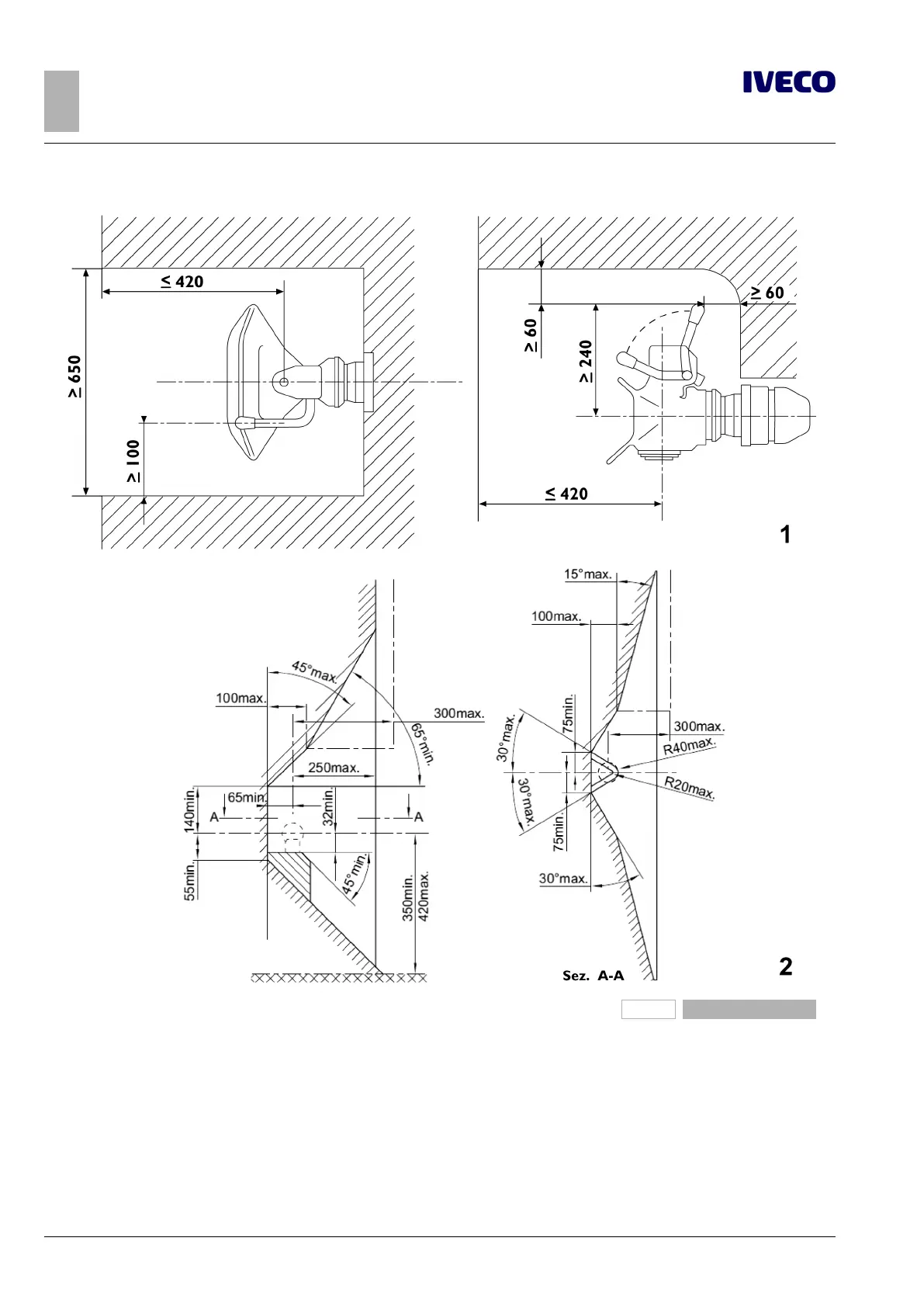

Figure 3
1. Free field for towing hooks 2. Free field for coupling hooks according to standard DIN
74058 ESC-152
In cases where the connection flange of the drawbar coupling does not have holes suitable to those on the existing rear crossbar of
the vehicle, the latter may be authorised for modification upon application of adequate reinforcements.
The Body builder has the duty of realising and installing the superstructure so as to allow coupling connection and checks without
impairment or hazard of sort.
The trailer drawbar must be guaranteed freedom of movement.
