2.6 INSTALLING THE TOW HOOK
– Printed 603.95.994 – 1 Ed. - Base 05/2015
193864

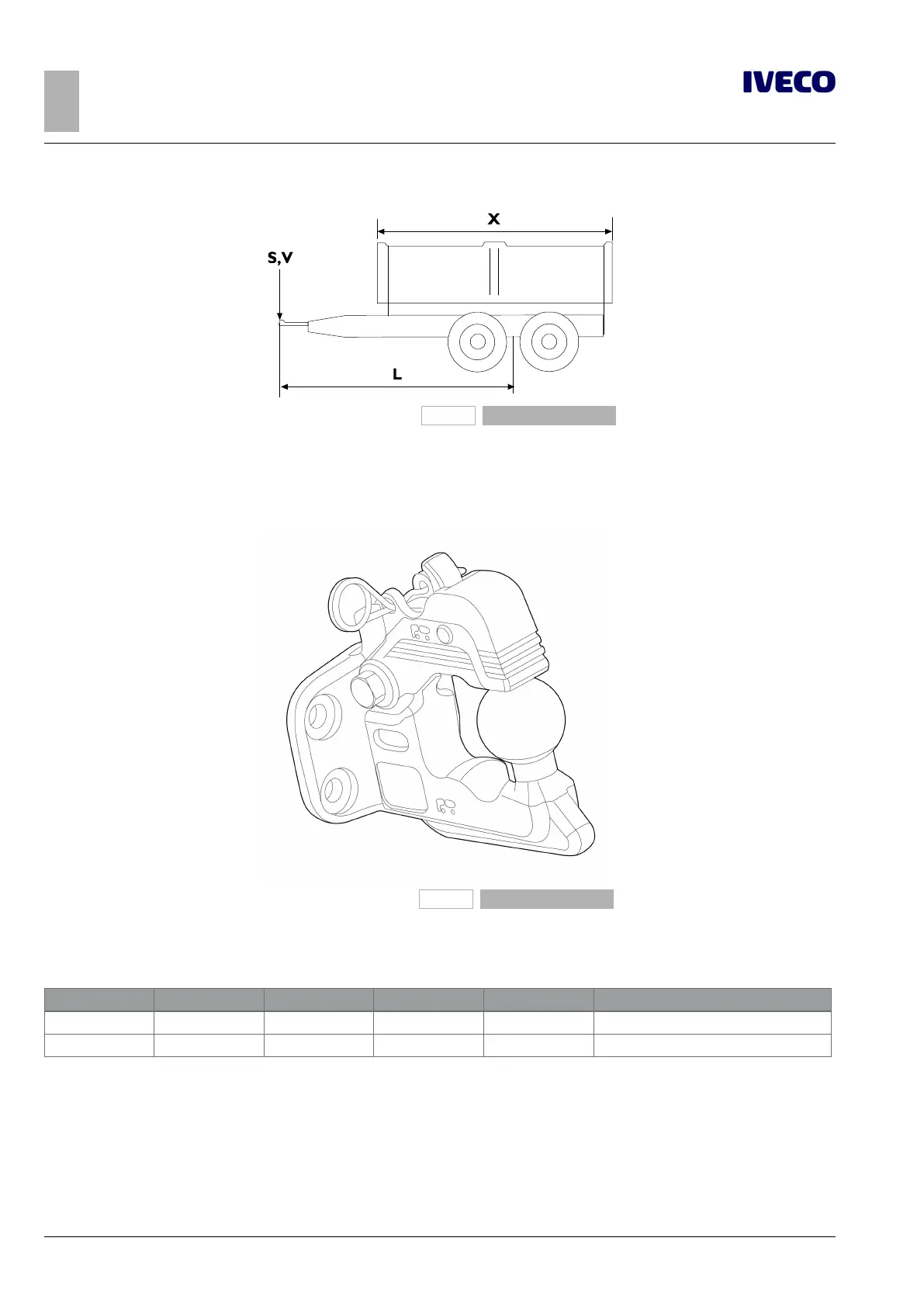

Figure 4
X. Length of the trailer load bed L. Theoretical drawbar length
As original equipment, the DAILY 4x4 vehicles may be fitted with a ”mixed” type tow hook, i.e.ball type with safety device. This
tow hook may only be fitted on the rear closing cross member of the chassis.
120361
Figure 5
The following chart contains the data of tow hook versions which are available in production.
Table 2.9 - Type-approved hooks
type Class D [kN] Dc [kN] S [kN] N˚ ECE type approval
70C 4x4 A50-X 31 – 3.75 0112261
70C 4x4 S 31 – 3.75 0112262
If it is not directly supplied by IVECO, then the tow hook must in any case:
● have characteristics that are wholly equivalent to those shown in Table 2.9;
● be approved in observance of the current national and international legislation (eg. EC Directives);
● be fitted in accordance with the manufacturer's instructions.
