14.4.4 Voltage Phase

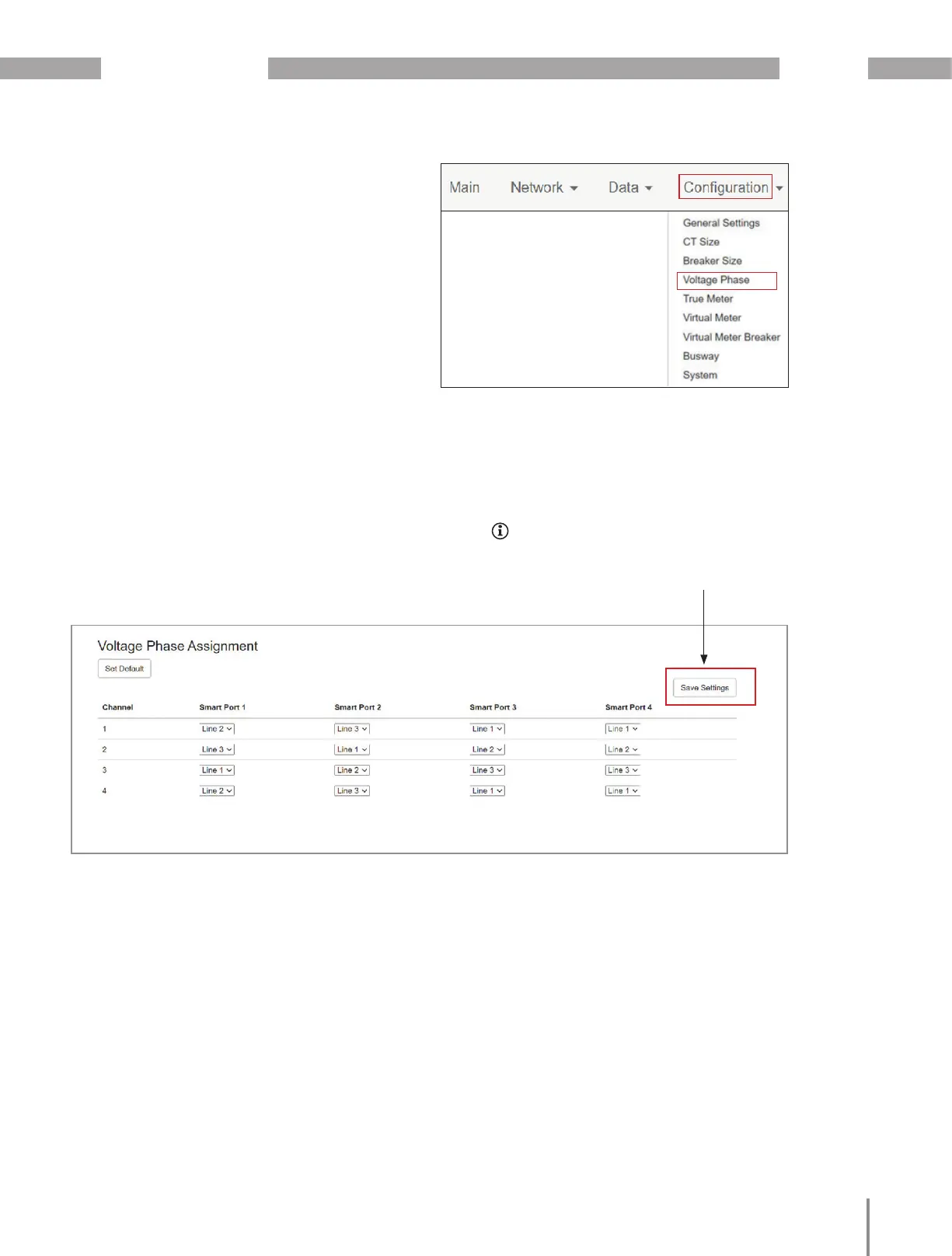

· The Voltage Phase Assignment assigns a voltage
phase (L1, L2, L3) to each channel in the event
non-sequential panel type or receptacle types are
being used.
· The default is L1-L2-L3 in sequential order.
· To determine which channel corresponds to
which circuit see the channel to circuit relation
table as this is dependent on Smart Port Confi-
guration.
· The Set Default button returns the system to the
L1, L2, L3 sequential values.
· To determine which channel corresponds to
which circuit see the channel to circuit relation
table as this is dependent on Panel Maps Confi-
guration.
INFORMATION
Important : Always remember to select
the Save Settings button to save chan-
ges to settings.
