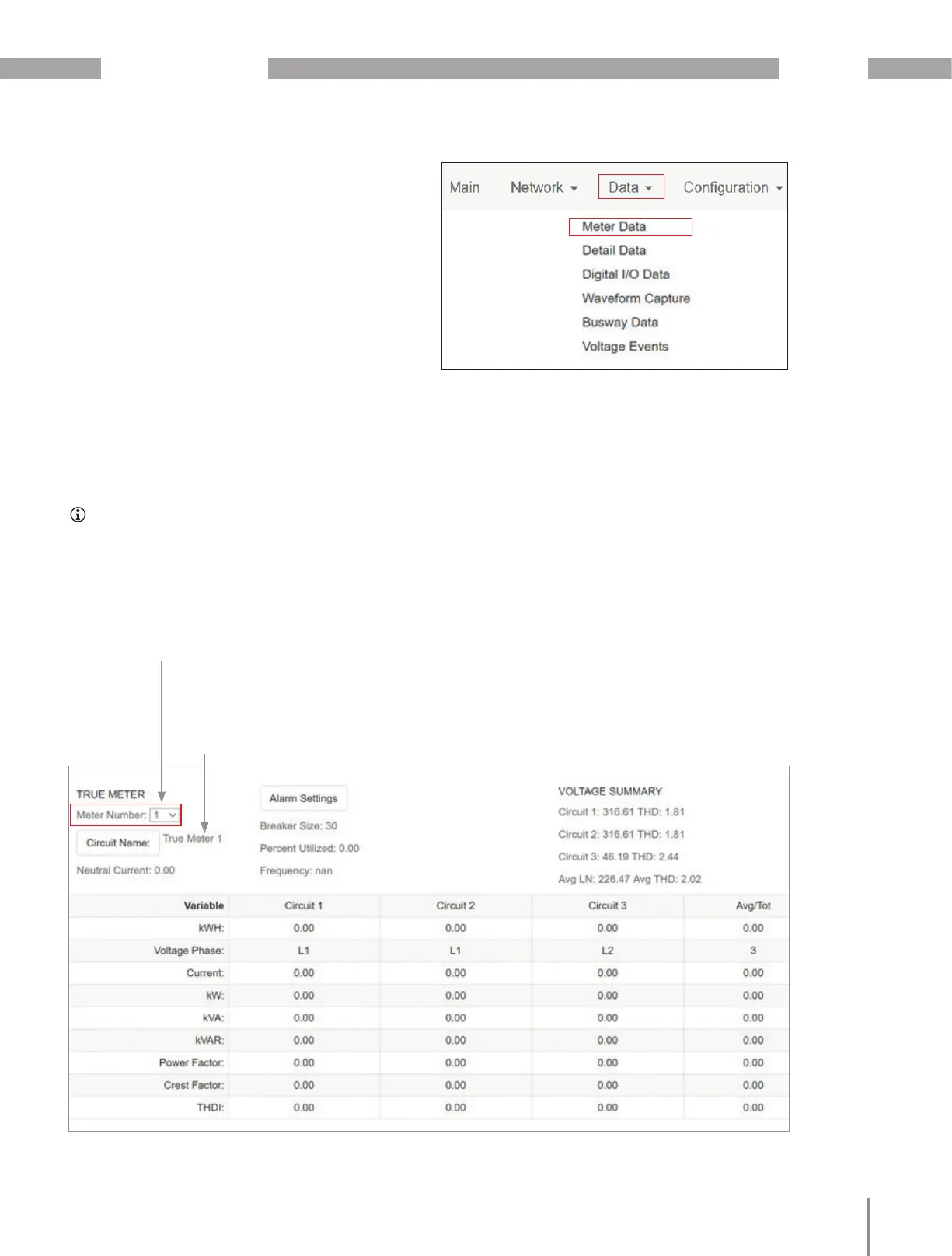

14.3.1 True Meter Data Page
· The Meter data page provides an overview of
all data for all True Meters and Virtual Meters.
True Meters are groups of individual circuits that
are combined to represent a single two-phase or
three-phase circuit breaker allowing total data for
the breaker to be presented.
· True meters will also derive the neutral phase of
a “wye” or four wire circuit without requiring a
neutral CT.
· Virtual Meters use the same True Meter number
but sum up the data for large groups of circuits to
give panelboard, switchgear or busway totals.
INFORMATION.
All voltages are common to all circuits /
True Meters on the monitor.
To view a specific True Meter select the
meter number from the True Meter drop
down menu.
To assign a friendly name to a
meter click on “Circuit Name.
