www.janitza.com UMG 804
23
8. DIN Rail CT Interface Floating
Board (CTS24FBV)
8.1 Overview

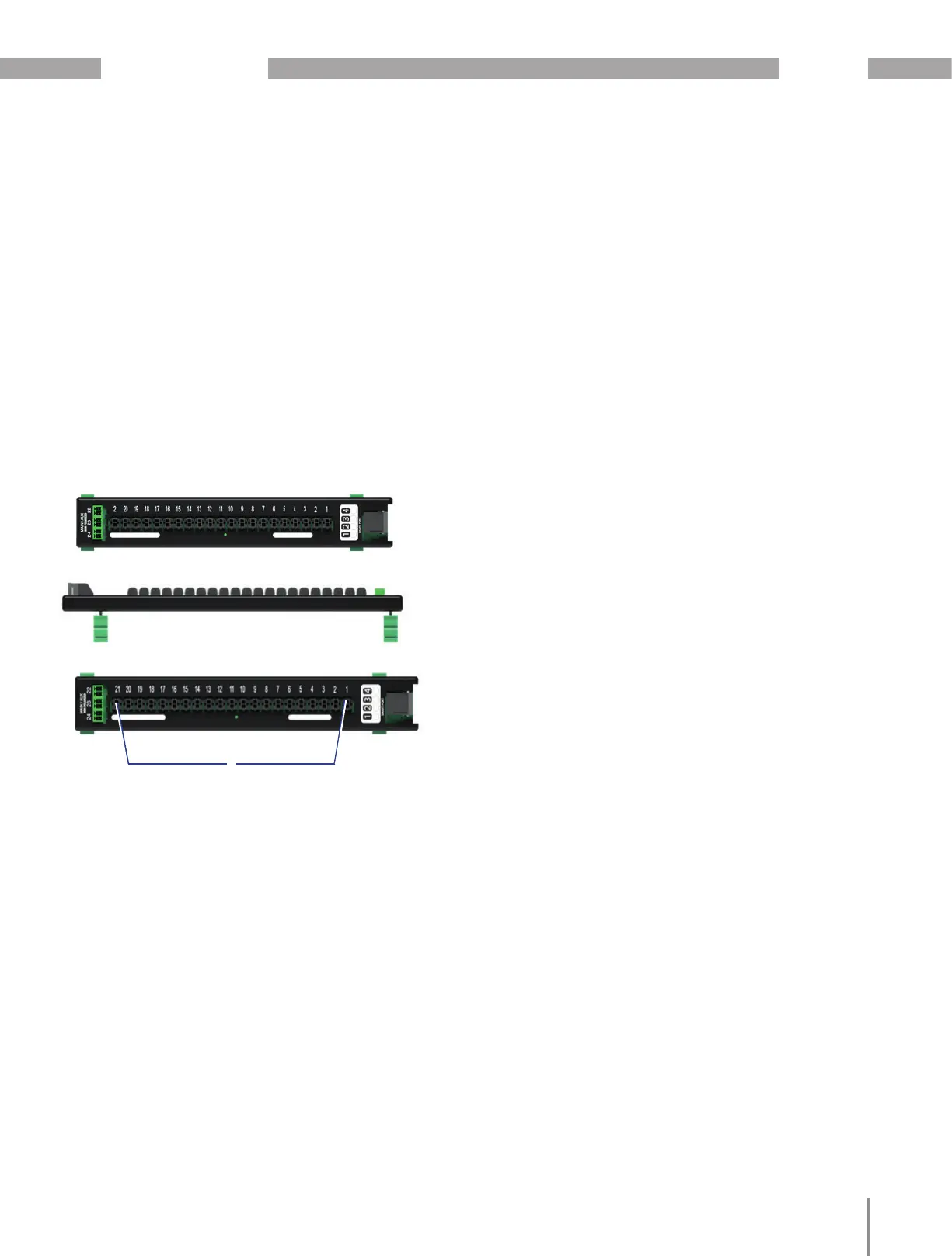

· The DIN Rail CT Interface Floating Boards are
provided with DIN clips for mounting on a stan-
dard 35mm DIN rail. The suggested rail length is
10” (254 mm) or longer.
· DIN rails may be affixed mechanically with fas-
teners or using VHB tape; a permanent adhesive
depending on regional codes.
· Floating Boards also have slots that allow them to
be zip tied in place instead of using DIN rail.
slot for ties
V
8.2 Installation
· DIN Rail CT Interface Floating Boards are orien-
ted according to the panelboard type and num-
bering scheme in one of the four configurations
shown.
· In Top Feed and Bottom Feed orientations the
panelboard type and numbering is identical ho-
wever the user can select to install the Interface
Board with the Smart Port (RJ45 connector) top
facing (Top Feed) or bottom facing (Bottom Feed).
· Ensure that the connections to the UMG 804
Smart Ports match those shown on the orienta-
tion diagrams.
· Smart Ports hosting the Interface Card must be
correctly set in the HTML console under Configu-
ration > General Settings (refer to chapter „14.4.1
General Settings“ on page 65).
