14.3 Data Menu

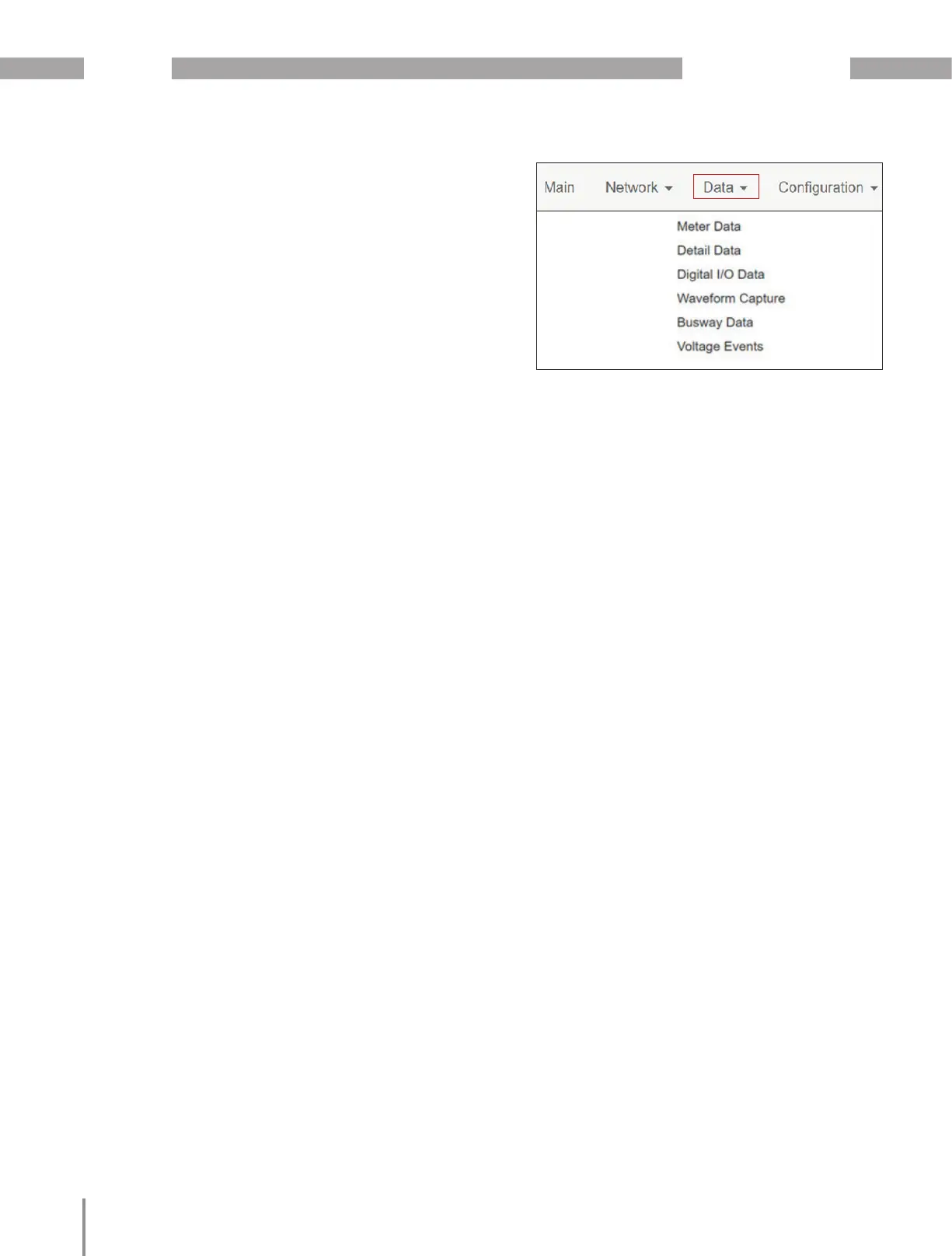

The options under the Data menu allow for view-
ing real time readings as well as waveform captu-
res and voltage abnormalities.
· Meter Data: Displays data for “True Meters” and
„Virtual Meters“. True Meters are circuits that
are grouped to represent a single circuit breaker
such as a 2P or 3P breaker. Virtual Meters use
the same True Meter number but sum up the data
for large groups of circuits to give panelboard,
switchgear or busway totals.
· Detail Data: Display data for each of the meters
96 channels as well as alarm status, alarm confi-
guration and system level voltage.
· Digital I/O Data: Displays status of native Digital
I/O ports on the monitor as well as Digital Input
cards.
· Waveform Capture: Provides access to view,
download and trigger waveform captures.
· Busway Data: Currently not available.
· Voltage Events: Provides access to view and
download voltage anomalies including sags,
swells and CBEMA / ITIC violations.
