14.4.3 Breaker Size

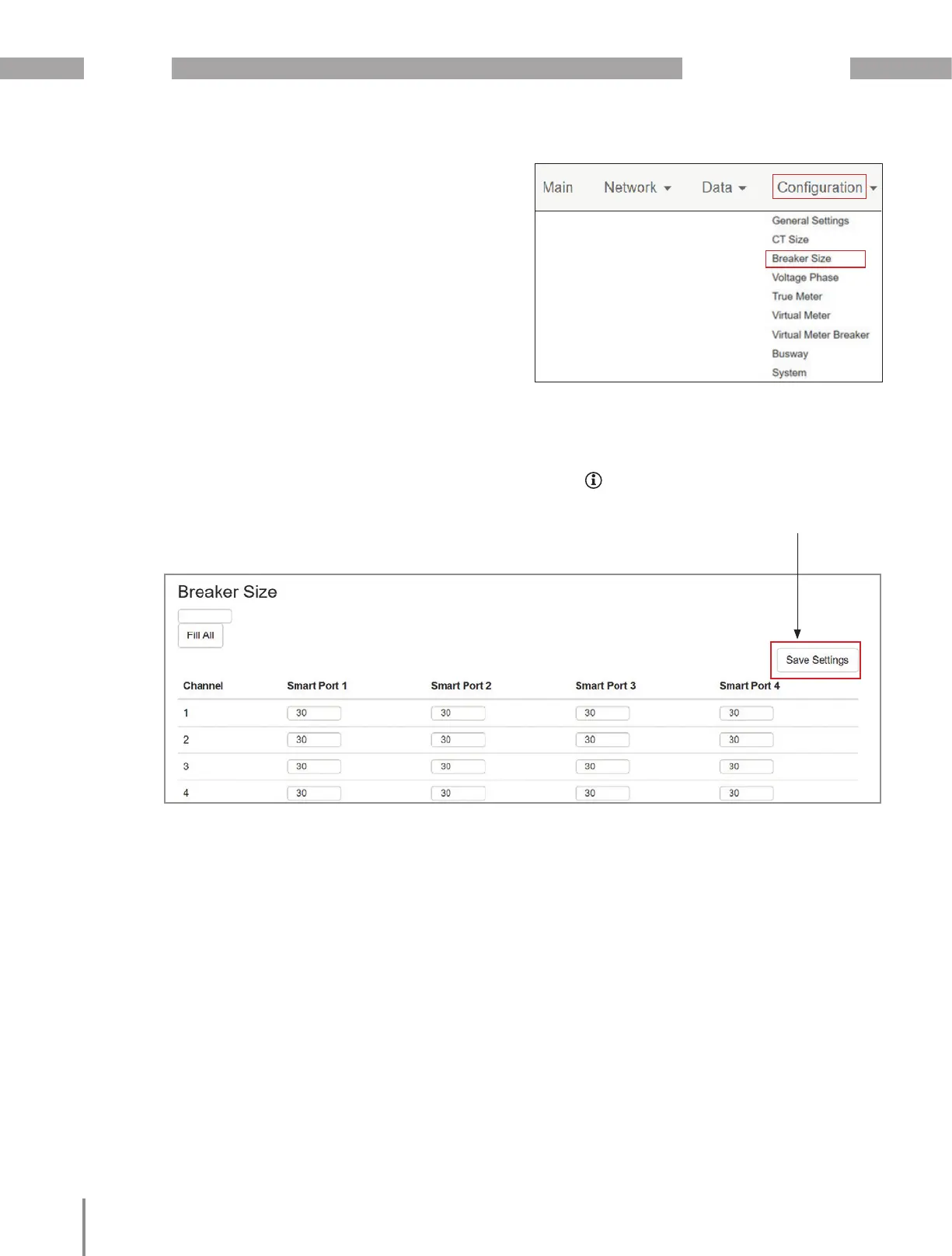

· The breaker size configuration setting provides
trip ratings for each circuit breaker on each
circuit. It does not influence any readings and is
only used in over and under current alarms and
percent circuit capacity calculations.
· The Fill All field allows a single value to populate
all fields with a similar value.
· To determine which channel corresponds to
which circuit see the channel to circuit relation
table as this is dependent on Smart Port Confi-
guration.
INFORMATION
Important : Always remember to select the
Save Settings button to save settings.
