Device Model: Device Model Description
2
Device Name: User input field up to 42 characters; can be changed via config.csv file or click
on “Device Name”
3
Device Location: User input field up to 42 characters; can be changed via the config.csv file
or click on “Device Location”
4
Version: Firmware Version
5
Date: The Date and Time auto defaults to time.google.com but can be set to another time
reference using config.csv file or click on “Date”
6
LAN MAC: The MAC address is a permanent ID for the device and can be used to reference
calibration records
7
USB Used Space: Denotes available capacity of USB drive if installed. USB is used to record
waveform captures and CBEMA / ITIC events. It must not exceed 32 GB in capacity and must
be a high quality drive
8
Smart Port Connections: Indicates if any modules are connected to the Smart Ports; an
active module will be noted as “CONNECTED”

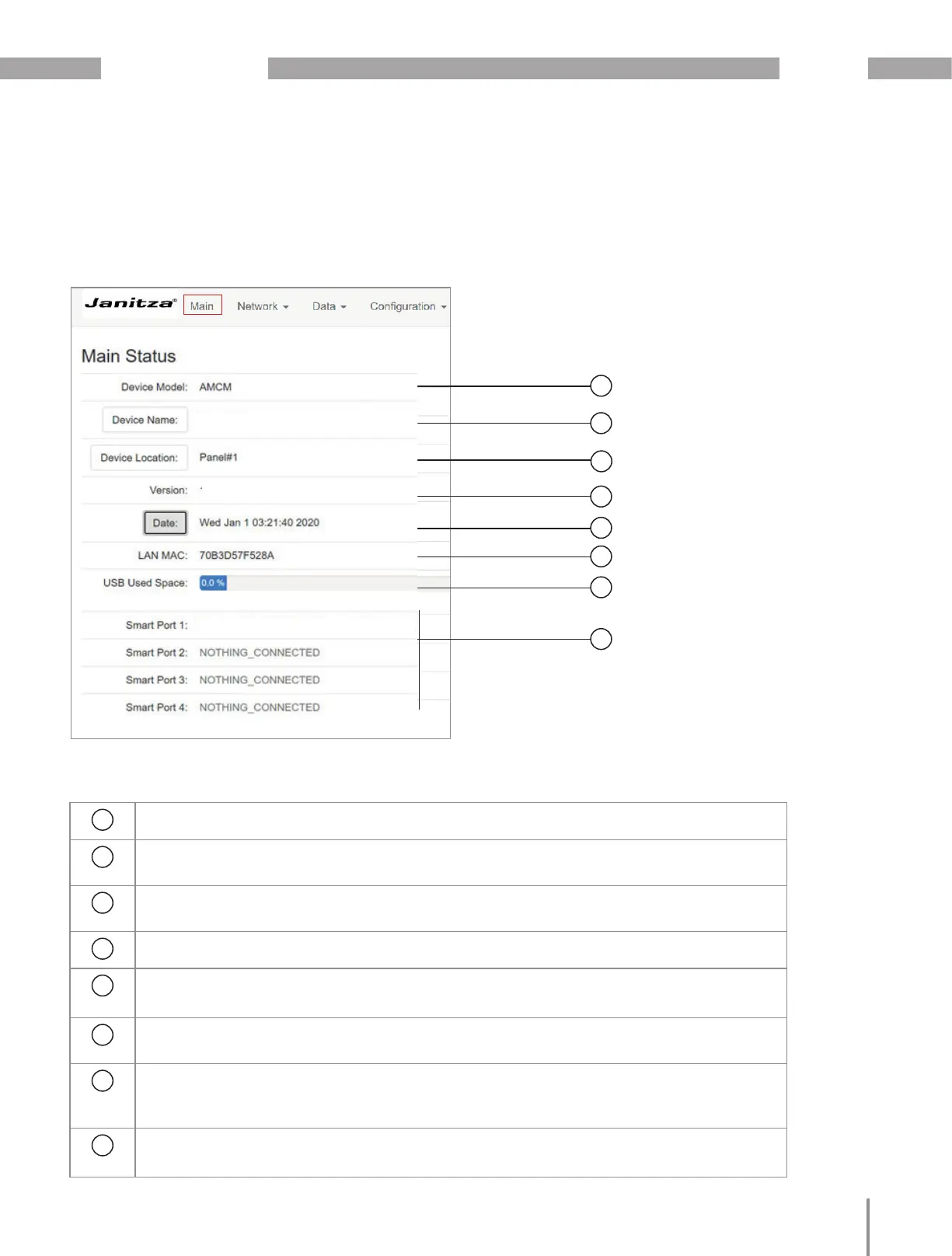

14.1 Main Status Page
· The Main Status Page indicates the identifying
features of the UMG 804 including firmware ver-
sion and connectivity status to interface devices
connected to the Smart Ports.
The following information is displayed on the Main
Status page.
BCMS Main Hall
2
8
1
4
5
6
7
3
BCMS Main Hall
1.126
CONNECTED
