www.janitza.com UMG 804
65

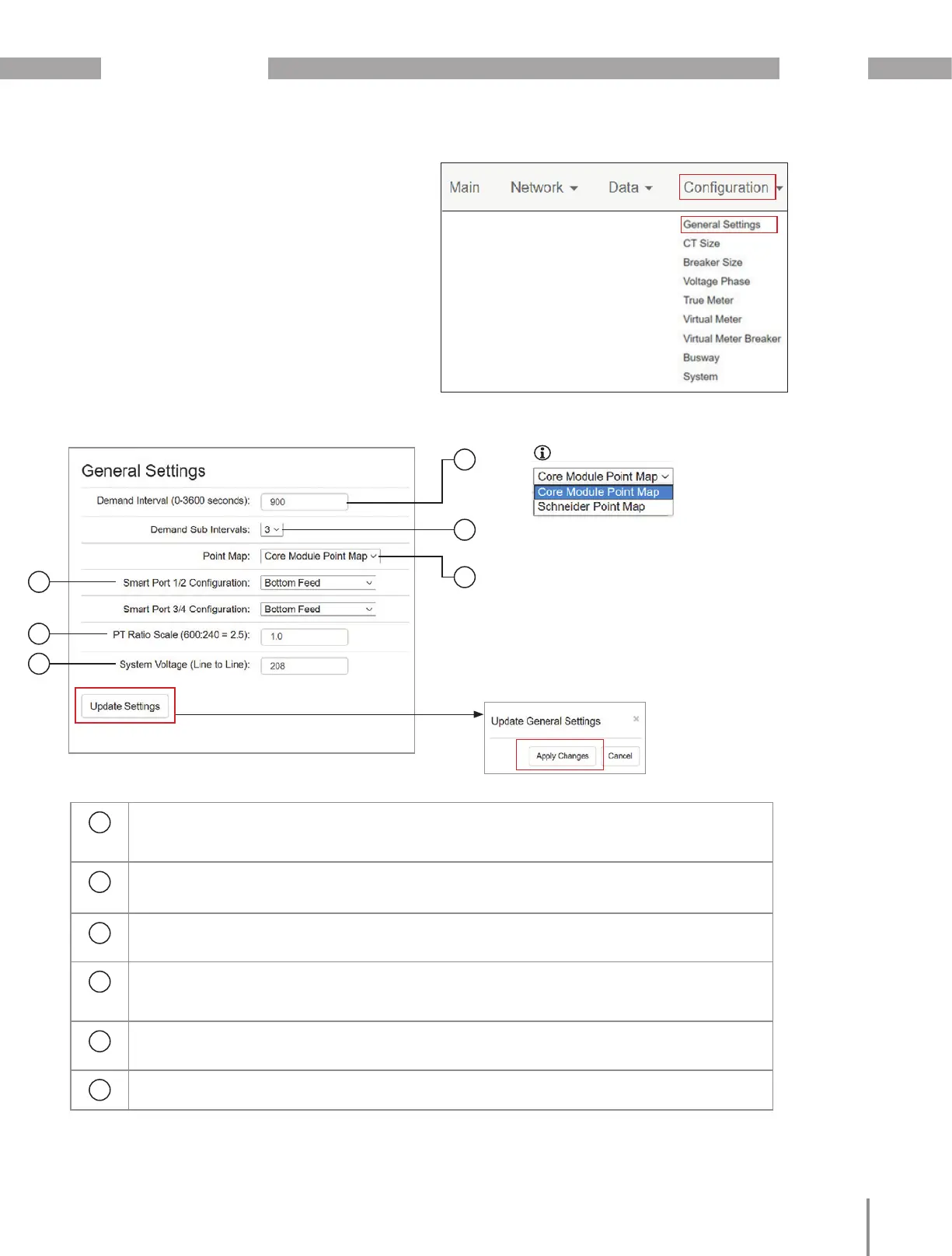

14.4 Configuration
14.4.1 General Settings
1
Demand Interval: Kilowatt demand is a measure of the average rate at which kilowatt-hours are used
during a certain time interval. This can be a value range from 0-3600 seconds.
It does not affect any parameter other than demand kWh.
2
Demand Sub Intervals: The demand interval can be broken down into subintervals. The meter calcula-
tes the average load in each subinterval as well as each Demand Interval.
3
Point Map: The monitor is capable of supporting different register maps. The standard register map is
the UMG 804 Point Map that provides access to all of the features the module offers.
4
System Voltage: Provide the nominal system voltage (line to line) for the source. If a line to neutral
single-phase source is being used input the line to neutral voltage. This is used in the calculation of the
CBEMA / ITIC voltage event calculations.
5
PT Ratio Scale: provides a scaling factor for the voltage reference when using potential transformers
to scale voltage for medium voltage applications.
6
Smart Port Configuration: refer to sections „Panel Maps Configuration“.
Selecting the Schneider Point Map
provides a different register map that
emulates the Schneider/Veris MCM/
BCM monitor in the event legacy
Schneider equipment is also being
used on a common system.
2
6
5
4
Important: Always remember to select the Update Settings button to save settings.
INFORMATION
1
3
