7. UMG 804
7.1 Installation
DANGER
Disconnect power to the panel or equipment
on which the monitor is being installed before
starting the installation.
The UMG 804 can be housed in existing enclosures
where permitted by code or inside standard
electrical enclosures.
The UMG 804 is installed by mounting on standard
35mm DIN rail. The enclosure can be mounted
in any orientation. Secure the DIN rail using a
mechanical fastener such as sheet metal screw or
bolt to a secure surface.
158.7 mm
6.25”
59.2 mm
2.33”
108.54 mm
4.27”
158.7 mm
6.25”
59.2 mm
2.33”
108.54 mm
4.27”

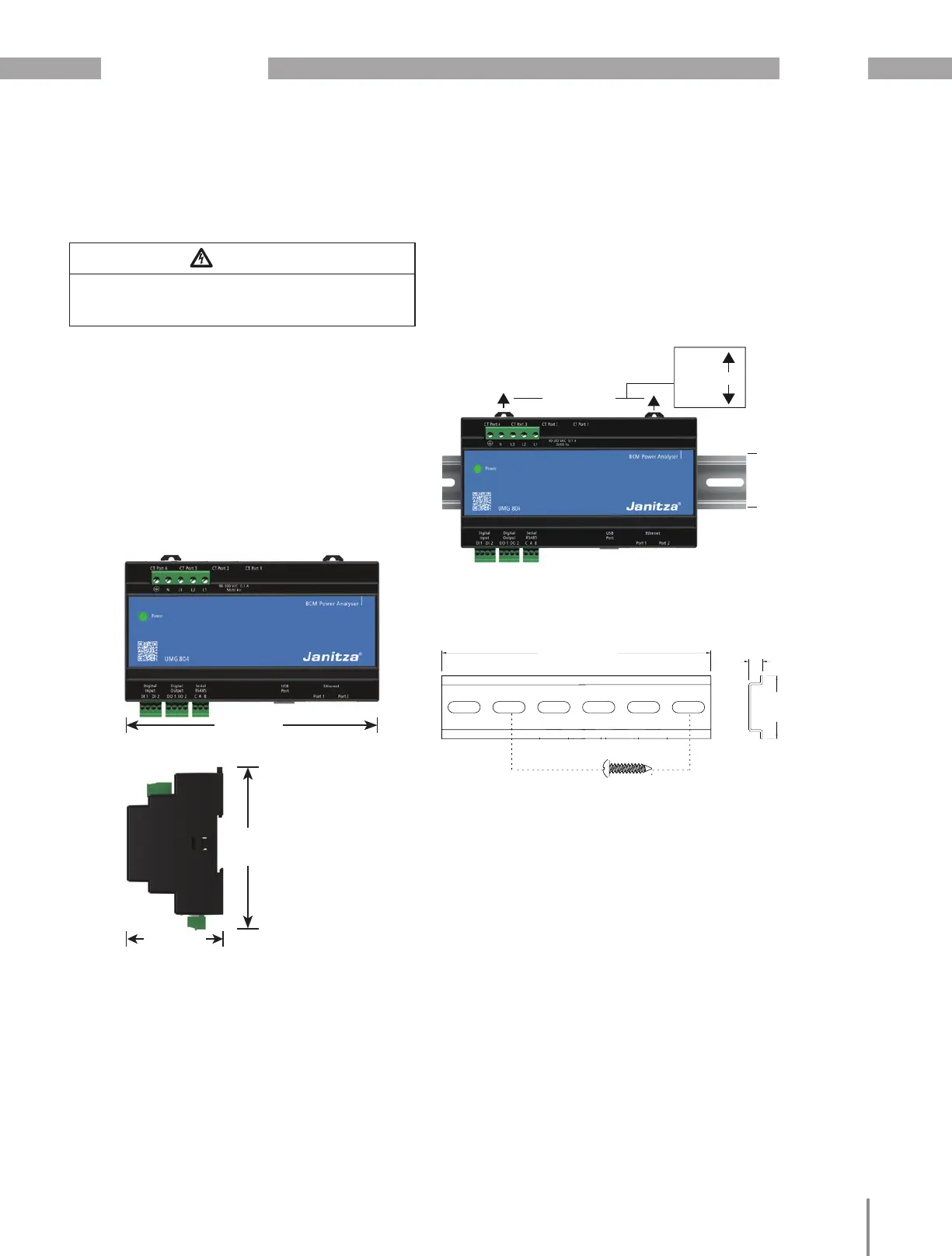

Fig.: UMG 804 dimensions
Mount the enclosure on the DIN rail by lifting up
circlips and placing enclosure over the rail as
shown. Once rail is in place push the circlips down
to secure the enclosure in place.
125mm (5”)
7.5 mm
min.
35 mm
min. width
35 mm
DIN Rail
DIN Circlips
Unlock
Lock
125mm (5”)
7.5 mm
min.
35 mm
min. width
35 mm
DIN Rail
DIN Circlips
Unlock
Lock
Fig. 5: UMG 804 Installation
125mm (5”)
7.5 mm
min.
35 mm
min. width
35 mm
DIN Rail
DIN Circlips
Unlock
Lock
