www.janitza.com UMG 804
67

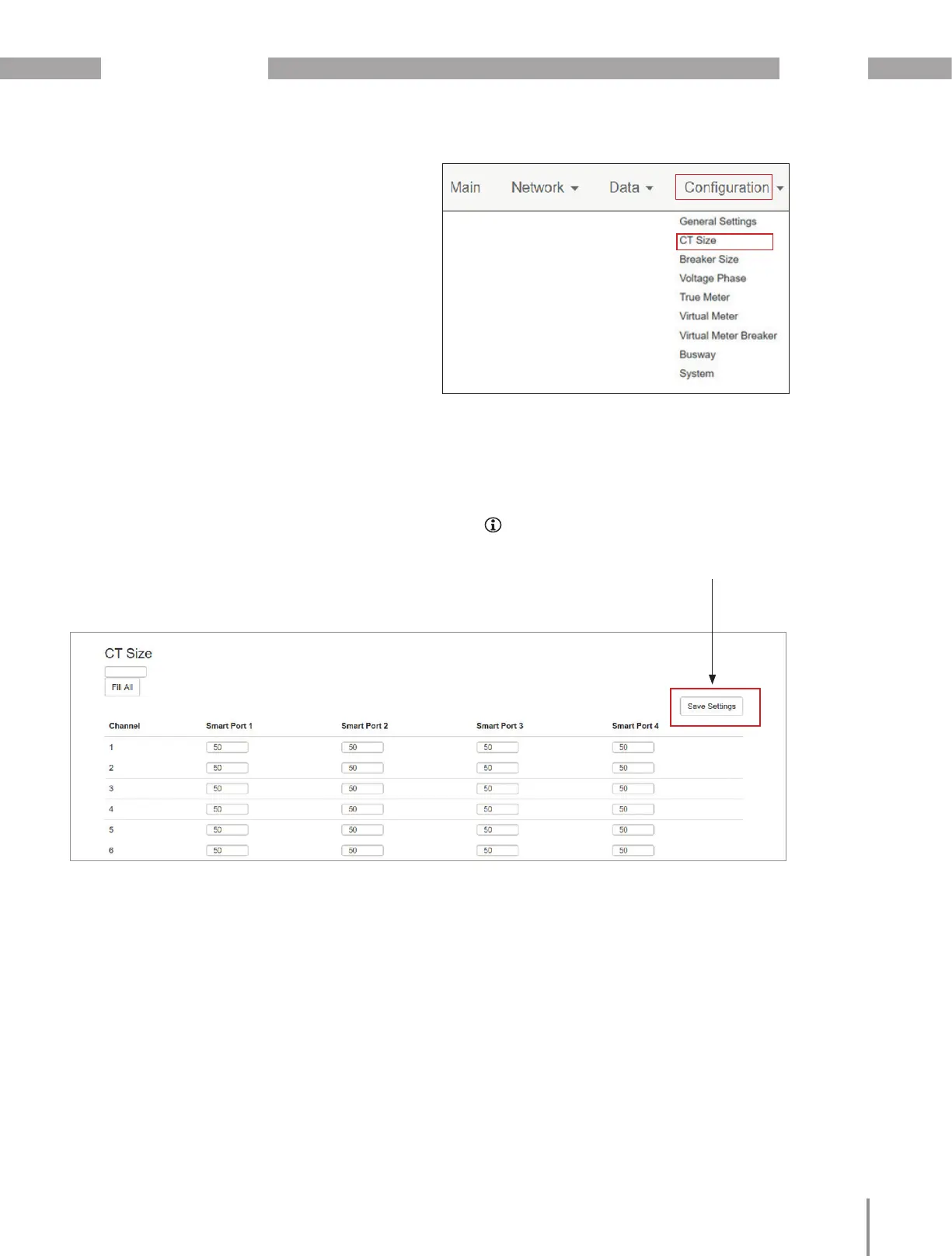

14.4.2 CT Size
· The CT (current transformer) size configuration
setting provides current transformer nominal
amperage values for all circuit positions. This is
critical as it affects the scaling of currents.
· All CTs used are 0.33 V output.
· To determine which channel corresponds to
which circuit see the channel to circuit relation
table as this is dependent on Smart Port Configu-
ration.
· The Fill All field allows a single value to populate
all fields with a similar value.
· To determine which channel corresponds to
which circuit see the channel to circuit relation
table as this is dependent on Panel Maps Confi-
guration.
INFORMATION
Important : Always remember to select the
“Save Settings“ button to save settings.
