• 1p 2w (Addr. 509 = 6)
L1
L2
V1 V2 V3 VN
L1
L2
L3
N
V1 V2 V3 VN
• 2p 4w (Addr. 509 = 3)
L1
N
V1 V2 V3 VN
• 1p 2w1 (Addr. 509 = 4)

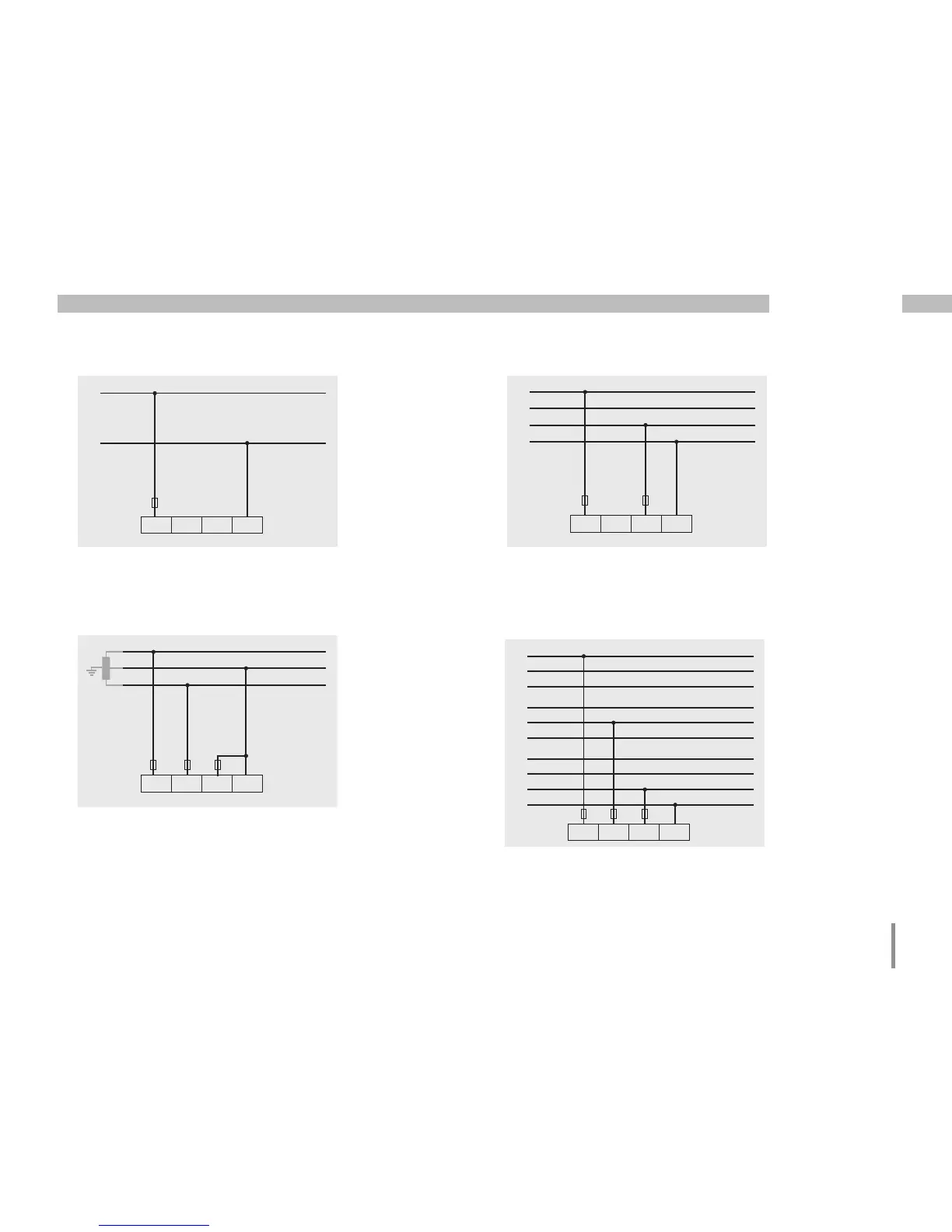

Fig. TN-C system with single-phase three-wire
connection. The null is taken from the voltage
measurement input V3's measured value
and not calculated.
Fig. The values obtained from the voltage
measurement inputs V2 and V3 are taken
to be null and not calculated.
Fig. System with uniform phase loading.
The measured values for the voltage
measurement input V2 are calculated.
L1
L2
L3
L1
L2
L3
L1
L2
L3
V1 V2 V3 VN
N
• 3p 1w (Addr. 509 = 7)
Fig. 3 systems with uniform phase loading.
The not connected measured values L2/L3, L1/
L3, and L1/L2 of each system are calculated.
