X-Series Waterblast Unit
25. Connect the water lubrication lines
(Figure 76) to the ttings on the stufng
boxes.
26. Connect the supply coupling (Figure 77)
and the bypass hose to the manifold.
27. Place the hydro-throttle switch and
housing (Figure 78) into position and
install the two bolts that secure it.
28. Verify all connections, glands and bolts
were properly tightened.
29. Ensure the water lubrication system is
properly adjusted, if equipped, before wa-
terblasting. Refer to “Checking the Water
Lubrication System” on page 27 for
instructions.
30. If new packing was installed, break in the
packing as outlined in “Breaking in New
Packing” on page 29.
ATTENTION
If converting to a 40K uid end, the secondary
lter must be plumbed for operation. Refer to “40K
Hose Connections”.
When converting to 40K, a charge pump is
required to force the water through the secondary
lter. If the 40K manifold is not pressurized,
the univalves will be damaged. If your unit is
not equipped with a charge pump, it cannot be
converted to a 40K uid end. Units equipped with
a charge pump are plumbed so that the charge
pump feeds the manifold at all times with the
clutch engaged. The charge pump is belt driven by
the PTO.
Cover
Lubrication
Lines

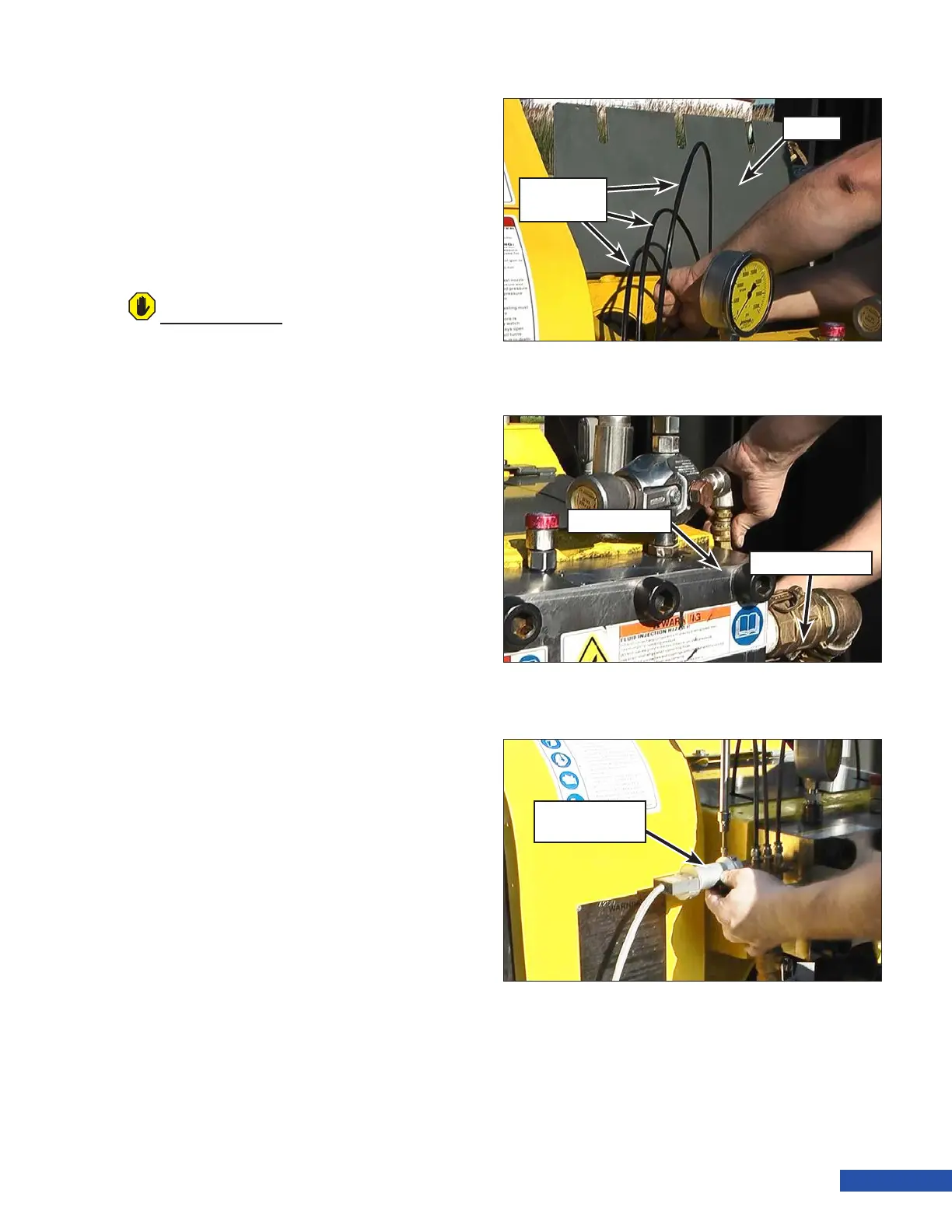

Figure 76: Connecting the Water Lubrication Lines.
Figure 78: Hydro-Throttle Switch and Housing Installation.
Hydro-Throttle
Switch
Figure 77: Connecting Bypass Hose and Supply Coupling.
Bypass Hose
Supply Coupling
