1. Install a new O-ring (Figure 95) onto the
gland nut.
2. Install the guide bushing (Figure 95) and
plunger into the gland nut.
3. Place the new packing and guide bush-
ing onto the plunger. Orient the packing
as shown in (Figure 92) for 15K/20K and
(Figure 93) for 40K.
4. Lubricate the gland nut with anti-seize
compound. Apply the compound to the
threads and on the small face that con-
tacts the inside of the stufng box (Fig-
ure 96). Place the assembly into the stuff-
ing box. Hand-tighten the gland.

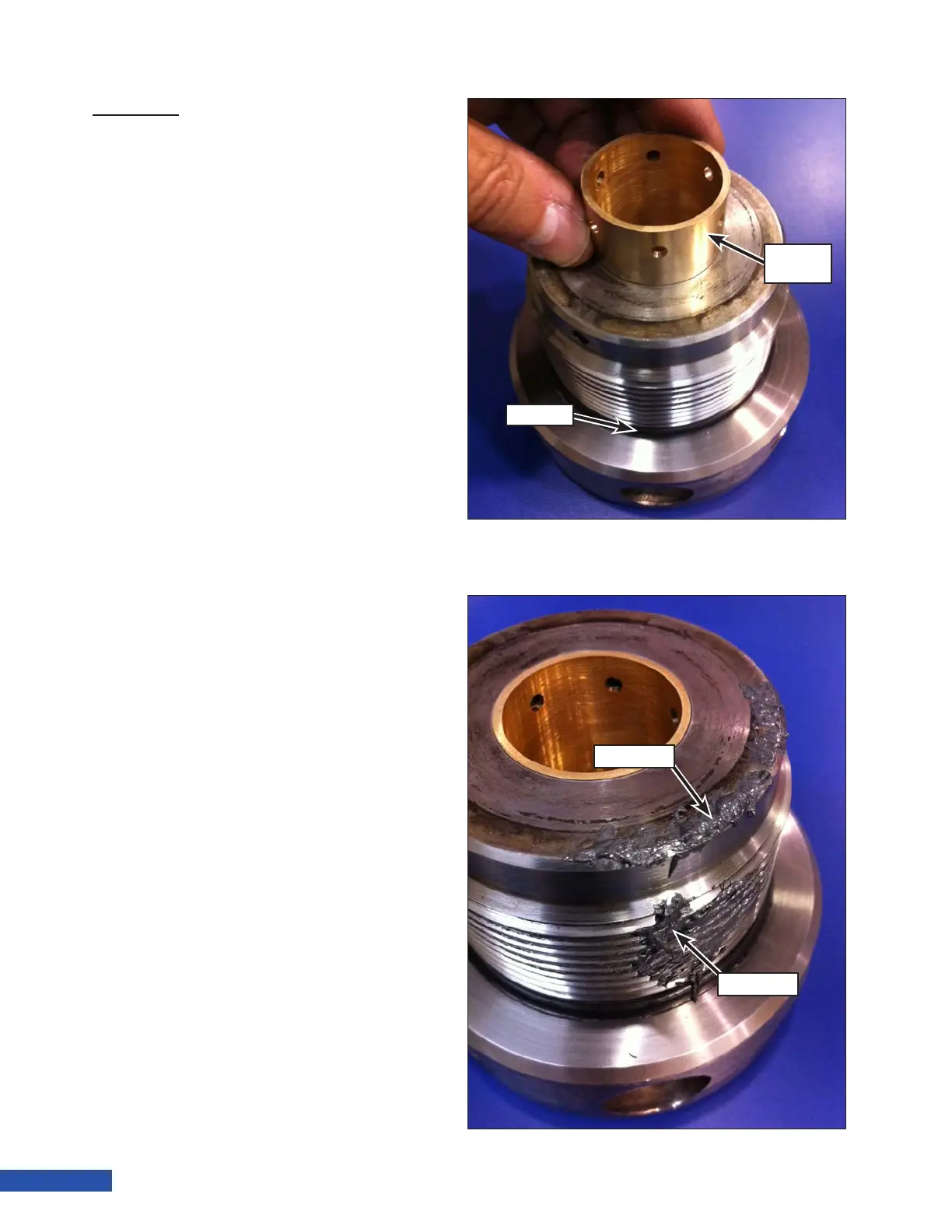

Figure 96: Applying Anti-Seize.
Figure 95: Guide Bushing Installation.
Guide
Bushing
O-Ring
Anti-Seize
Anti-Seize
