SECTION 3 - MACHINE CONTROLS, INDICATORS, AND MACHINE OPERATION
3-4 31217162
• AC Power On: Blue LED on
• Low State of Charge: Bottom Panel - Green LED flashing;
Top Panel - Green LED off
• High State of Charge: Bottom Panel - Green LED on;
Top Panel - Green LED flashing
• Charge Complete: Bottom Panel - Green LED on;
Top Panel - Green LED on
• Fault Indicator: Red LED on
• External Error Condition Caution: Amber LED flashing
• (1) Charging (Low State of Charge): Green LED slow flash
• (2) Charging (High State of Charge): Green LED fast flash
• (3) Full Charge (100%): Solid green LED
• (4) Charger Fault: Amber LED rapid flash
• (5) LED Light
• No AC Current: LED is off

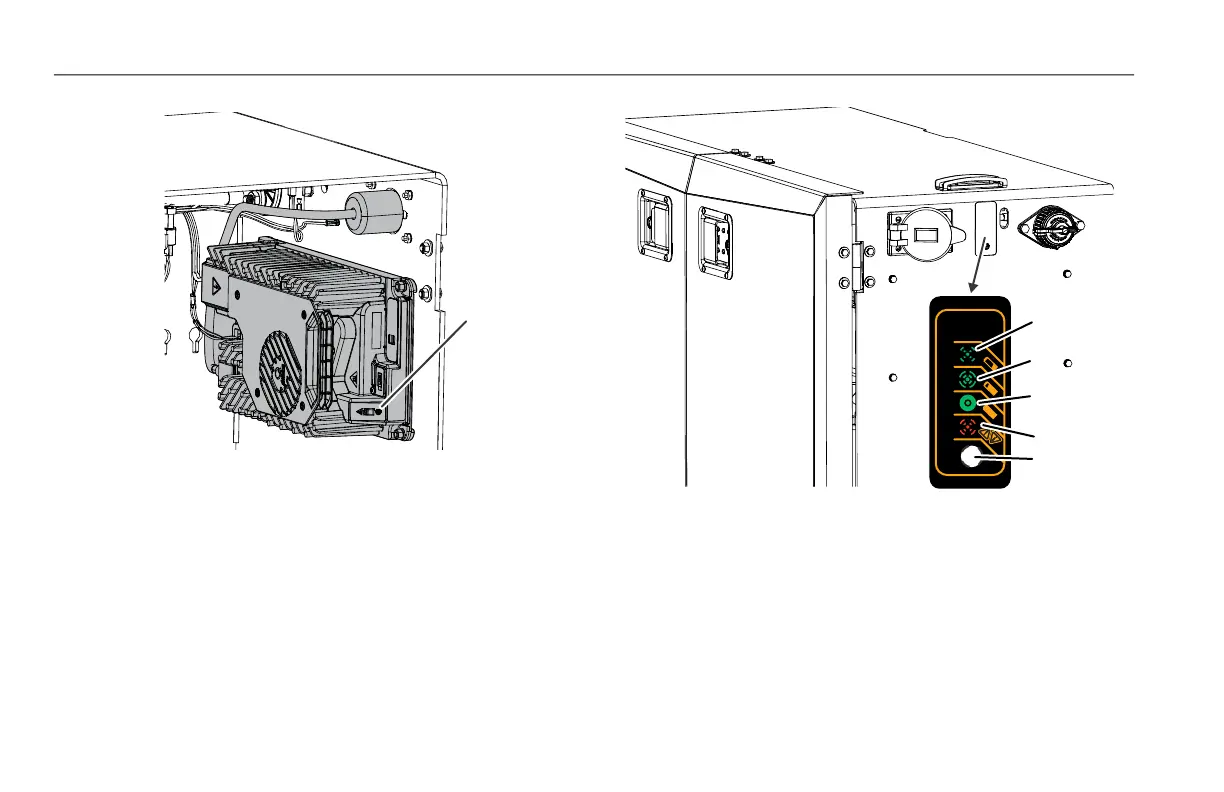

3. LED Indicator Panel
1
OAD02470
OAD02810
1
2
3
4
5
