SECTION 3 - MACHINE CONTROLS, INDICATORS, AND MACHINE OPERATION
31217162 3-9

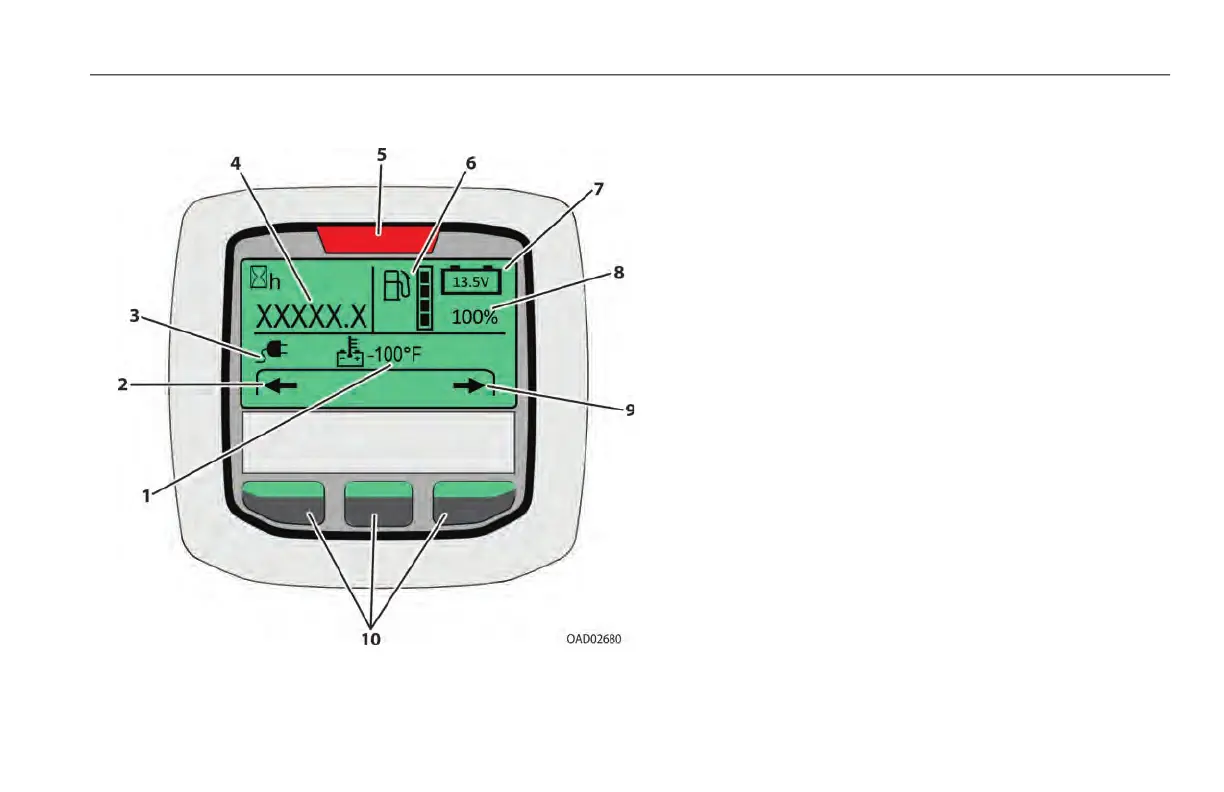

Display Gauge
1. Battery Temperature Indicator
2. Navigate Back Arrow
3. Charger Connected Indicator (ERT Machines Only)
4. Machine Hours
5. Indicator Lamp (Fault)
6. Fuel Level Indicator (RT Machines Only)
7. Control System Voltage (12V System)
8. State-of-Charge Indicator (48V System) (ERT Machines Only)
9. Navigate Forward Arrow
10. Navigation Buttons
