SECTION 3 - MACHINE CONTROLS, INDICATORS, AND MACHINE OPERATION
31217162 3-3
3.5 BATTERY CHARGING (ERT MACHINES)
NOTE: Park the machine in a well-ventilated area before charging.
1. Connect the charger AC input plug to a grounded outlet
using a 3 wire heavy duty extension cord.
2. The charge cycle is complete when the single green LED
light on the hood between the AC plug and battery discon-
nect becomes solid green. Additionally, the green LEDs on
the top and bottom panels of the battery charger illuminate.
ONLY PLUG THE CHARGER INTO A PROPERLY INSTALLED AND GROUNDED OUTLET. DO
NOT USE GROUND ADAPTERS OR MODIFY PLUG IN ANY WAY. DO NOT TOUCH NON-
INSULATED PORTION OF OUTPUT CONNECTOR OR NON-INSULATED BATTERY TERMI-
NAL.
DO NOT OPERATE CHARGER IF THE AC SUPPLY CORD IS DAMAGED, OR IF THE CHAR-
GER HAS RECEIVED A SHARP BLOW, BEEN DROPPED, OR OTHERWISE DAMAGED IN
ANY WAY.
ALWAYS DISCONNECT THE CHARGER AC SUPPLY BEFORE MAKING OR BREAKING THE
POSITIVE/NEGATIVE CONNECTIONS TO THE BATTERY.
DO NOT OPEN OR DISASSEMBLE CHARGER.

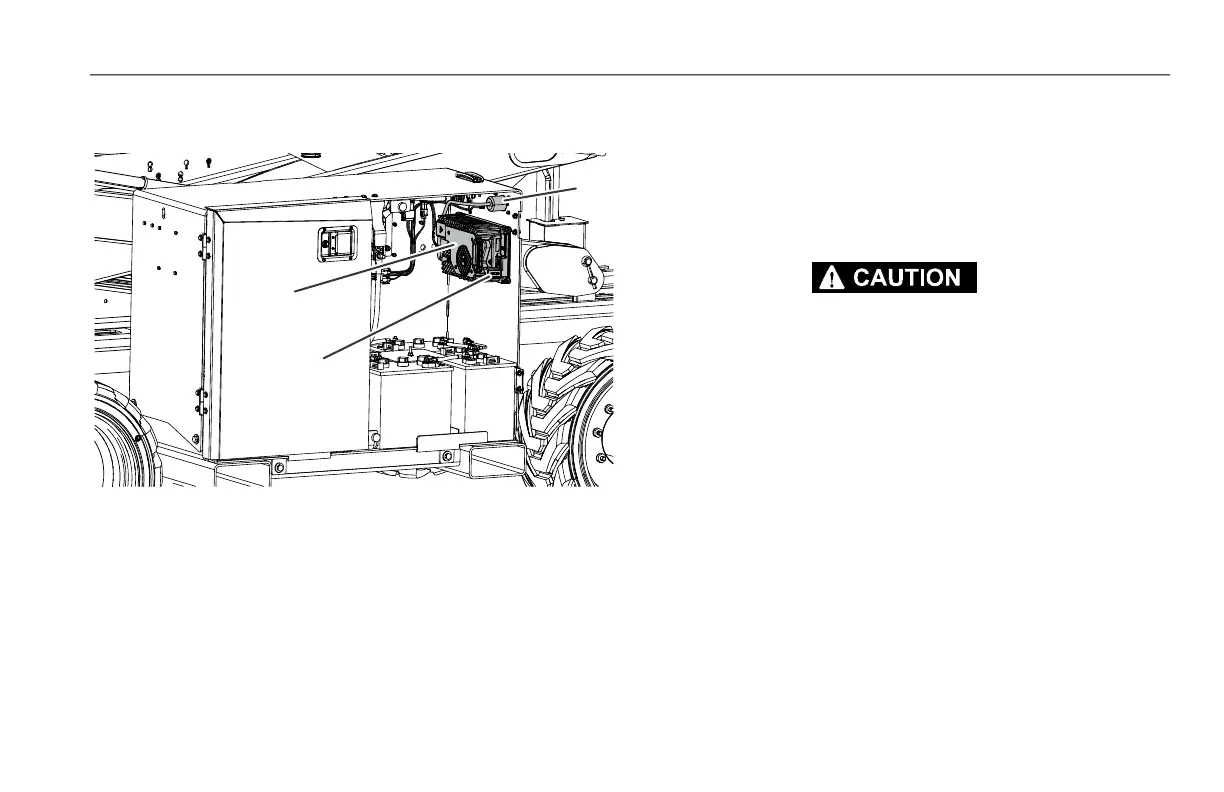

1. AC Input Plug
2. Charger Assembly
3. LED Indicator Panel
