JLG RT3369 - ERT Machines Platform Control Station

SECTION 3 - MACHINE CONTROLS, INDICATORS, AND MACHINE OPERATION
3-12 31217162
ERT Machines

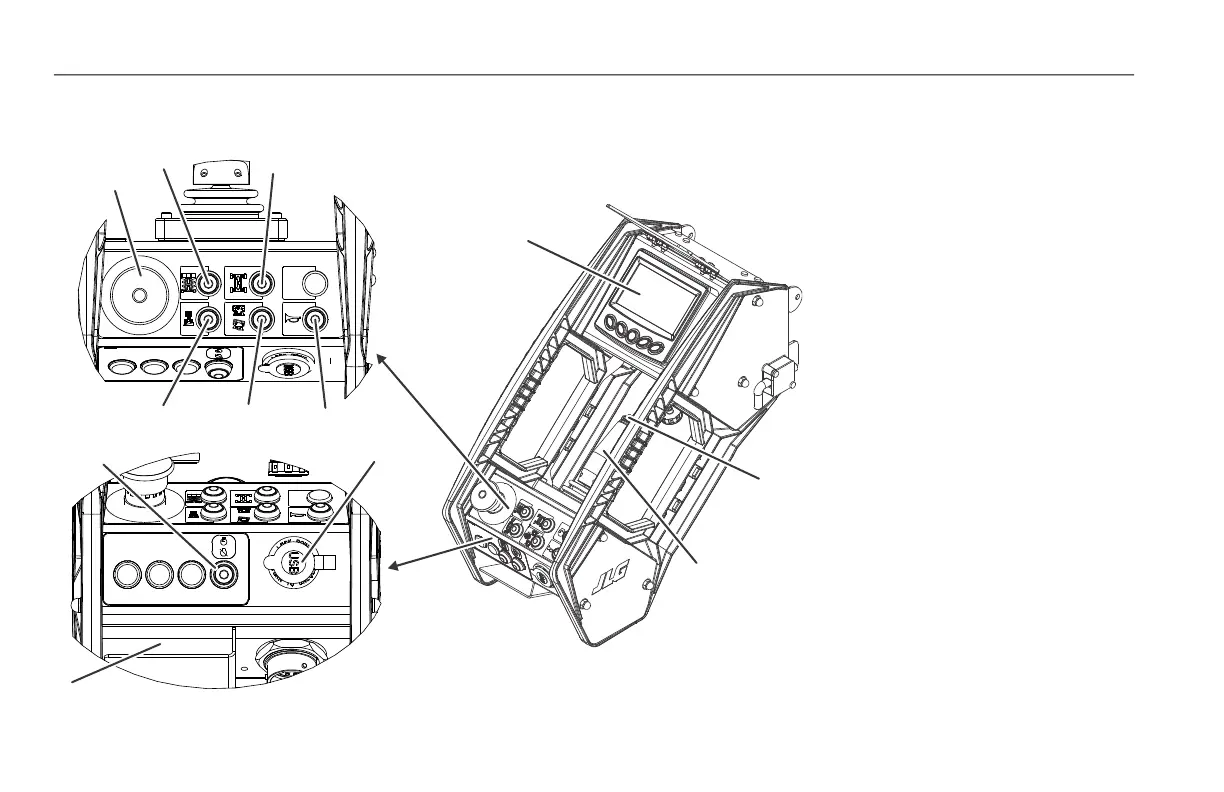

1. Emergency Stop Switch
2. Lift Select Switch
3. Drive Select Switch
4. Not Used
5. Horn
6. Speed Select Switch
7. Leveling Jacks Switch (If Equipped)
8. Mobile Phone Slot
9. Not Used
10. Not Used
11. USB Charge Port
12. Indicator Display
13. Steer Control Switch
14. Joystick Controller with Trigger
(Enable) Switch
15. Genset Enable Switch (If Equipped)
