JR Vigor CS User Manual

11
2-1A

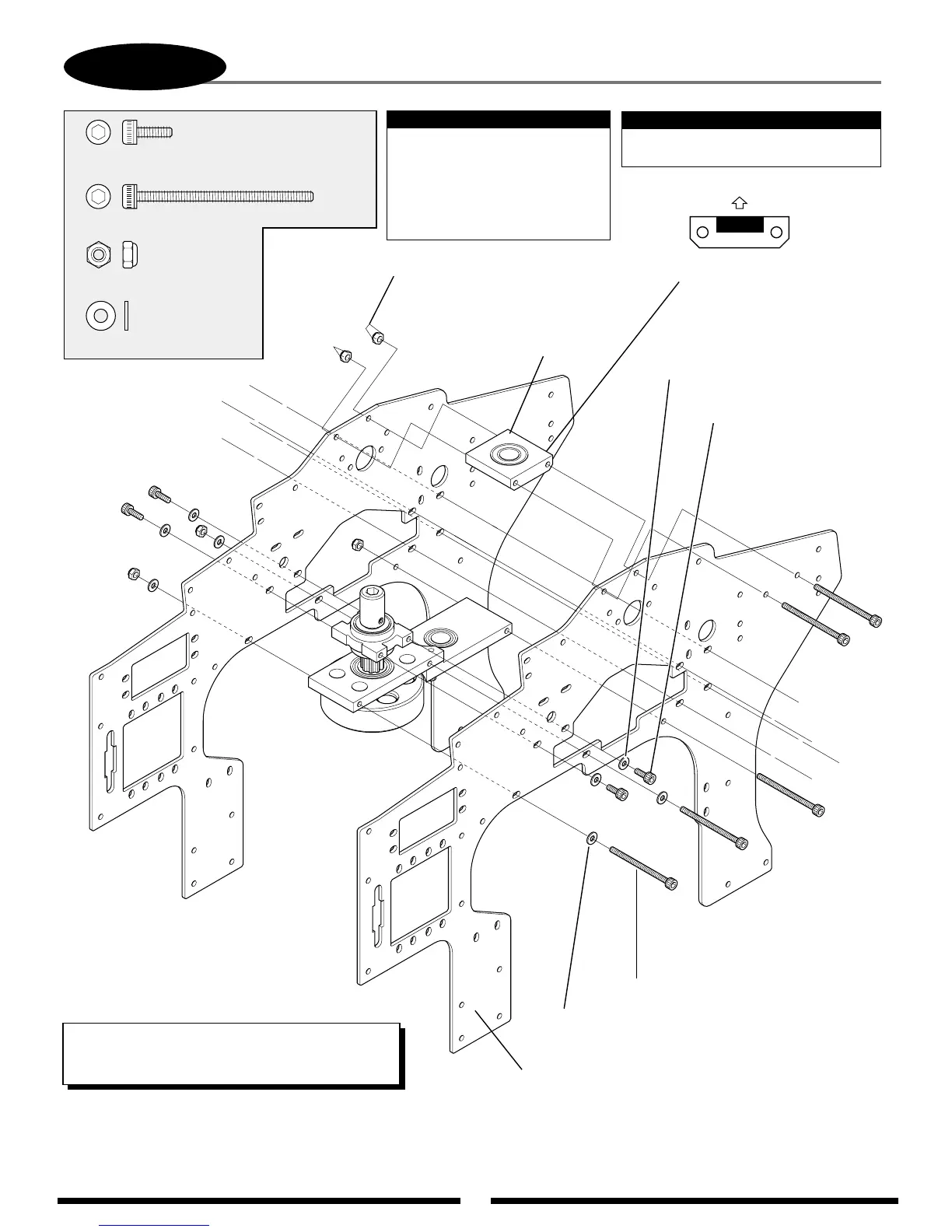

MAIN FRAME ASSEMBLY: BEARING BLOCK/CLUTCH INSTALLATION
Socket Head Bolt, 3 x 8 mm
Socket Head
Bolt, 3 x 8 mm (12 pcs)
Socket Head Bolt, 3 x 40 mm (5 pcs)
Socket Head Bolt, 3 x 40 mm
Nylon Lock Nut, 3 mm
Nylon Lock Nut, 3 mm (5 pcs)
Top Bearing Case
Main Frame (2 pcs)
Flat Washer, 3 mm
Flat Washer, 3 mm (5 pcs)
Flat Washer, 3 mm (12 pcs)
.....................................4 pcs
...5 pcs
..................5 pcs
..................8 pcs
*
*
*
*
*
*
*
*
*TEAM TIP: Don’t tighten bolts completly at this
time. These bolts will be tightened in Step 3-8 to
achieve proper alignment.
Positon so that bearing faces upward.
Note:
Top Bearing Case Direction
Up
Prior to assembling the main
frames, sand all edges of the
frame using 120 grit sandpaper.
This will prevent wire chaffing
during continuous operation.
Note:
*
