JR Vigor CS User Manual

55
7-6

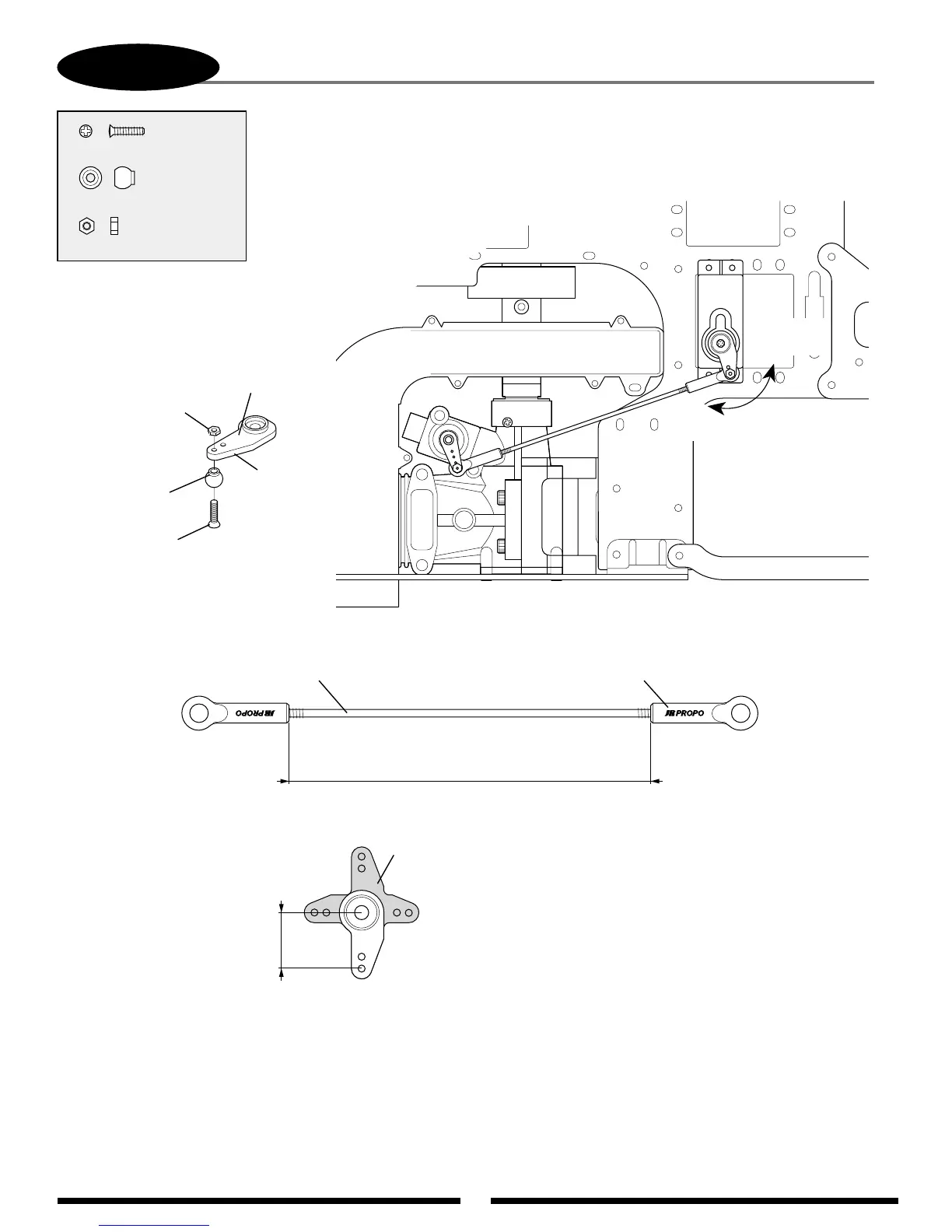

THROTTLE LINKAGE CONNECTION
..............1 pc
Flat Head Screw, 2 x 8 mm
.................1 pc
Steel Joint Ball
....................1 pc
Hex Nut, 2 mm
High
Throttle
Low
Throttle
12.5 mm
Universal Link (2 pcs)Control Rod, 2.3 x 100 mm
82 mm (approximate)
Flat Head Screw,
2 x 8 mm
Steel Joint Ball
Hex Nut, 2 mm
Servo Horn
Attach the
joint ball to
the outside
of the servo
arm.
Remove
shaded area.
JR
*Option: For smooth operation,
pre-size the ball links with the
JR ball link sizing tool prior to
attachment.
