1. XP8103 SYSTEMS
1) With the radio power switch on, press the Up and Down keys simultaneously to enter the function mode.
2) Press the Up key until “Sub Trim” appears on the screen.
3) Adjust the left (aileron), right (Aux 1), and top (elevator) servos as needed until the servo arm is exactly
parallel to the servo as shown when the collective stick is in the center position. It will be necessary to press
the SEL key once to access the right servo (Aux 1) sub-trim.
4) Press the Up and Down keys simultaneously to exit the function mode.

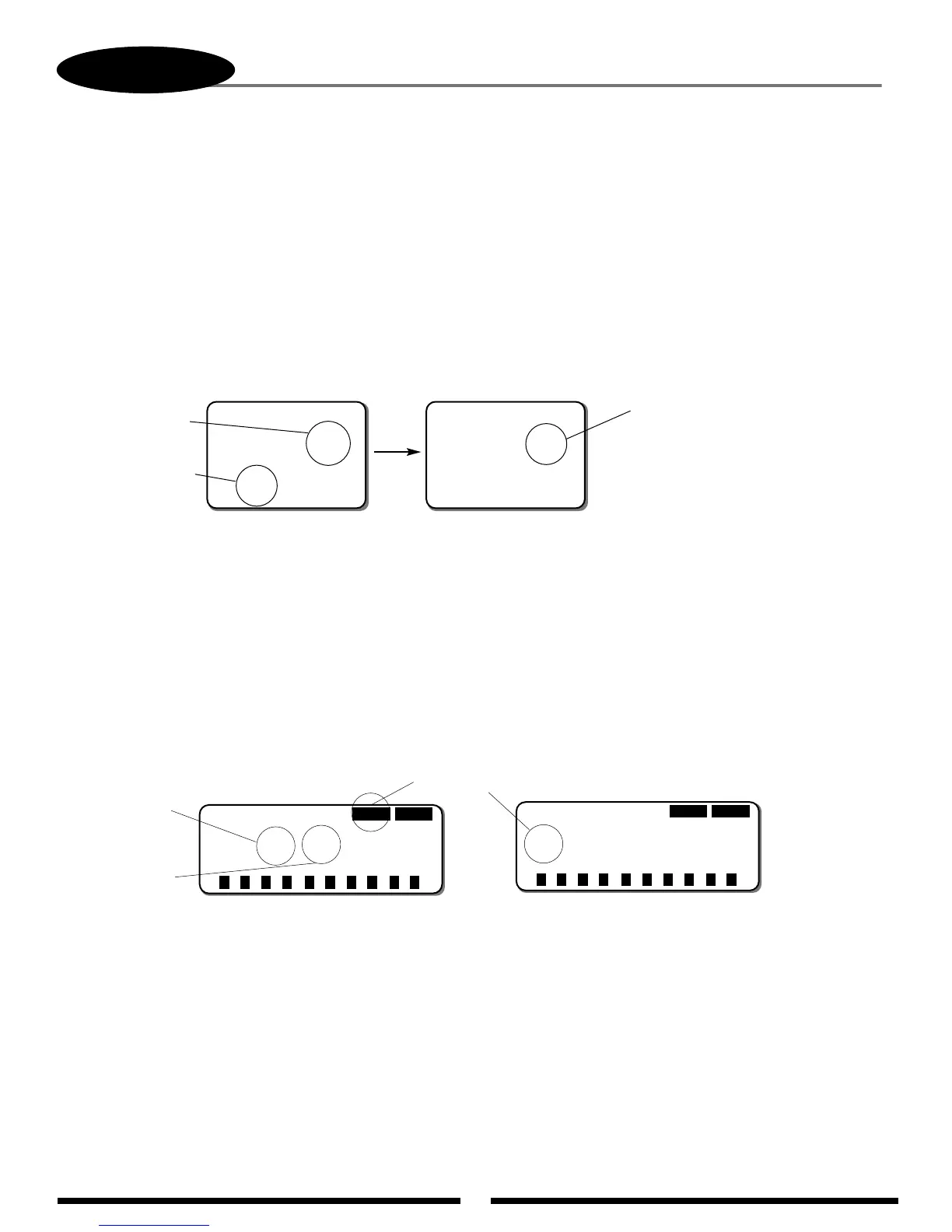

[Sub Trim]
£THRO ∞AILE
00
ELEV RUDD
00
[Sub Trim]
£GEAR ∞ PIT.
00
AUX2 AUX3
00
Increase or decrease
the value to center the
front servo.
Increase or decrease
the value to center the
right servo.
Increase or decrease
the value to center the
left servo.
SEL
2. JR PCM10, 10S, 10SX, 10SXII, 10X SYSTEMS
1) Enter the sub-trim function (code 15).
2) Adjust the left (aileron), right (Aux 1) and top (elevator) servos as needed until the servo arm is exactly
parallel to the servo as shown when the collective stick is in the center position. It will be necessary to press
the Page button to access the right servo (Aux 1) sub-trim value.
3) Press Enter to exit the sub-trim function.
[SUB TRIM]
THRO AILE ELEV RUDD GEAR
00000
ENTERPAG E
+ –
CL
+ –
CL
+ –
CL
+ –
CL
+ –
CL
Press Page to
access the second
screen.
Increase or decrease
the value to center the
left servo.
Increase or decrease
the value to center the
front servo.
[SUB TRIM]
PIT. AUX2 AUX3 AUX4 AUX5
00000
ENTERPAG E
+ –
CL
+ –
CL
+ –
CL
+ –
CL
+ –
CL
Increase or decrease the value to
center the right servo.
It may be necessary to make minor servo centering adjustments with the use of the sub-trim function to
achieve the desired servo arm positions. Please refer to your particular radio’s section as listed below or consult
your radio instruction manual for more information.
