2-6

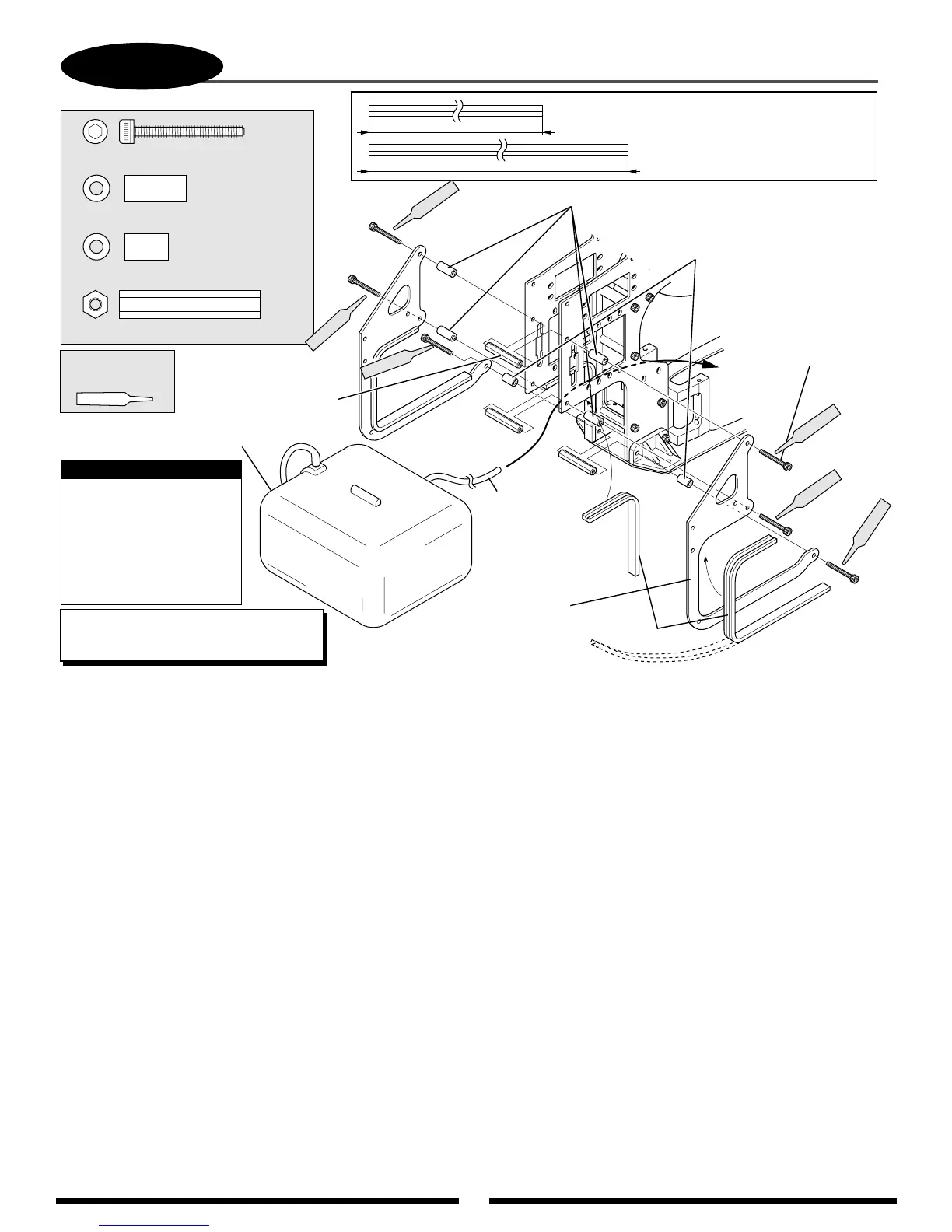

FUEL TANK INSTALLATION
Socket Head Bolt, 3 x 25 mm
Socket Head
Bolt, 3 x 25 mm (6 pcs)
* Tank Mounting Rubber
Tank Frame
Spacer, 3 x 6 x 14 mm
Spacer, 3 x 6 x 14 mm (4 pcs)
Spacer, 3 x 6 x 10 mm
Spacer, 3 x 6 x 10 mm (2 pcs)
Cross Member, 32 mm
Cross Member,
32 mm (3 pcs)
3 pcs
....6 pcs
...................4 pcs
.......................2 pcs
* Cut the tank mounting rubber to
a length as shown from the two
pieces included with the kit.
120 mm
210 mm
*
Fuel Tank
Use Red
Threadlock
Attach fuel
line to tank
prior to
installation.
*
TEAM TIP: Insert 32 mm crossmembers
before installing the fuel tank.
Red
R
ed
Red
Red
Red
Red
If a YS engine is to be
used, replace the
existing tank mounting
rubber with Aerotrend
large fuel tubing or
equivalent.
* Note:
To Next Page
