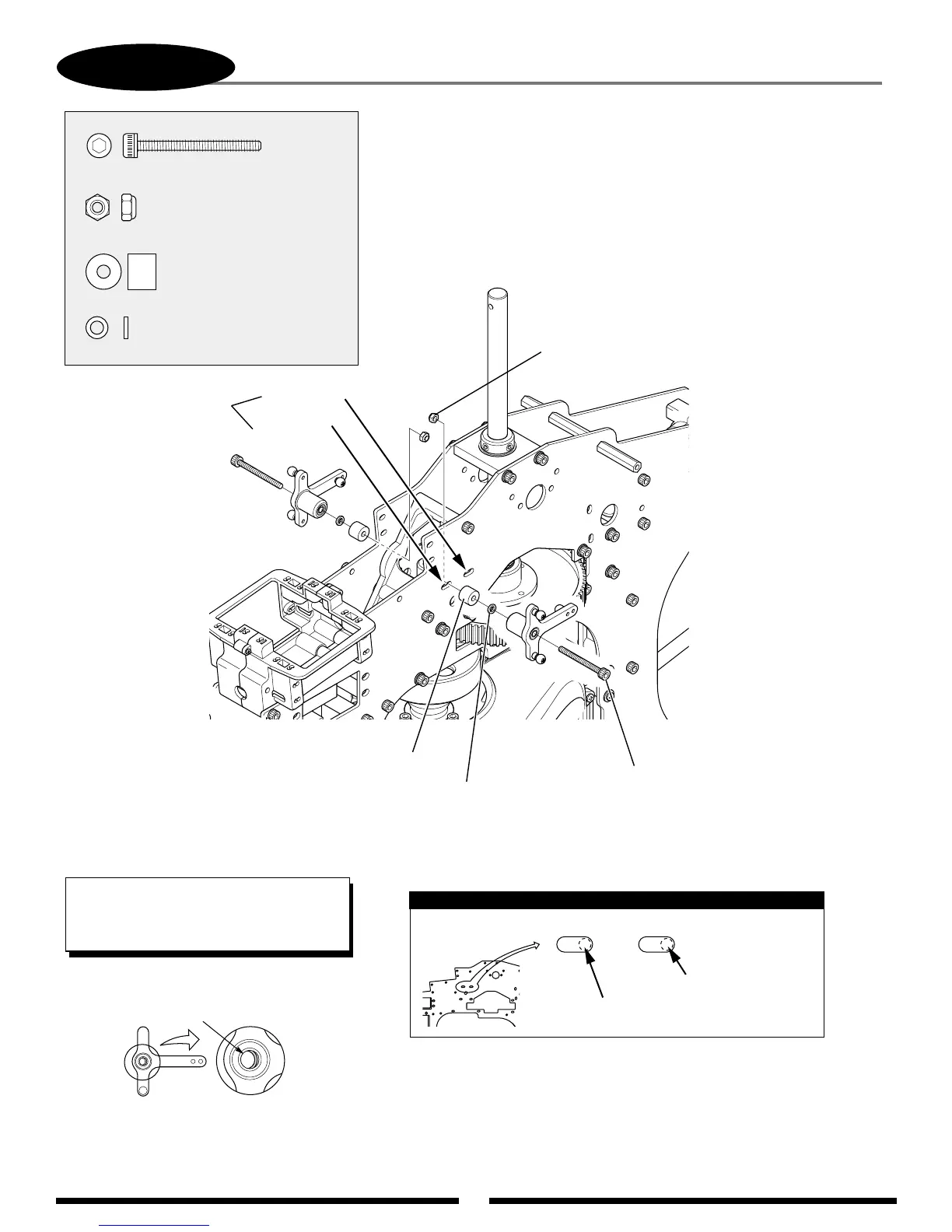

T-LEVER INSTALLATION
2-3A
Socket Head Bolt, 3 x 28 mm (2 pcs)
Nylon Lock Nut, 3 mm (2 pcs)
Mixing Lever Spacer (2 pcs)
Spacer, 3 x 5 x 1 mm (2 pcs)
140 CCPM
120 CCPM
Socket Head Bolt, 3 x 28 mm
Nylon Lock Nut, 3 mm
....2 pcs
......................................2 pcs
Mixing Lever Spacer
...............................2 pcs
..................................... 2 pcs
Spacer, 3 x 5 x 1 mm
T-Lever Positions
If a collar in T arm is too one-
sided, please correct the collar to
center before inserting the bolts.
140 CCPM/Standard Range
120 CCPM/Standard Range
T-Lever Position on Main Frame Slots
Note:
TEAM TIP: If you have difficulty reaching the
3 mm T-lever nuts, remove the two top bolts
from the plastic crossmember and slide the
crossmember forward.
