JR Vigor CS User Manual

15
2-3B

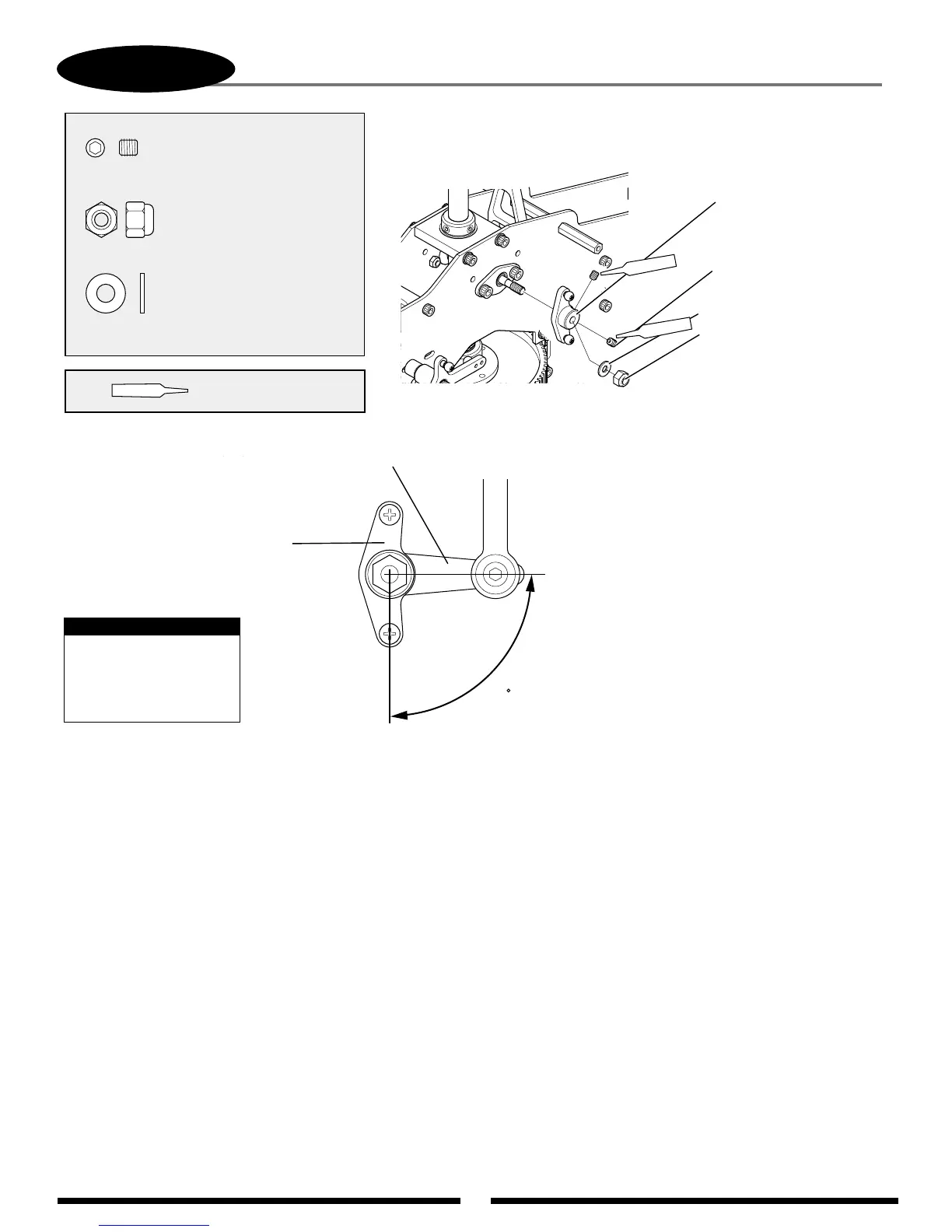

ELEVATOR CONTROL ARM INSTALLATION
Elevator Control Arm
*Standard Range Direction
Nylon Lock Nut, 4 mm
Flat Washer, 4 mm
Set Screw, 4 x 4 mm
90
Nylon Lock Nut, 4 mm
..................................1 pc
Flat Washer, 4 mm
...................................1 pc
Set Screw, 4 x 4 mm
....................................2 pcs
Use Red
Threadlock
Elevator
Control Arm
A-Arm Base
Make sure that the
elevator control arm
is installed so that it is
90° to the A-arm base.
Note:
Red
Red
