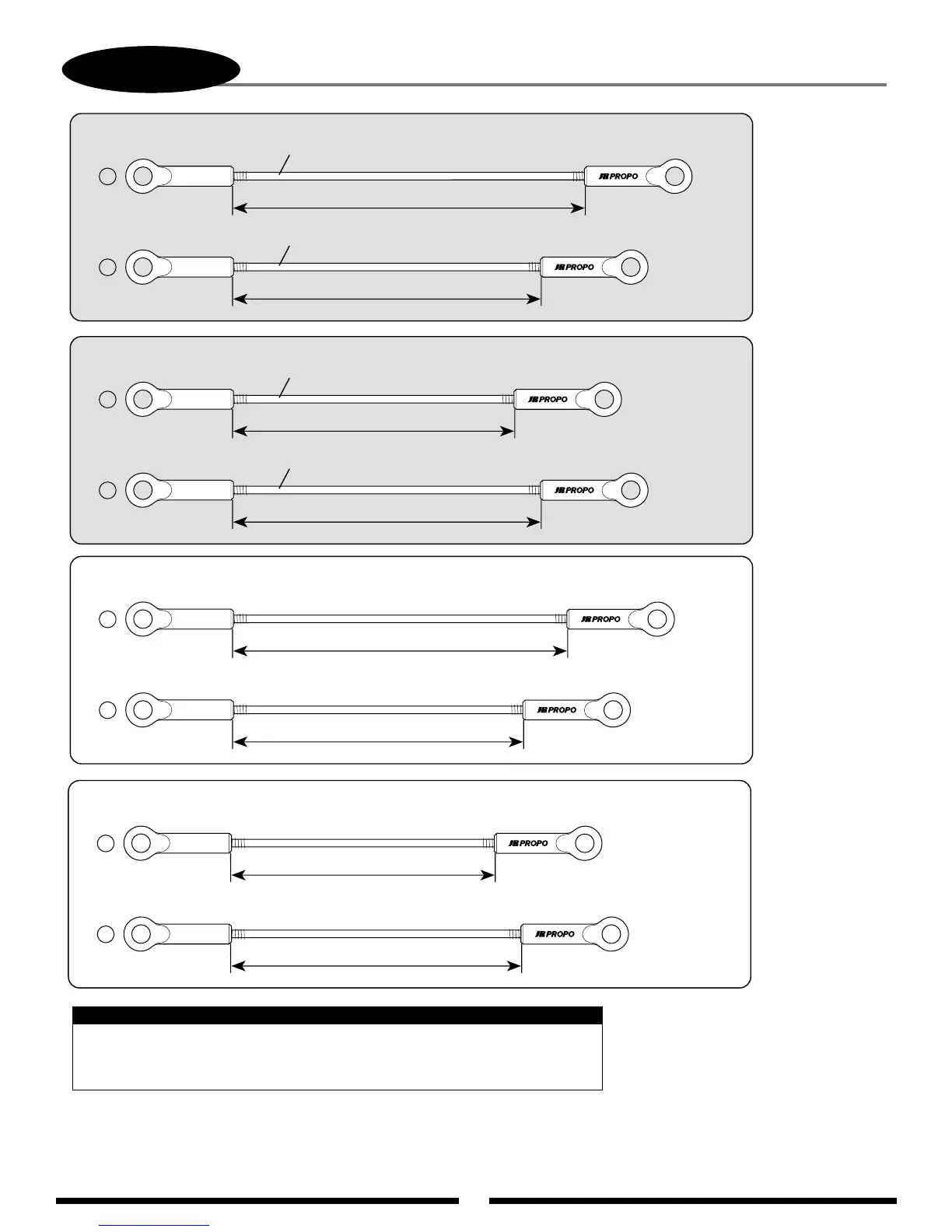

CONTROL ROD ASSEMBLY
Control Rod, 2.3 x 80 mm
.........4 pcs
.........2 pcs
A
60 mm
Control Rod, 2.3 x 85 mm
B
66 mm
140Wide Range
140Standard Range (For 10X Systems only)
Control Rod, 2.3 x 80 mm
.........4 pcs
.........2 pcs
A
64.5 mm
Control Rod, 2.3 x 85 mm
B
70.5 mm
120Wide Range
Control Rod, 2.3 x 95 mm
.........4 pcs
.........2 pcs
A
76 mm
Control Rod, 2.3 x 85 mm
B
66 mm
120Standard Range (For 8103 and 10 Series Systems)
Control Rod, 2.3 x 95 mm
.........4 pcs
.........2 pcs
A
64.5 mm
Control Rod, 2.3 x 85 mm
B
70.5 mm
All instructions are based on the use of the "standard range" CCPM setup.
It is not recommended that the "wide range" setup be used.
