JR Vigor CS User Manual

33

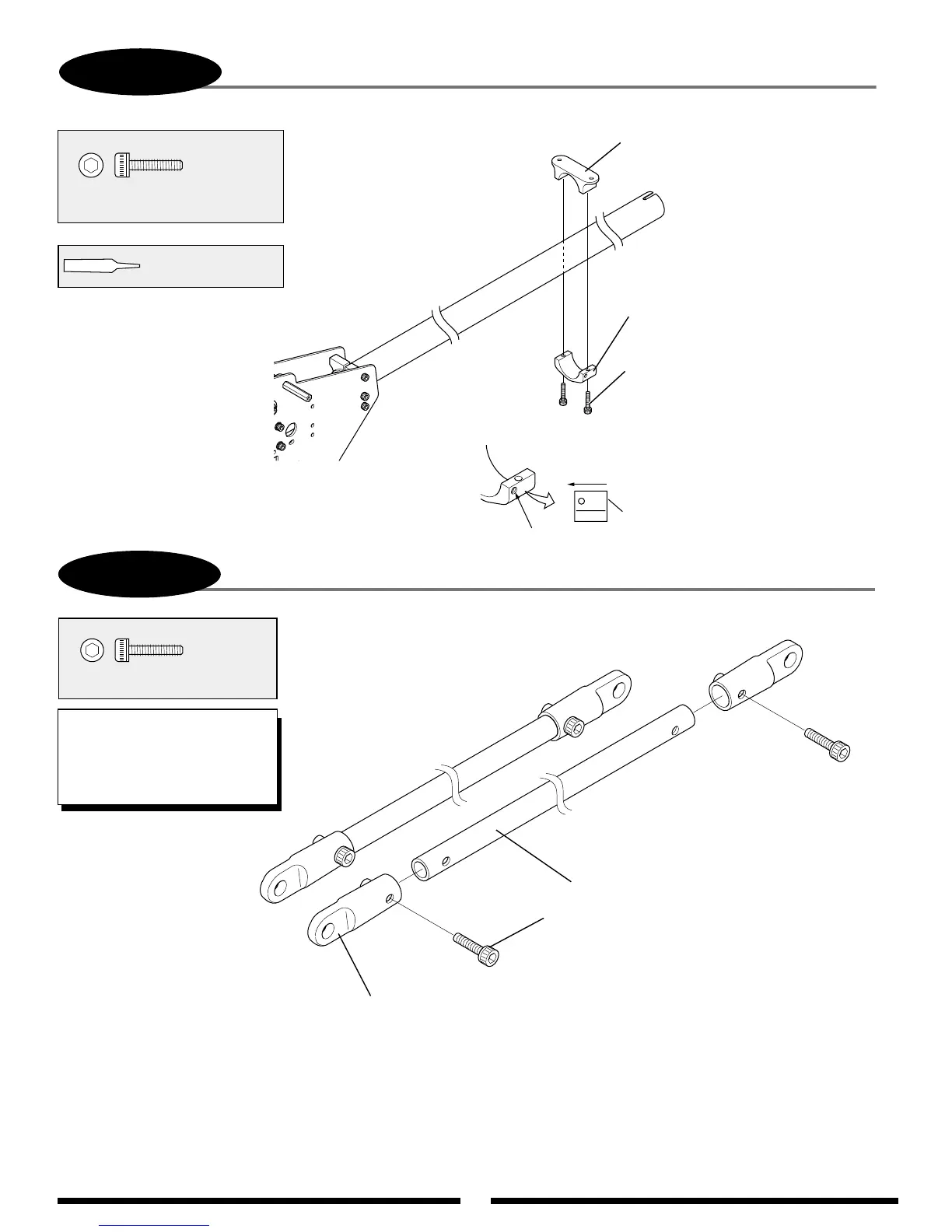

Aluminum Tail Support
Clamp, Upper
Aluminum Tail Support
Clamp, Lower
Socket Head Bolt,
3 x 12 mm (2 pcs)
*Do not tighten bolts
completely at this time.
5-5
TAIL SUPPORT CLAMP INSTALLATION
Socket Head Bolt, 3 x 12 mm
......... 2 pcs
Use Red Threadlock
5-6
5-6
TAIL BOOM BRACE ASSEMBLY
Socket Head Bolt, 2.6 x 12 mm
Socket Head Bolt, 2.6 x 12 mm (4 pcs)
Tail Brace Tube
Tail Brace Connector (4 pcs)
...........4 pcs
TEAM TIP: It is suggested that
the Tail Brace Connectors be
bonded to the Tail Brace Tubes
using either thick CA adhesive,
or JB Weld.
Tail Support Clamp Direction
FRONT
Note offset in bolt hole location.
