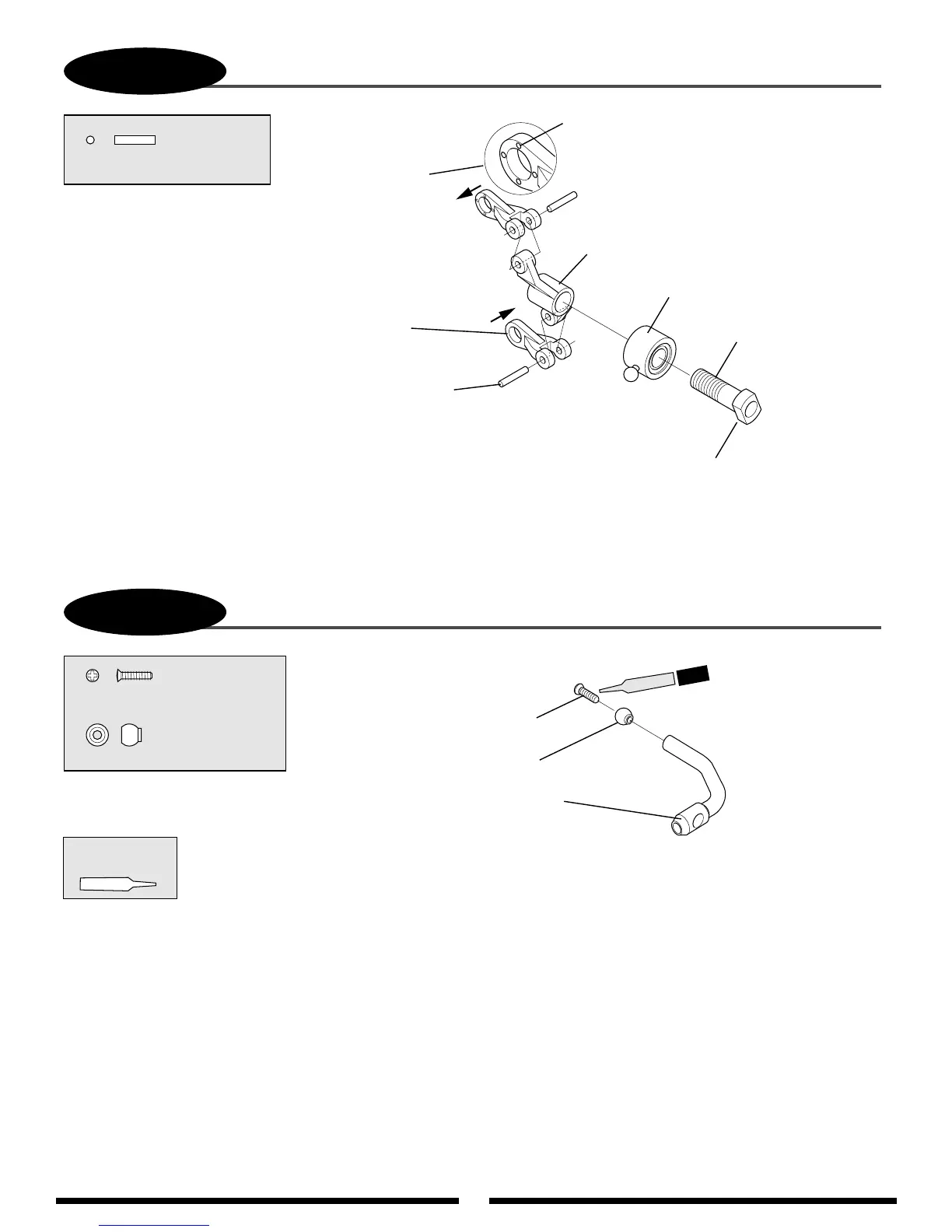

ASSEMBLY PROCESS – TAIL SLIDE RING
P-8
ASSEMBLY PROCESS – FLYBAR CONTROL ARM
2 pcs
Tail Pitch Link Pin
Tail Pitch Link Pin (2 pcs)
Tail Pitch Link (2 pcs)
Tail Slide Ring Sleeve
Tail Slide Ring Collar w/Bearing
Tail Pitch Plate
..................2 pcs
Be sure to center Pin
between pitch link ears
when installing.
Make two flybar control arms.
Installing with four
moulded circle marks
in link facing in the
direction of arrow as
shown.
Tail slide ting sleeve is
reverse (left hand) thread.
Use caution when
installing.
Circle Marks
Flat Head Screw, 2 x 8 mm
Flat Head Screw, 2 x 8 mm (2 pcs)
........................2 pcs
Steel Joint Ball
Steel Joint Ball (2 pcs)
Flybar Control Arm
...........................2 pcs
Use Red
Threadlock
Red
