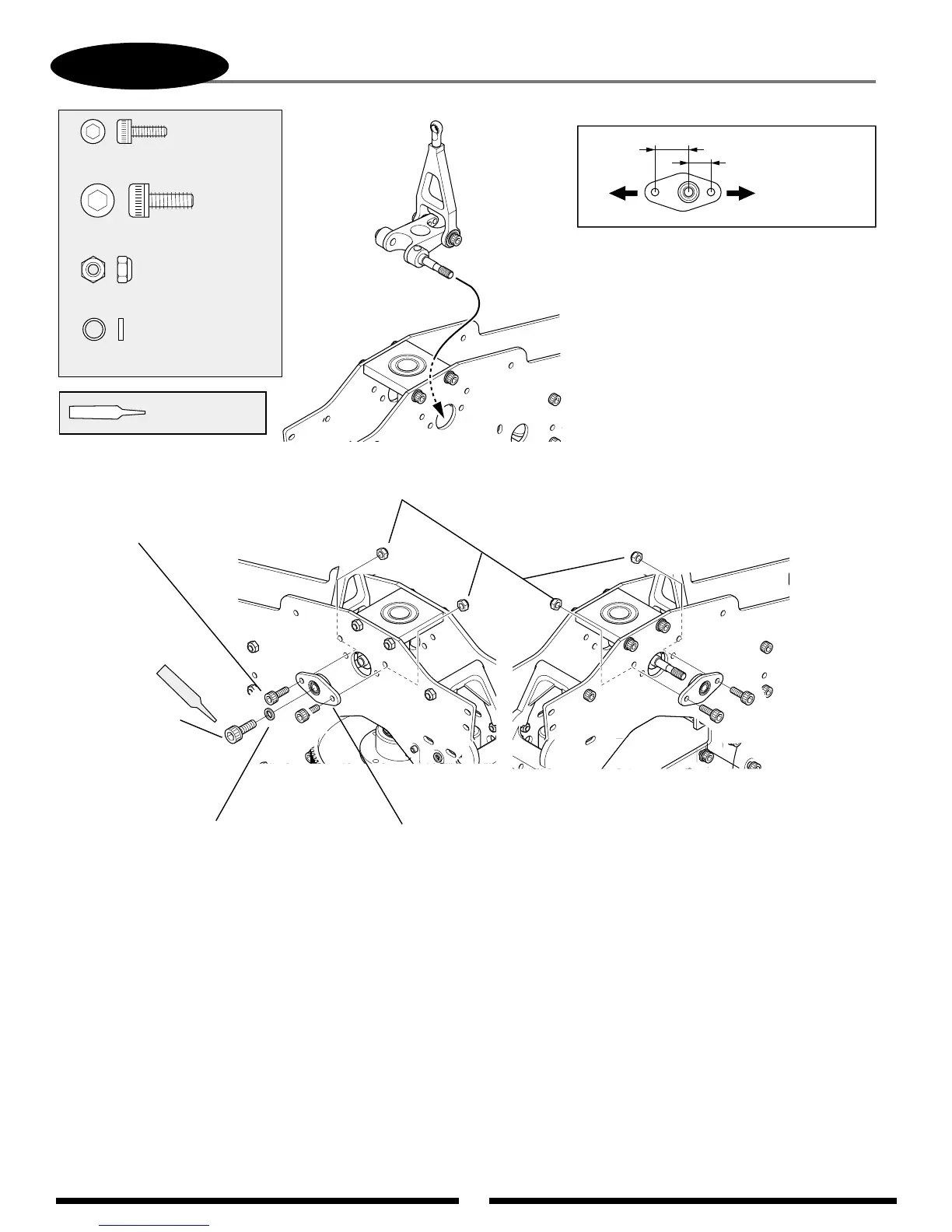

ELEVATOR ARM INSTALLATION
Direction of Installation
Standard Range
Long
Front
Rear
Short
Socket Head Bolt, 3 x 8 mm
Nylon Lock Nut, 3 mm
...............4 pcs
.......................4 pcs
........................ 1 pc
Spacer, 4 x 5 x 1 mm
Socket Head Bolt, 4 x 10 mm
........1 pc
Socket Head
Bolt 4 x 10 mm
Nylon Lock Nut, 3 mm (4 pcs)
Spacer, 4 x 5 x 1 mm
Socket Head Bolt, 3 x 8 mm (4 pcs)
Red
Use Red
Threadlock
Elevator Arm Bearing Case (2 pcs)
