JR Vigor CS User Manual

19
2-7

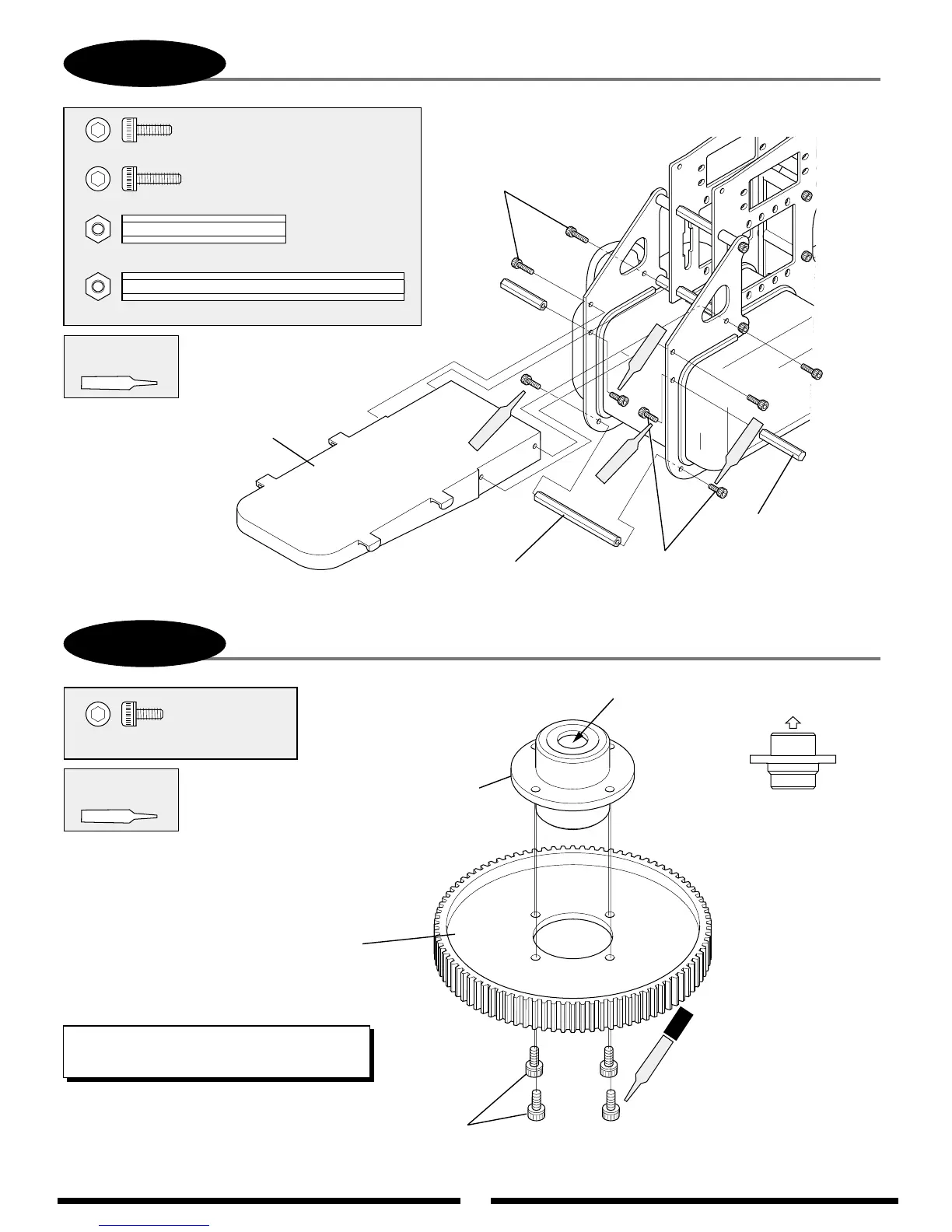

FRONT RADIO BED INSTALLATION
3-1A
MAIN DRIVE GEAR/AUTOROTATION ASSEMBLY
Socket Head Bolt 3 x 8mm
Socket Head Bolt, 3 x 6 mm
Main Drive Gear
Autorotation Assembly
Autorotation Assembly
Direction
(Note correct direction
during assembly.)
Socket Head Bolt, 3 x 6 mm (4 pcs)
(Tighten equally to prevent warping of main drive gear)
Socket Head Bolt, 3 x 8 mm (4 pcs)
Socket Head Bolt, 3 x 10 mm (4 pcs)
Socket Head Bolt 3 x 10 mm
Body Mounting Standoff 32 mm
Body Mounting
Standoff, 32 mm (2 pcs)
Cross Member 64 mm
Cross Member, 64 mm
Front Radio Bed
................................................4 pcs
..............................................4 pcs
...................2 pcs
...................4 pcs
.......1 pc
Up
*Apply a light
coating of grease to
torrington bearing.
Use Red
Threadlock
Use Red
Threadlock
*TEAM TIP: Apply a light coating of high speed
grease to the inside of the torrington bearing.
Red
Red
Red
Red
Red
4pcs
