70
P-3

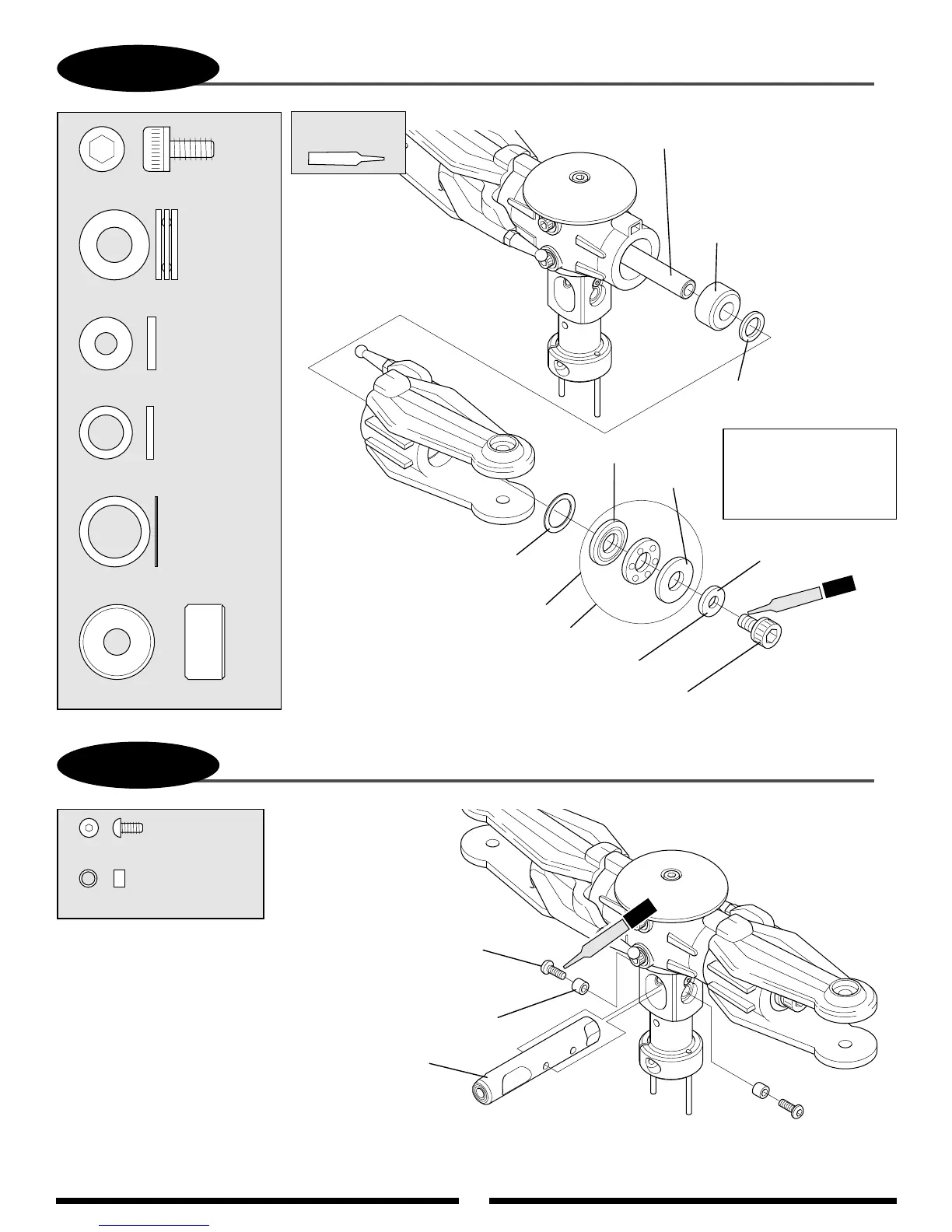

ASSEMBLY PROCESS PARTS MAIN ROTOR HEAD 3
P-4
ASSEMBLY PROCESS - MAIN ROTOR HEAD 4
2 pcs
Thrust Bearing, 8 x 16 x 5 mm
Thrust Bearing, 8 x 16 x 5 mm (2 pcs)
..............2 pcs
Spindle Washer (Black)
...................2 pcs
Blade Holder Spacer (Silver)
...................2 pcs
Washer, 12 x 16 x 0.5 mm
..................2 pcs
Socket Head Bolt, 5 x 10 mm
Socket Head Bolt, 5 x 10 mm (2 pcs)
.....2 pcs
Blade Dampener Rubber (#50)
...2 pcs
Spindle Washer (Black) (2 pcs)
Blade Holder
Spacer (Silver)(2 pcs)
Blade Spindle Shaft
Blade Dampener Rubber (2 pcs)
(check after approx. 30-50
flights and replace as needed)
Washer, 12 x 16 x 0.5 mm (2 pcs)
Large I.D.
Small I.D.
Be sure to note correct
placement of
large/small I.D. thrust
washers during
assembly.
Button Head Bolt, 3 x 5 mm
Button Head Bolt, 3 x 5 mm (2 pcs)
Seesaw Spacer Collar
Seesaw Spacer Collar (2 pcs)
Seesaw Assembly
...................2 pcs
.......................2 pcs
Be sure to note correct
placement of the front
and the back of the
seesaw assembly.
2 pcs
Red
Red
Use Red
Threadlock
Grease thrust bearings
before assembly
Grease thrust bearings
during assembly to prolong life
*
*
