JR Vigor CS User Manual

34
Spacer, 3 x 8 x 6.5 mm (2 pcs)
Socket Head Bolt
3 x 22 mm (2 pcs)
2 pcs
Red
Flat Washer, 3 mm (2 pcs)
Flat Washer
3 mm (2 pcs)
Socket Head
Bolt, 3 x 8 mm (2 pcs)
Red
Aluminum Tail Support Clamp, Lower
Socket Head Bolt, 3 x 12 mm (2 pcs)
*Do not tighten bolts completely at this time.
5-8

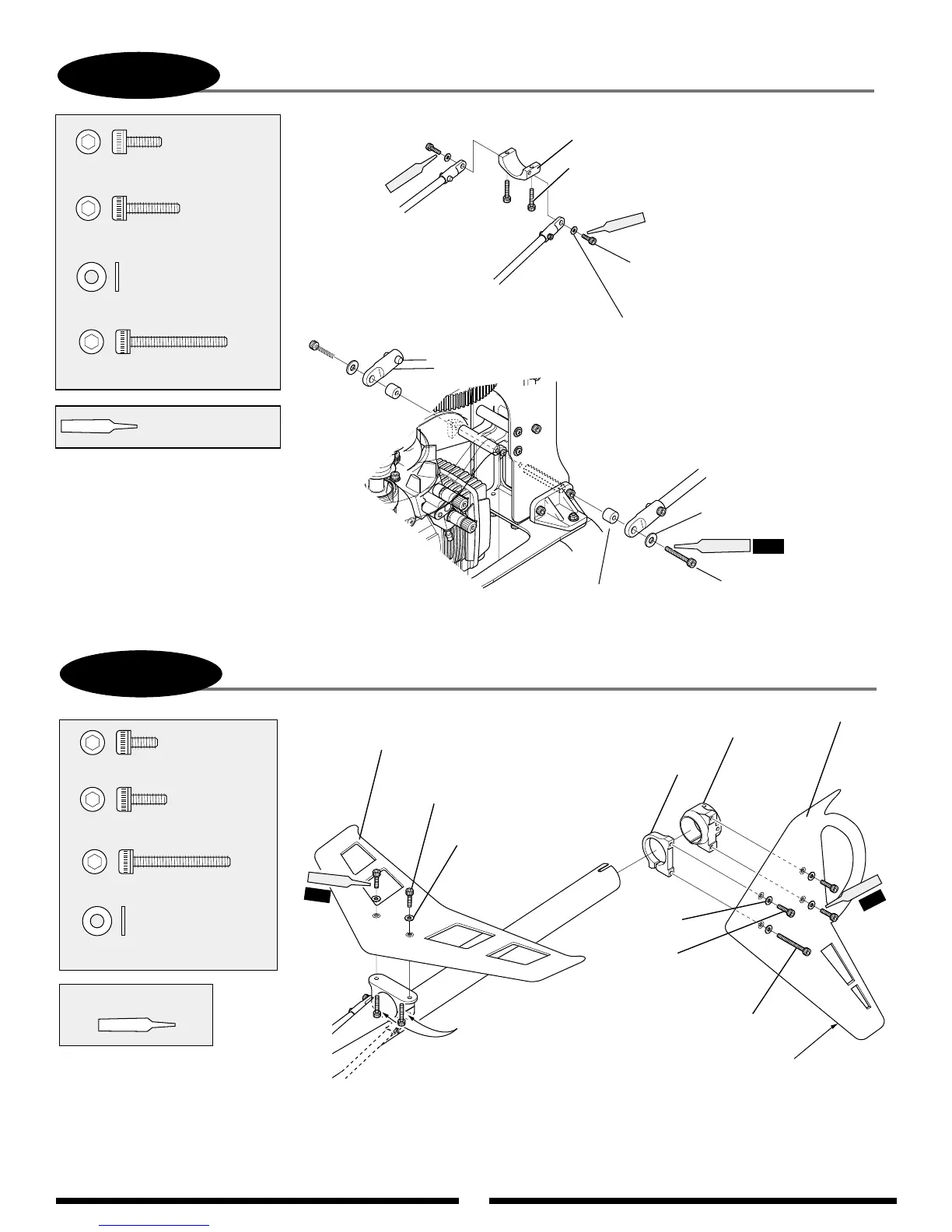

HORIZONTAL/VERTICAL FIN INSTALLATION
Flat Washer, 3 mm
........................ 6 pcs
Socket Head Bolt, 3 x 22 mm
1 pc
Socket Head Bolt, 3 x 8 mm
............ 3 pcs
Socket Head Bolt, 3 x 6 mm
................ 2 pcs
Use Red Threadlock
Flat Washer
3 mm (4 pcs)
Socket Head Bolt, 3 x 22 mm
* Do not tighten completely.
Socket Head Bolt
3 x 8 mm (3 pcs)
Tail Case Support A (Thick)
Keep vertical.
Tail Case Support B (Thin)
4pcs
R
ed
Socket Head
Bolt, 3 x 6 mm (2 pcs)
Carbon Horizontal Fin
Flat Washer
3 mm (2 pcs)
Position the
horizontal
fin so that it is
level to the building
surface (90° to the
main rotor shaft)
and tighten the 2 tail
support clamp bolts
left loose in Step 5-5.
2 pcs
Red
Carbon Vertical Fin
Socket Head Bolt, 3 x 12 mm
......... 2 pcs
Flat Washer, 3 mm
........................ 2 pcs
Socket Head Bolt, 3 x 8 mm
............. 2 pcs
Use Red Threadlock
5-7
TAIL BRACE INSTALLATION
Socket Head Bolt, 3 x 22 mm
2 pcs
Red
