JR Vigor CS User Manual

5-1

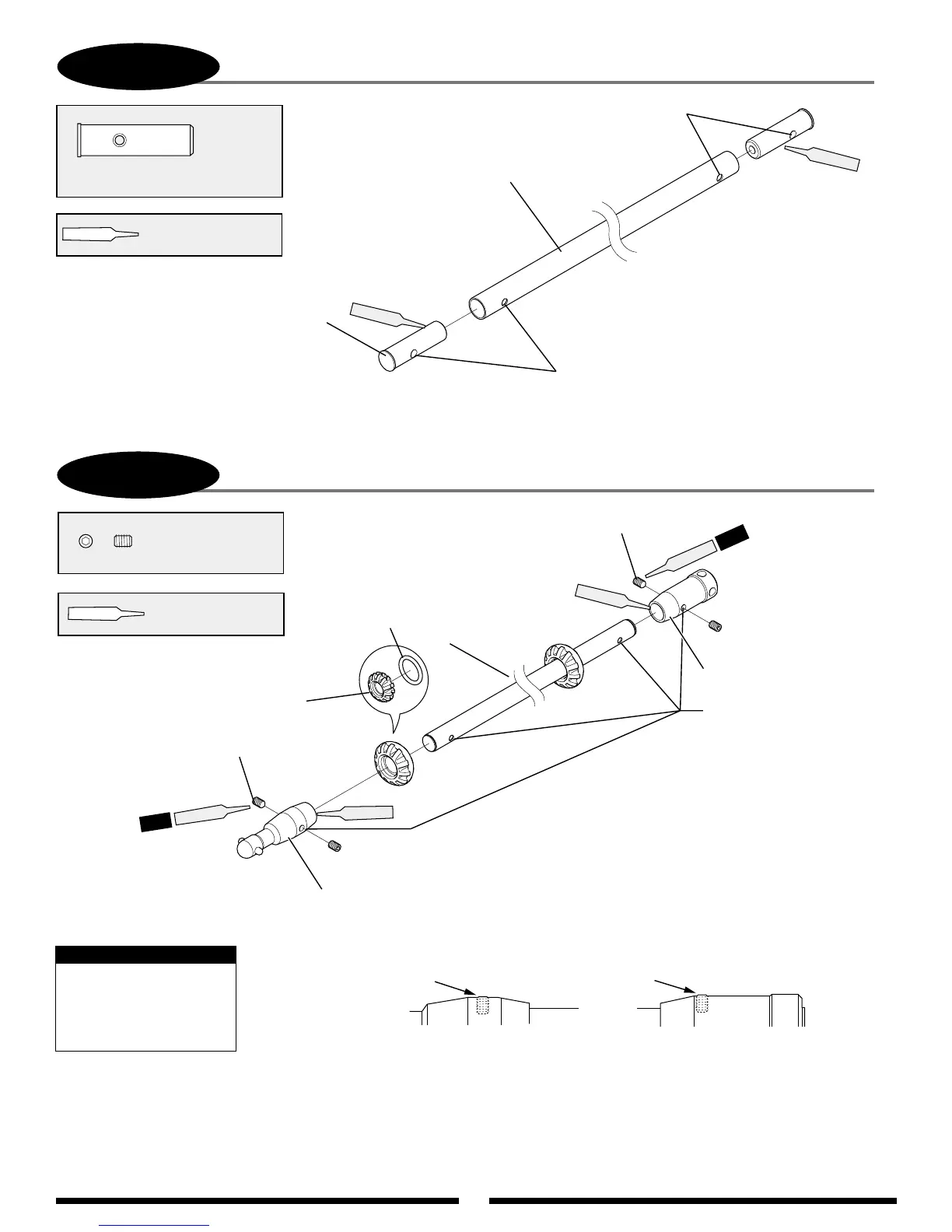

TAIL DRIVE SHAFT PREPARATION
Aluminum Drive Shaft, 794.5 mm
Aluminum Drive Pipe Insert
......... 2 pcs
Aluminum Drive Shaft Insert
Use Green
Threadlock
Green
Make sure that all holes are aligned.
Make sure that all holes are aligned.
Green
5-2
TAIL DRIVE SHAFT ASSEMBLY
..................... 4 pcs
Set Screw, 3 x 4 mm
Use Red & Green
Threadlock
Green
Green
Drive Shaft
GuideBearing
(2 pcs)
Aluminum Drive Joint, Front
Set Screw, 3 x 4 mm (2 pcs)
O-ring
13.5 x 2.5 (2 pcs)
Set Screw, 3 x 4 mm (2 pcs)
Make sure that all holes
are aligned.
Aluminum Drive
Joint, Rear
R
ed
2 pcs
2 pcs
Red
Set Screw, 3 x 4 mm
Set Screw, 3 x 4 mm
When secured, the 4 mm
set screws should be
nearly flush with the
outside surface.
Note:
30
