45
(Right) (PITCH)
(Right) (RUDDER)
(Right) (THROTTLE)
(Front) (ELEVATOR)
(Left) (AILERON)
The JR
®
120°/140° CCPM system requires the use of three servos to operate, aileron, elevator, and Aux 1(Pitch). The labeling of
these servos can become quite confusing because with the CCPM function; the three servos no longer work independently, but rather
as a team, and their functions are now combined. For this reason, we will refer to the three servos in the following manner:
Elevator Servo: We will refer to this servo as the “Top” servo. The channel number for this servo when using a JR radio is CH3.
Aileron Servo: We will refer to this servo as the “Right Front” servo. The channel number for this servo when using a JR radio is CH2.
Aux 1 (Pitch) Servo: We will refer to this servo as the “Left Front” servo. The channel number for this servo when using a JR radio is CH6.
Please refer to the CCPM connections chart below for clarification. For non-JR radios, please consult your radio instructions for
proper connection.

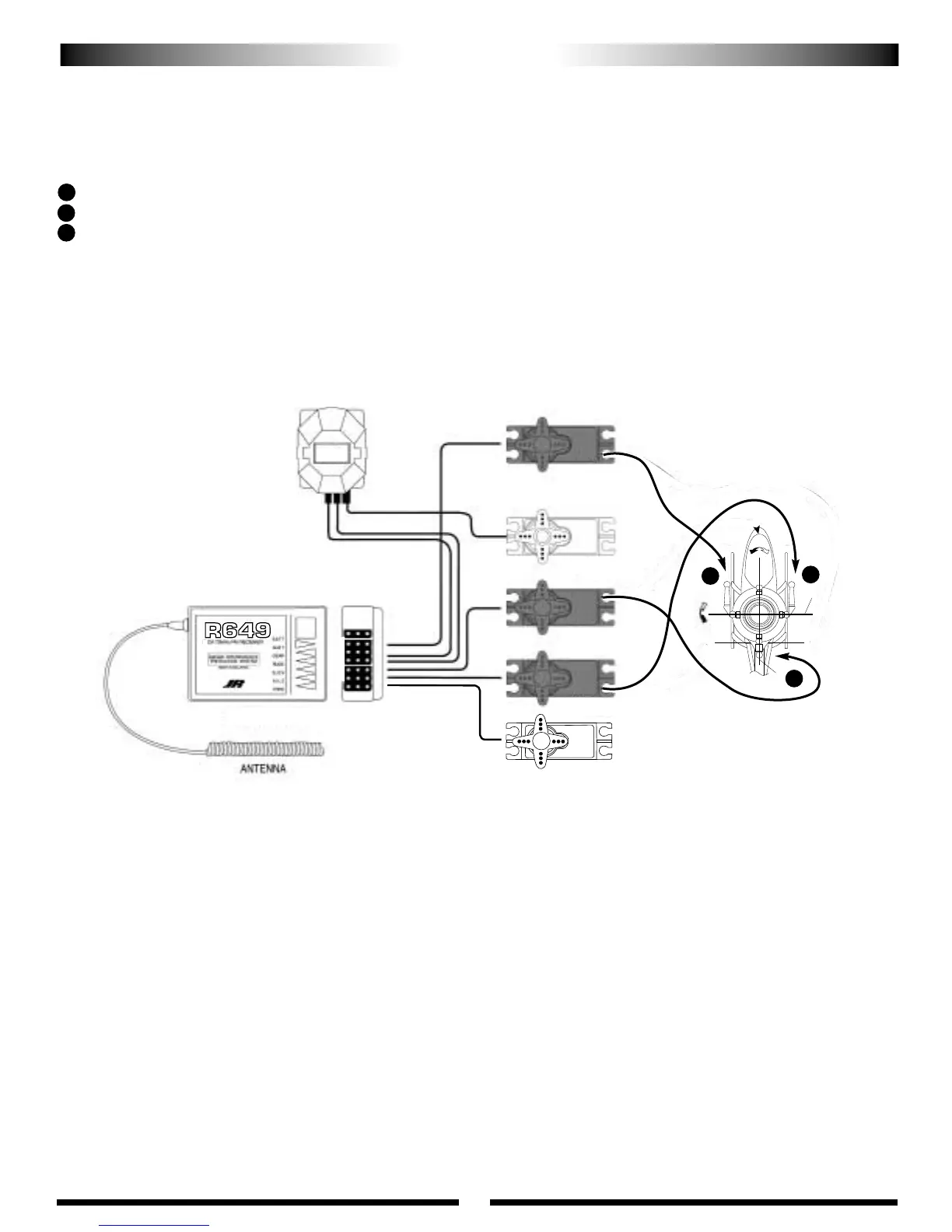

C. CCPM SERVO CONNECTIONS
IMPORTANT CCPM PROGRAMMING DOS AND DON’TS (CONTINUED)
G5000T GYRO (OPTIONAL)
(JRPG5000T)
R-649 RECEIVER
G5000T
C
A
B
C
A
B
