JRC JMA-5212-4/6 Service Manual

4-47
Remove

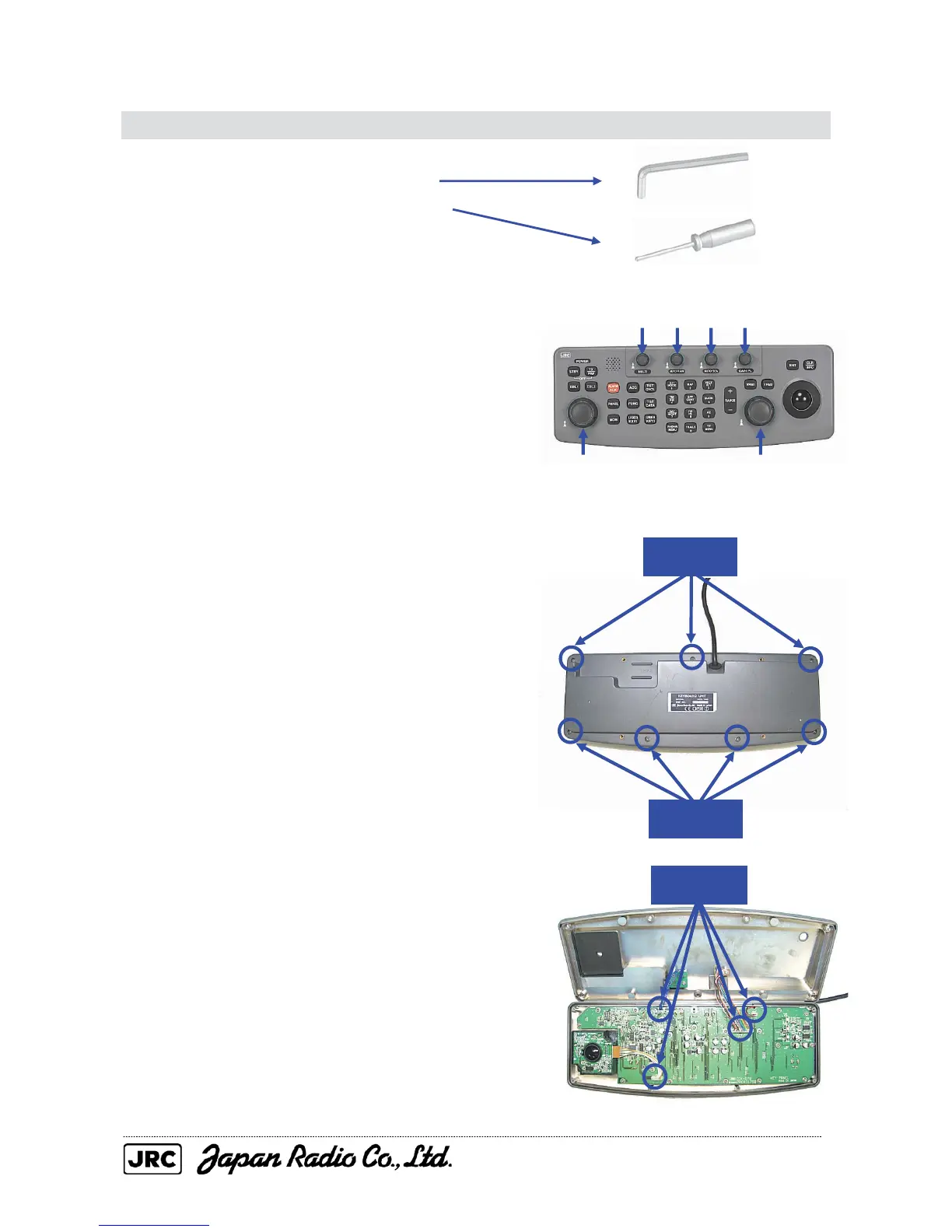

4.2.9. Operation Circuit CCK-979 for the Standard Operation Unit
[Required tools]
A hexagonal Allen wrench (1.5 mm)
A Phillips screwdriver for 3 mm screws
[Removal]
(1) Loosen the slotted-head screws that secure
the six controls, and remove the controls.
(Hexagonal Allen wrench: 1.5 mm)
(2) Remove the seven setscrews, and open
the rear cover.
(Phillips screwdriver for 3 mm screws)
(3) Disconnect the four connectors, and
remove the rear cover.
Remove
Remove
