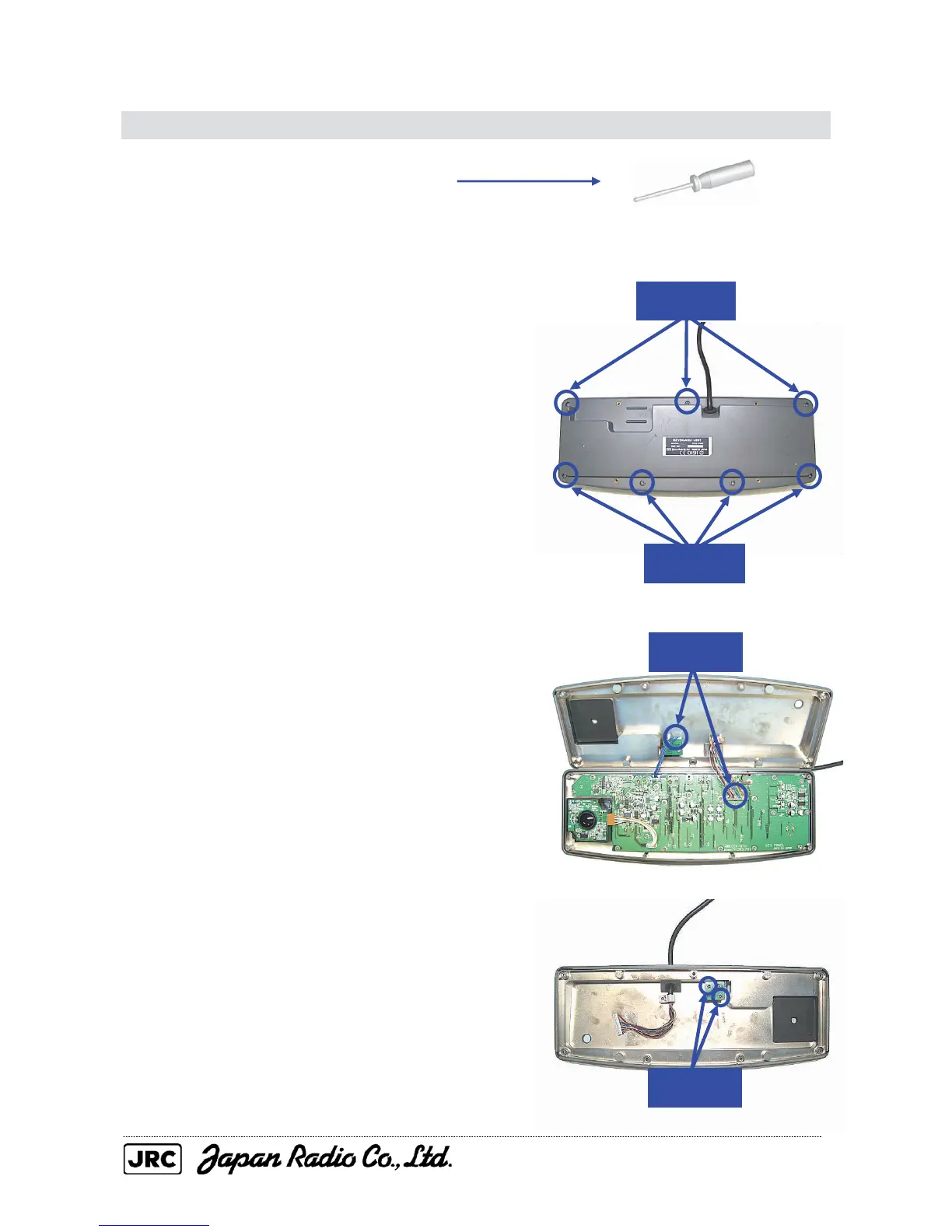

4-49
4.2.10.
PS2 Connector Circuit CQC-1204 for the S
tandard Operation Unit
[Required tools]
A
Phillips screwdriver for 3 mm screws
[Removal]
(1)
Remove the seven setscrews, and open
the rear cover
.
(Phillips scre
wdriver for 3 mm screws)
(2)
Disconnect the two connectors, and remove
the rear cover
.
(3)
Remove the 2 setscrews, and replace
the PS2 connector circuit.
(Phillips scre
wdriver for 3 mm screws)
Remove
Remove
Remove
Remove
104
