4-41

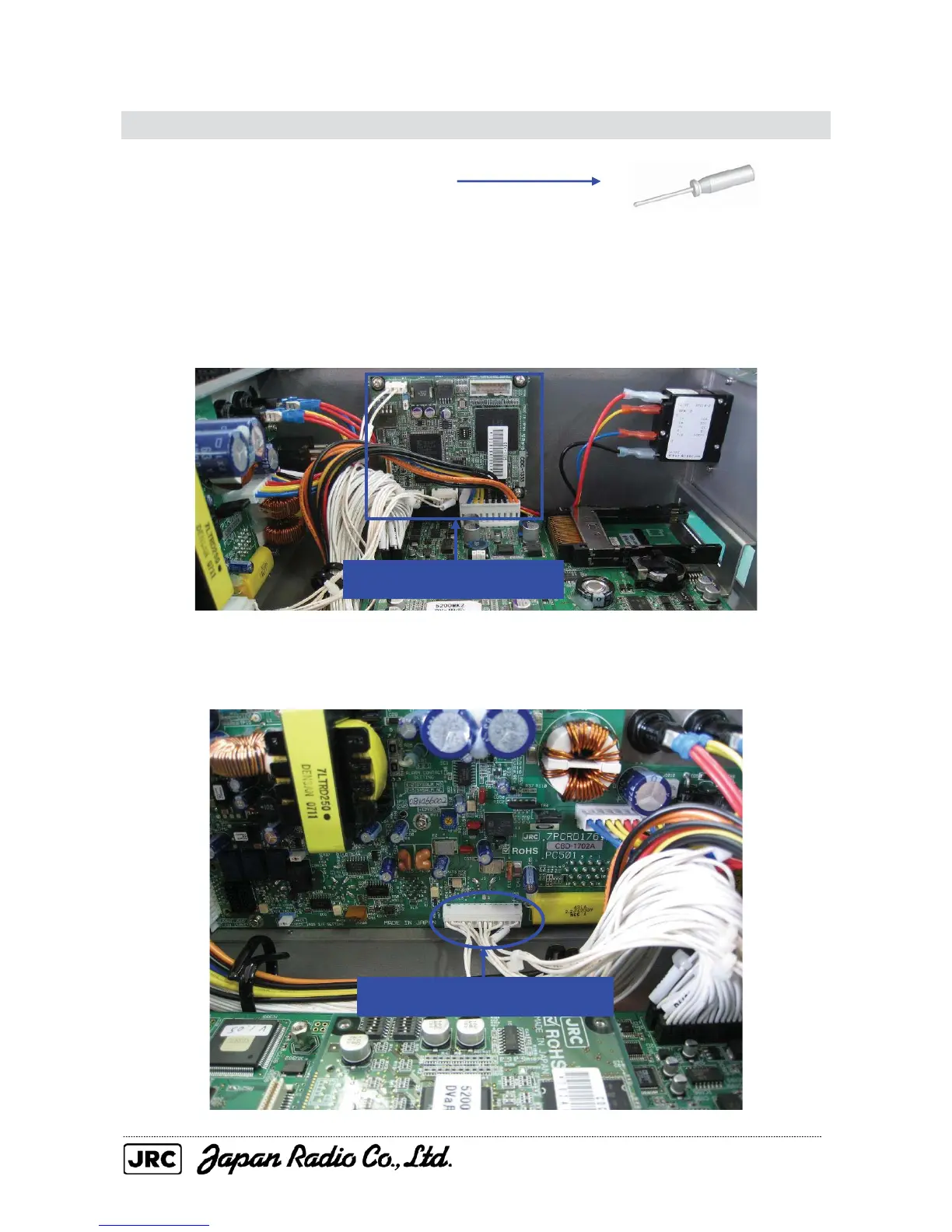

4.2.6.
AIS Processing Circuit NQA-2155
[Required tools]
A
Phillips screwdriver for 3 mm screws
[Removal]
(1)
Remove the top cover according to Section 4.2.2.
(2)
The
AIS processing circuit can be seen on the radar processing circuit.
(3)
The AIS circuit and power circuit are connected with connector-attached cables.
Disconnect the
connector from the power circuit.
AIS processing circuit
Disconnect the connector
.
96
98
