4-34
4.2.2.

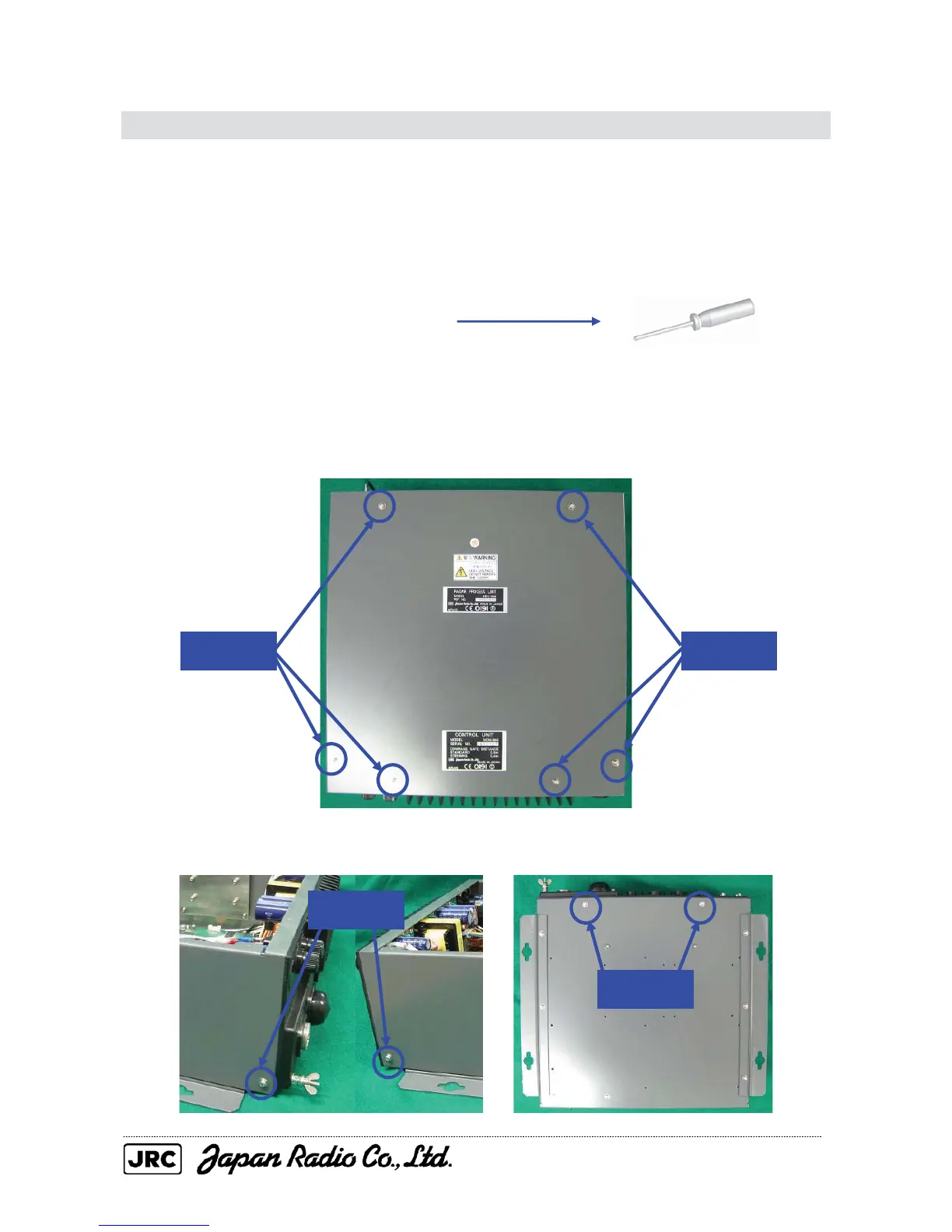

Power Supply Unit NBD-866A
[Note]
Before the power supply unit can be replaced, the power connectors of the processor unit must
be disconnected.
[Required tools]
A
Phillips screwdriver for 3 mm screws
[Removal]
(1)
Remove the six screws to remove the top cover
.
(Phillips scre
wdriver for 3 mm screws)
(2)
Remove the screws from both sides and the bottom of the power supply unit.
(Phillips scre
wdriver for 3 mm screws)
Remove
Remove
Remove
Remove
89
91
