4-15

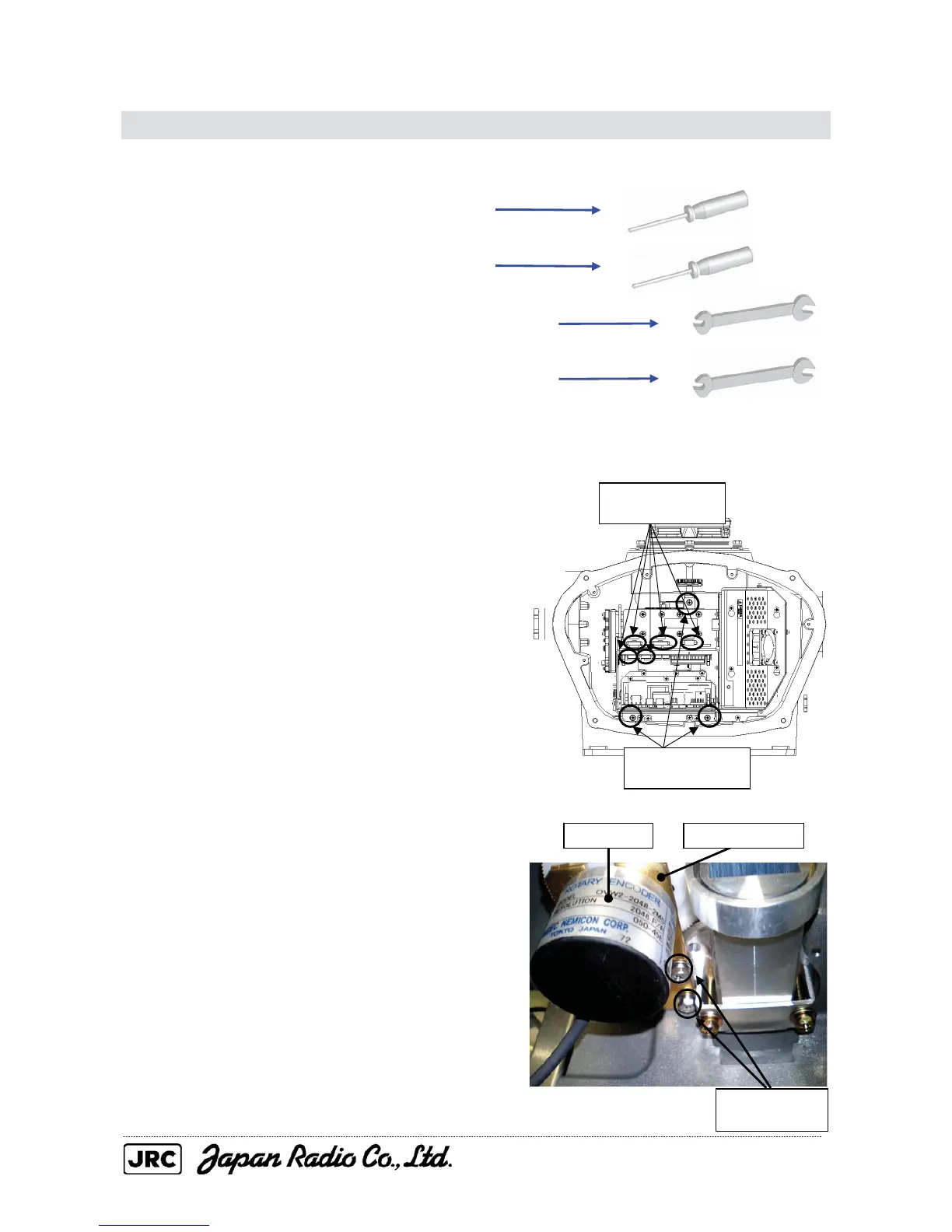

4.1.10. Encoder replacement / NKE-2254
[Required tools]
• A Phillips screwdriver for 4 mm screws
• A Phillips screwdriver for 5 mm screws
• A wrench (width across flats 7 mm for M4 bolts)
• A wrench (width across flats 8 mm for M6 bolts)
• Tools for removing the scanner unit covers (See Section 4.1.2)
[Replacement procedure]
(1) Remove the cover on the right (starboard)
side (see Section 4.1.2), remove the cables
connected to the transmitter-receiver unit
and the screws (three M5 screws) holding
the transmitter-receiver unit in place, and
remove the transmitter-receiver unit.
(2) Loosen the screws (two M4 screws) and
remove the encoder together with the metal
fitting.
Remove the five
cables.
Remove the three
screws.
Encoder Metal fittin
To Next Page
