JRC JMA-5212-4/6 Service Manual

4-45

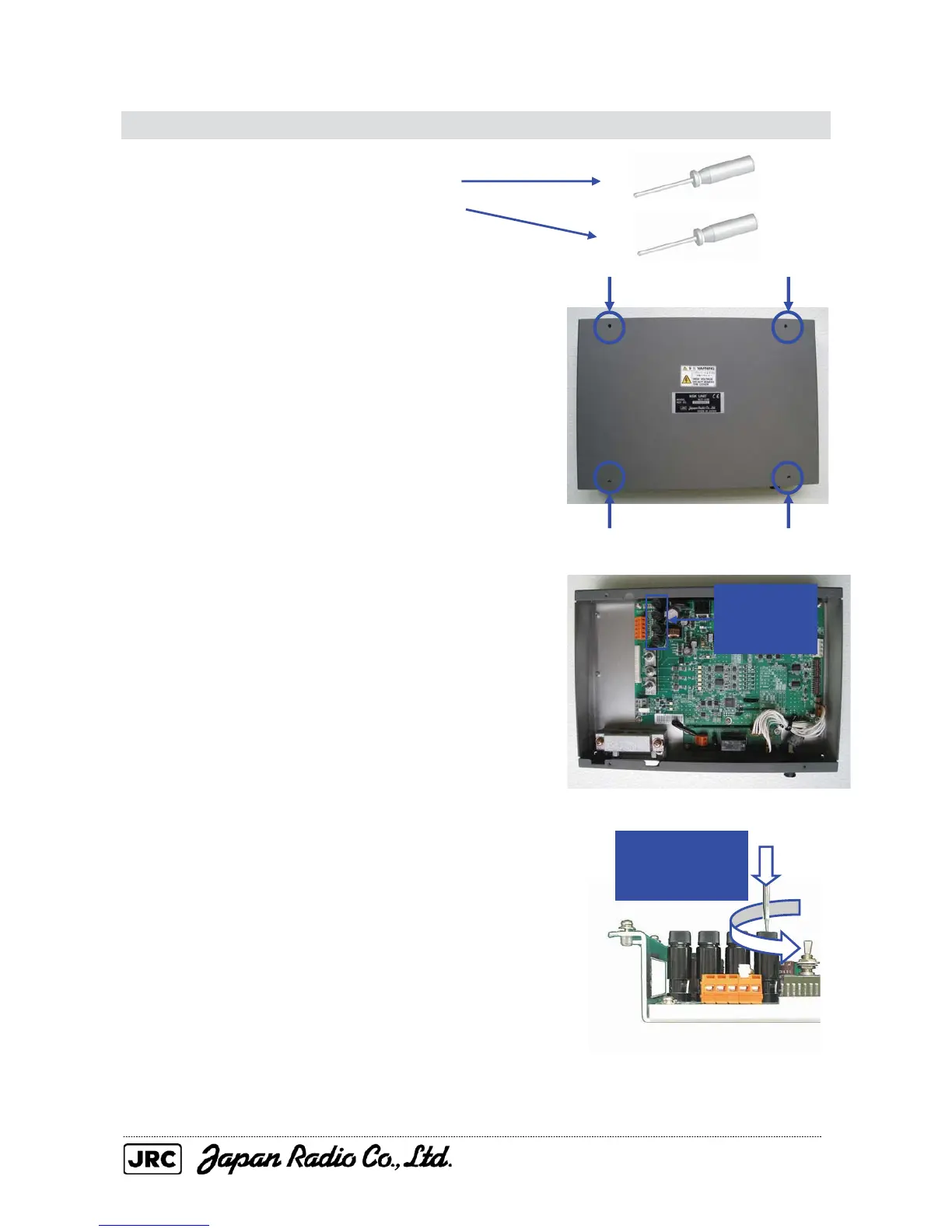

4.2.8. GYRO I/F Circuit Fuses
[Required tools]
A Phillips screwdriver for 3 mm screws
A standard screwdriver for 3 mm screws
[Removal]
(1) Remove the ten screws (4: upper, 3: right side,
and 3: left side) from the processor unit cover,
and remove it.
(Phillips screwdriver for 3 mm screws)
(2) The four fuse holders placed in a line can
be seen.
(3) To uncap a fuse holder, turn the standard
screwdriver while pushing against the
holder cap.
(Standard screwdriver for 3 mm screws)
Fuse
holder
Push and
turn
