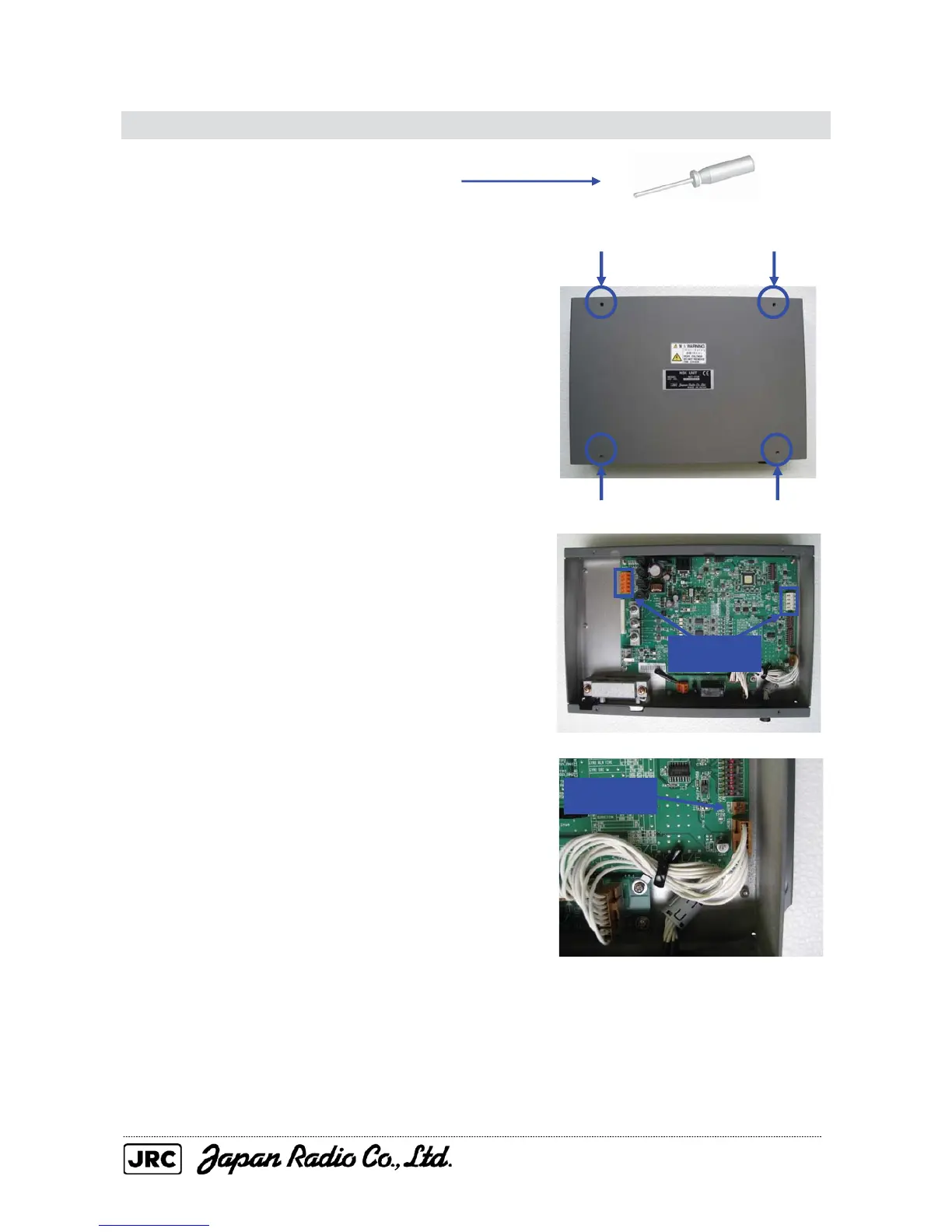

4-43
4.2.7.
GYRO I/F Circuit CMJ-304E
[Required tools]
A
Phillips screwdriver for 3 mm screws
[Removal]
(1)
Remove the four screws that secure the NSK Unit
NCT
-4106A
cover
.
(Phillips scre
wdriver for 3 mm screws)
(2)
Disconnect the gyro/log cables.
(3)
Detach the connector that is attached to the
GYRO•LOG I/F circuit.
Remove
Remove
98
100
