4.1.14. Magnetron Replacement for the NKE-2103
[Required tools]
• A Phillips screwdriver for 4 mm screws
• A Phillips screwdriver for 5 mm screws
• Tools for removing the scanner unit covers (See Section 4.1.2)
[Replacement procedure]

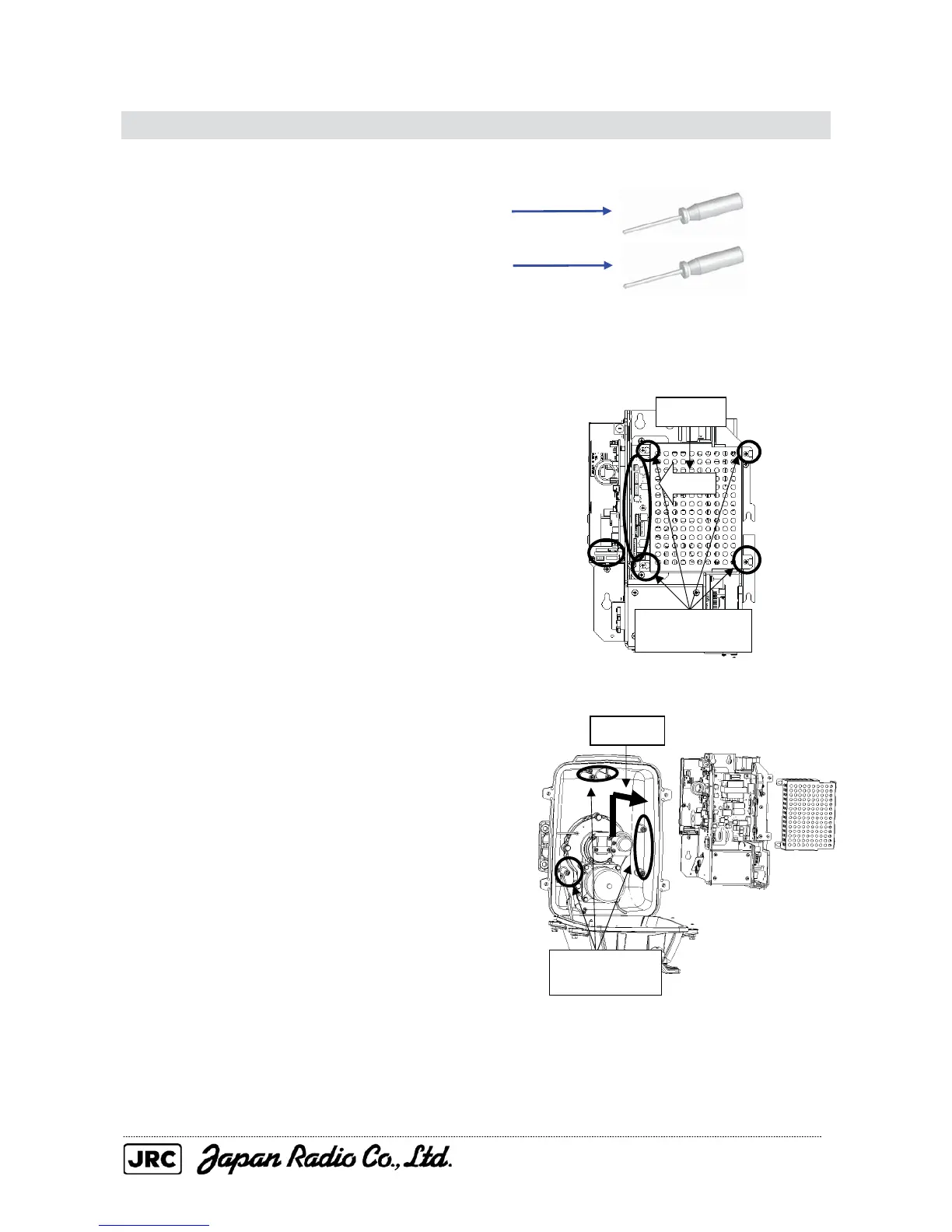

(1) Open the top cover (see Section 4.1.2),
loosen the four screws (M4), remove the
transmitter-receiver unit cover, and disconnect
the ten cables from the transmitter-receiver
unit. The transmitter-receiver unit cover
can be removed by sliding it.
(2) Loosen the five bolts (M5), and remove
the transmitter-receiver unit. The transmitter-
receiver unit can be removed by sliding it
upward.
Loosen the four
screws.
Slide
Loosen the five
bolts.
Slide
