4.2.3. Radar Processing Circuit CDC-1350
[Note]
Save necessary setup data onto a memory card before starting the replacement. Take notes of the
transmission time and operating time of the scanner unit.
[Required tools]
A socket wrench for 5.5 mm bolts
A Phillips screwdriver for 3 mm screws
[Removal]
(1) Remove the top cover according to Section 4.2.2.
(2) If ARPA and AIS processing circuits are installed, remove them according to Sections 4.2.5 and
4.2.6.

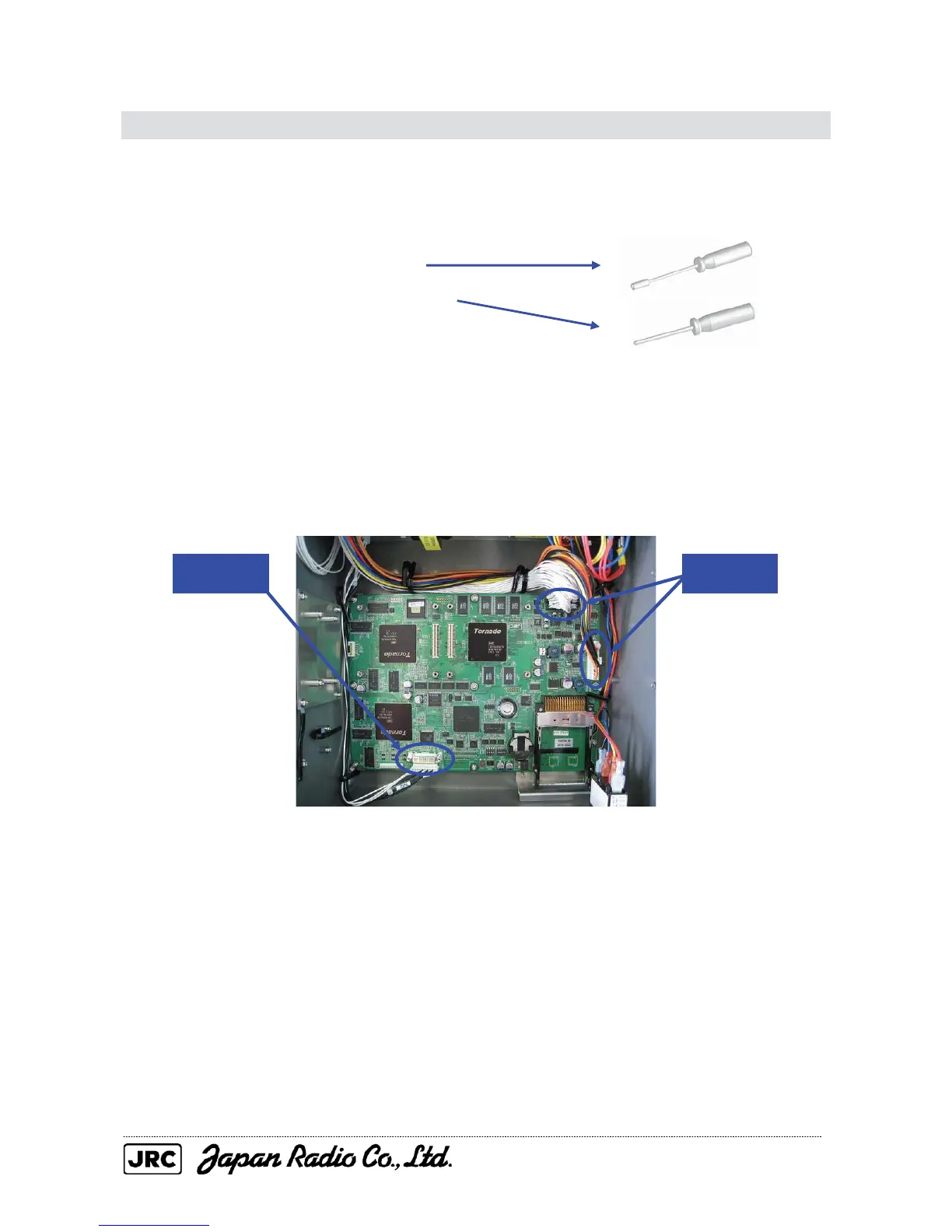

(3) Disconnect the four connectors from the radar processing circuit.
Remove Remove
